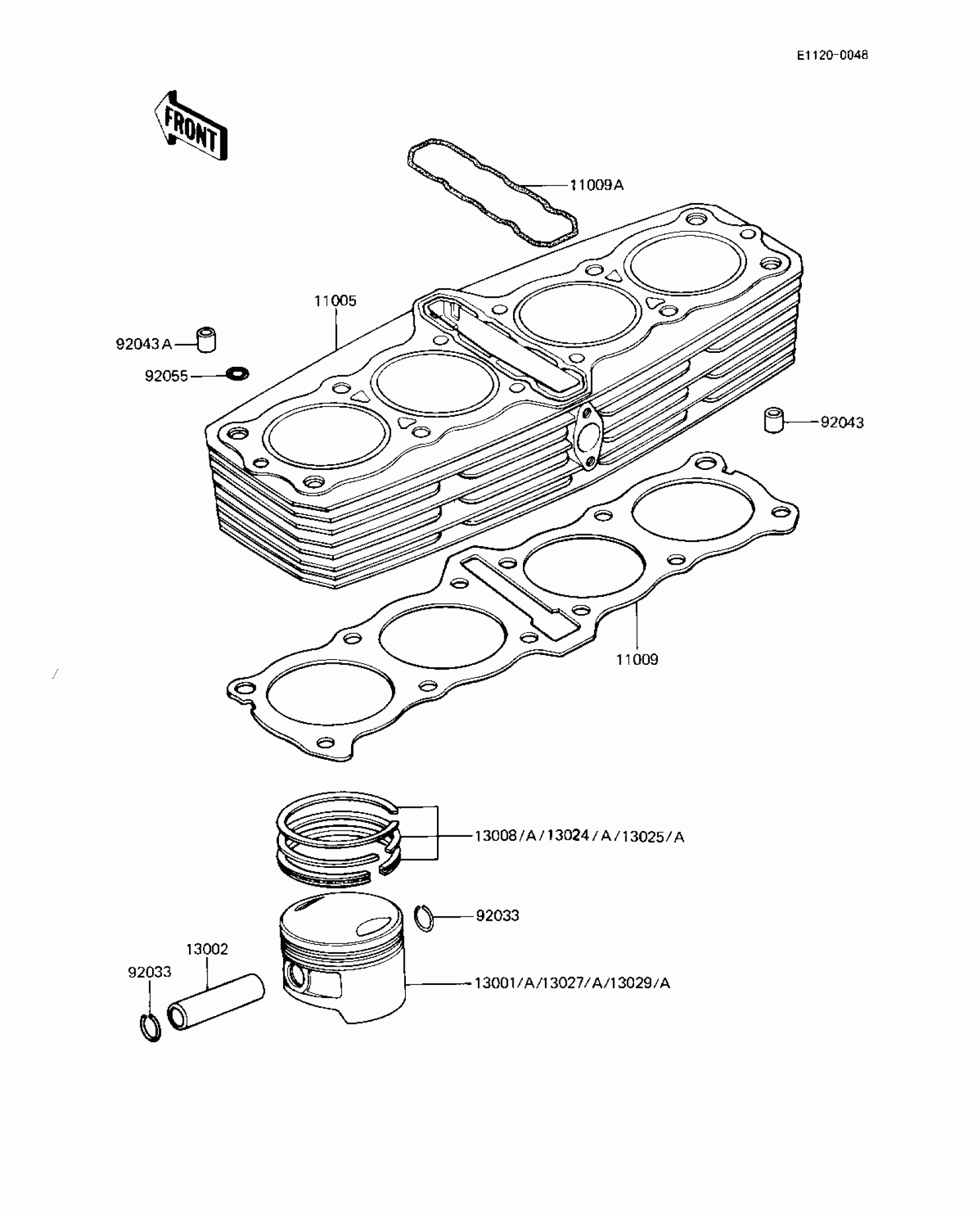

Kawasaki Eddie Lawson Replica CYLINDER/PISTONS Diagram

Description

Price

11005

CYLINDER-ENGINE,BLACK

11005-1323

Unavailable

11009

GASKET,CYLINDER BASE

11060-1067

Unavailable

11009A

GASKET,CYLINDER

11009-1208

$83.66

13001A

PISTON-ENGINE,STD

13001-1119

Unavailable

13002

PIN-PISTON

13002-1013

$5.04

13008A

RING-SET-PISTON,STD

13008-5056

$76.88

13024A

RING-SET-PISTON LL,O/S 1.00

13024-5024

$78.89

13025A

RING-SET-PISTON L,O/S 0.50

13025-5024

$90.07

13027A

PISTON-ENGINE LL,O/S 1.00

13027-1056

$125.50

13029A

PISTON-ENGINE L,O/S 0.50

13029-1058

$125.50

92033

RING-SNAP

92033-1054

$1.76

92043

PIN,11X14X12.3

92043-1266

$0.86

92043A

PIN,DOWEL,10X14

92043-1037

$0.66

92055

RING-O,OD=18.5

92055-1148

$11.31
