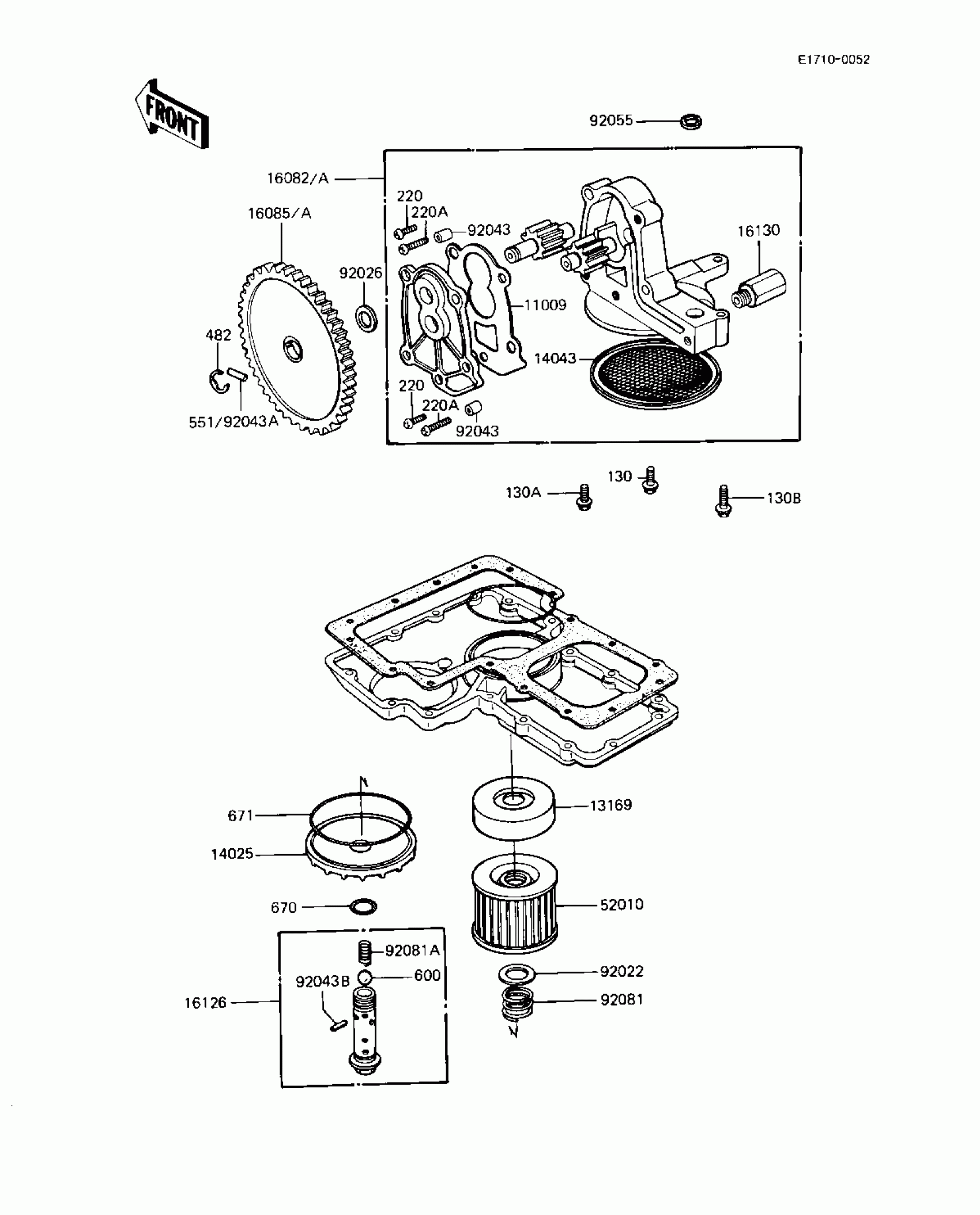

Kawasaki Eddie Lawson Replica OIL PUMP/OIL FILTER Diagram

Description

Price

11009

GASKET,OIL PUMP

11009-1029

Unavailable

13169

PLATE,OIL FILTER

13169-1313

$10.25

14025

COVER,OIL FILTER

16101-004

$39.50

14043

FILTER,OIL PUMP

16111-004

$45.22

16082A

PUMP-ASSY-OIL

16082-1031

Unavailable

16085A

GEAR,OIL PUMP,49T

16085-1038

$123.56

16126

VALVE,OIL FILTER

16126-1108

$37.32

16130

VALVE-ASSY-RELIEF

16130-1001

$41.95

52010

ELEMENT-OIL FILTER

16099-003

$9.28

92022

WASHER,20.5X30X1

92022-1012

$3.32

92026

WASHER,LOCK,16MM

92026-080

$4.17

92043

PIN,DOWEL,8X10

92043-1302

$0.84

92043A

PIN,DOWEL,4X14.8

92042-042

$4.08

92043B

PIN,SPRING,2X20

92043-111

$5.46

92055

RING-O,OD=18

92055-048

$3.66

92081

SPRING,OIL FILTER

92081-1018

$3.54

92081A

SPRING

92081-109

$10.85

130

BOLT,FLANGED,6X25

130G0625

Unavailable

130A

BOLT,FLANGED,6X35

130H0635

Unavailable

130B

BOLT-FLANGED,6X45

130G0645

Unavailable

220

SCREW PAN HEAD 6X18

220B0618

$2.79

220A

SCREW PAN HEAD 6X28

220B0628

Unavailable

482

CIRCLIP,7MM

482K7000

Unavailable

600

BALL-STEEL,3/8"

600A1200

$1.14

670

O RING,16MM

670B2016

$1.04

671

O RING,90MM

671B2590

$7.54
