1983 Kawasaki Eddie Lawson Replica Crankcase Bolt & Stud Pattern Diagram

← All diagrams

Find the part on the Crankcase Bolt & Stud Pattern diagram for your 1983 Kawasaki Eddie Lawson Replica, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

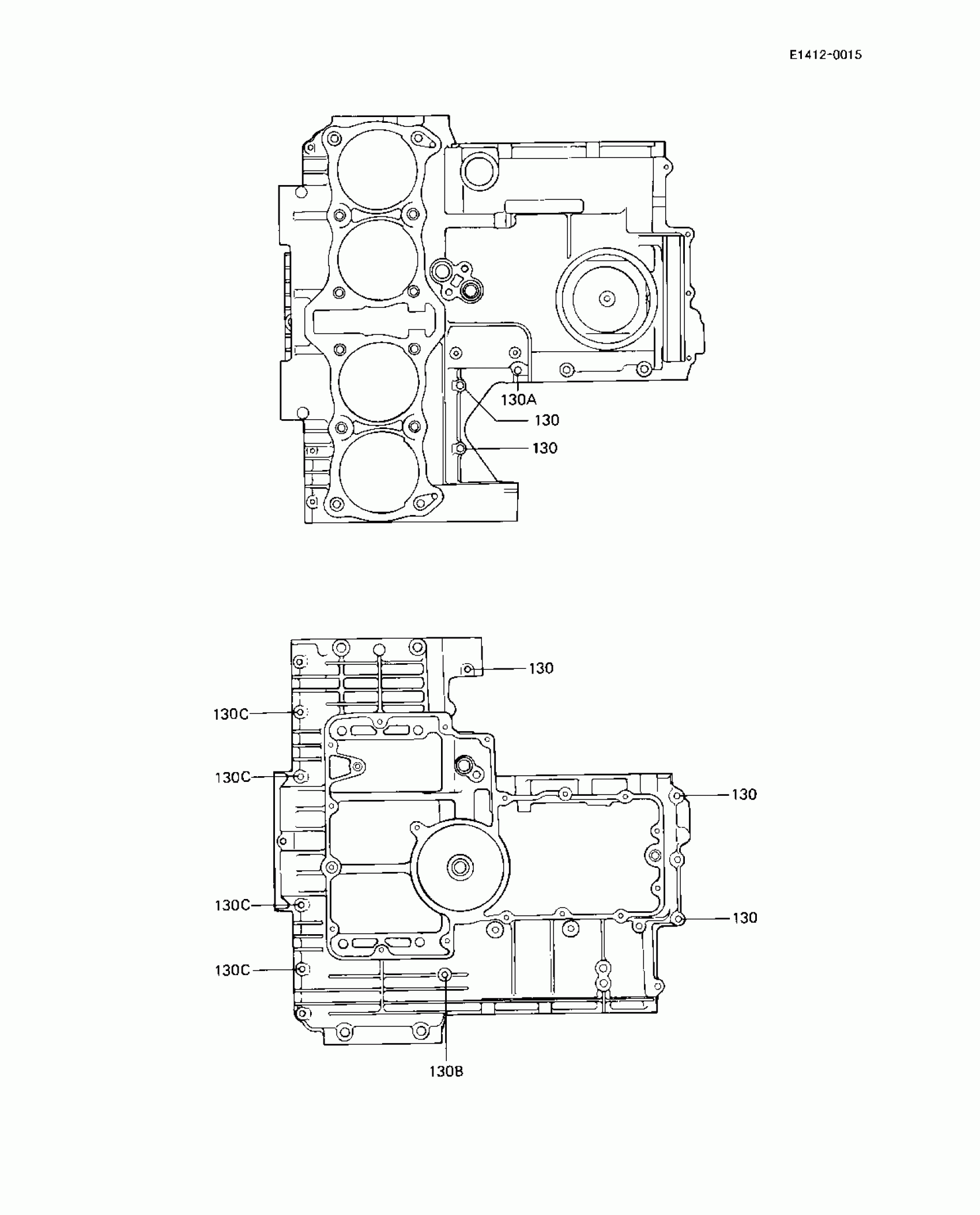

1983 Kawasaki Eddie Lawson Replica Crankcase Bolt & Stud Pattern Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X40

130G0640

1
Out of stock

130A

BOLT-FLANGED,6X50

130G0650

1
Out of stock

130B

BOLT-FLANGED,6X95

130G0695

1
Out of stock

130C

BOLT-FLANGED,6X40

130J0640

1
Out of stock
