1979 Yamaha EC540C Track Suspension 2 EC540D Diagram

← All diagrams

Find the part on the Track Suspension 2 EC540D diagram for your 1979 Yamaha EC540C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

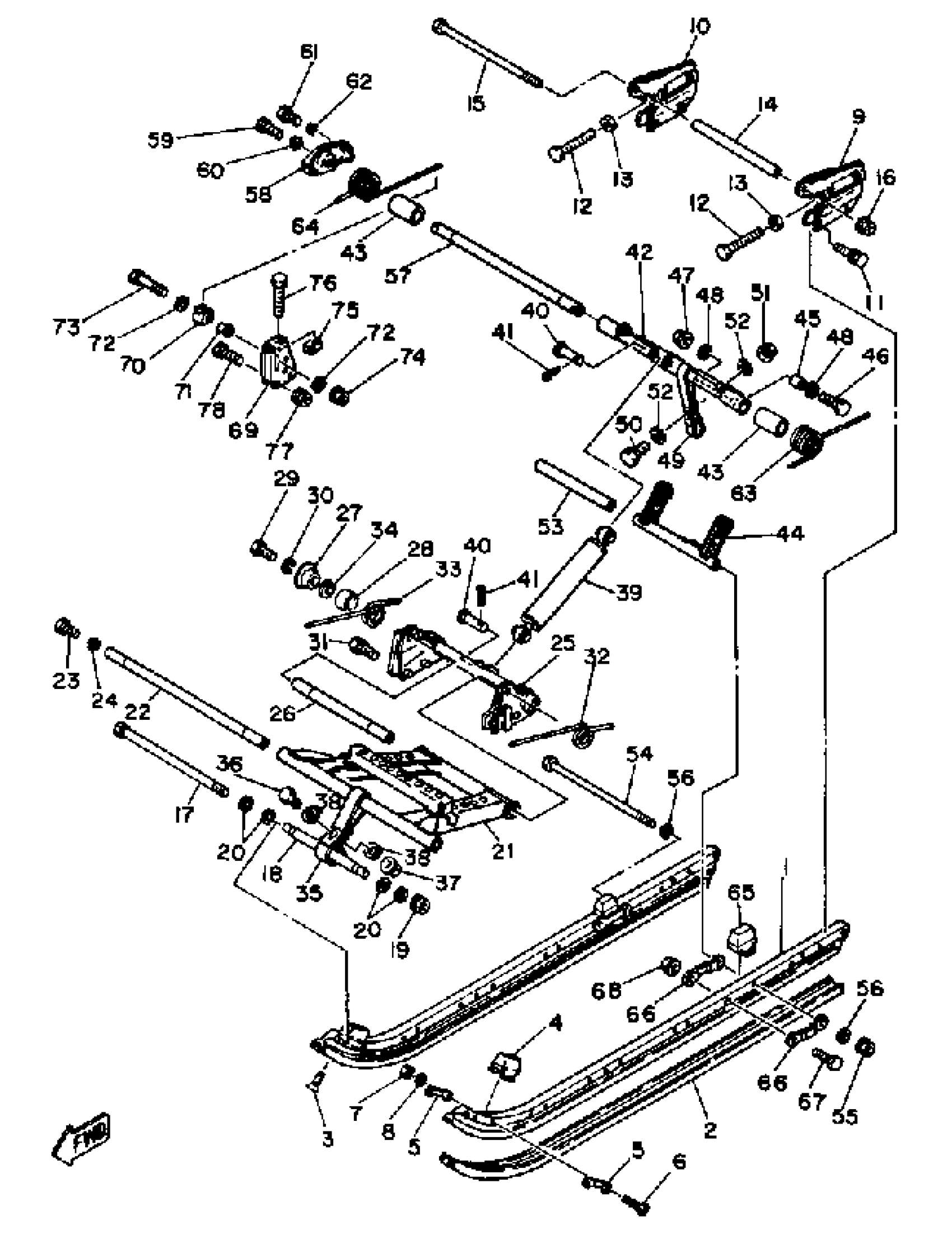

1979 Yamaha EC540C Track Suspension 2 EC540D Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME, SLIDING 1

8T1-47411-00-00

1
Out of stock

2

RUNNER, SLIDING 1

8H8-47421-10-XX

1
Out of stock

3

SCREW, CROSSRECESS (8G6)

90151-06005-00

1
Out of stock

4

DAMPER 2

8E3-47457-00-00

1
Out of stock

5

PLATE, DAMPER

885-47458-01-00

1
Out of stock

6

SCREW, PAN HEAD

98517-05030-00

1

$7.92

In stock

7

NUT (682)

95380-10700-00

1

$5.78

In stock

7

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

8

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

9

FRAME, SLIDING 2

8H8-47412-00-00

1
Out of stock

10

FRAME, SLIDING 3

8H8-47413-00-00

1
Out of stock

11

BOLT, WITH WASHER

90119-08008-00

1
Out of stock

12

BOLT, HEXAGON (899 TRACK)

90101-10293-00

1
Out of stock

13

NUT (682)

95380-10700-00

1

$5.78

In stock

14

COLLAR

90387-08709-00

1
Out of stock

15

BOLT,HEXAGON

97027-08270-00

1
Out of stock

16

NUT, NYLON

95717-08300-00

—

$2.57

In stock

17

BOLT, HEXAGON

97027-08285-00

1
Out of stock

18

BRACKET 1

(8H8-47415-00-00)

1
Out of stock

19

NUT, NYLON

95717-08300-00

—

$2.57

In stock

20

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

21

ARM, PIVOT 1

(8H8-47331-01-00)

1
Out of stock

22

SHAFT 1

8H8-47465-00-00

1
Out of stock

23

BOLT (8J7)

97013-10030-00

—

$8.91

In stock

24

WASHER, TTH

92907-10400-00

1
Out of stock

25

BRACKET 2

(8H8-47416-01-00)

1
Out of stock

26

SHAFT 3

(8H8-47485-00-00)

1
Out of stock

27

HOOK 1

8E7-47446-00-00

1
Out of stock

28

COLLAR

90387-30570-00

1
Out of stock

29

BOLT(N02)

97070-10035-00

—

$11.38

In stock

30

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

31

BOLT, WITH WASHER

90119-08008-00

1
Out of stock

32

SPRING, TORSION

90508-80403-00

1
Out of stock

33

SPRING, TORSION

90508-80402-00

1
Out of stock

34

WASHER, PLATE

(90201-10746-00)

1
Out of stock

35

STOPPER 1

8E3-47495-00-00

1
Out of stock

36

BOLT(3RV)

97014-06035-00

—

$1.54

In stock

37

NUT, NYLON

95707-06300-00

—

$3.20

In stock

38

UNAVAILABLE IN PRICE BOOK

90201-05747-00

1
Out of stock

39

SHOCK ABSORBER

8H8-47480-00-00

1
Out of stock

40

PIN, CLEVIS(8N0)

90240-12115-00

—

$16.35

In stock

41

PIN, COTTER

91490-30030-00

—

$7.15

In stock

42

ARM, PIVOT 2

(8H8-47332-00-00)

1
Out of stock

43

COLLAR

90387-30707-00

1
Out of stock

44

BRACKET 3

8H8-47417-00-00

1
Out of stock

45

COLLAR (8A5 SUSPENSION)

90387-08508-00

—

$5.77

In stock

46

BOLT, HEXAGON

97013-08050-00

—

$6.82

In stock

47

NUT, NYLON

95717-08300-00

—

$2.57

In stock

48

WASHER (1T1)

90201-08649-00

—
Out of stock

49

STOPPER 1

8E3-47495-00-00

1
Out of stock

50

BOLT(3RV)

97014-06035-00

—

$1.54

In stock

51

NUT, NYLON

95707-06300-00

—

$3.20

In stock

52

WASHER, PLATE

90201-06747-00

—

$6.17

In stock

53

COLLAR

(90387-08708-00)

1
Out of stock

54

BOLT, HEXAGON

97027-08285-00

1
Out of stock

55

NUT, NYLON

95717-08300-00

—

$2.57

In stock

56

WASHER (1T1)

90201-08649-00

—
Out of stock

57

SHAFT 2

8H8-47475-00-00

1
Out of stock

58

BRACKET, REAR 1

8G6-47426-00-00

1
Out of stock

59

BOLT (8J7)

97013-10030-00

—

$8.91

In stock

60

WASHER, TTH

92907-10400-00

1
Out of stock

61

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

62

WASHER (688)

92990-08400-00

1

$3.46

In stock

63

SPRING, TORSION 3 (8H8)

90508-99391-00

—

$31.29

In stock

64

SPRING, TORSION

90508-99392-00

1
Out of stock

65

DAMPER 2

8E3-47457-00-00

1
Out of stock

66

PLATE, DAMPER

8H8-47458-00-00

1
Out of stock

67

BOLT

97013-08035-00

—

$4.80

In stock

68

NUT, NYLON

95717-08300-00

—

$2.57

In stock

69

BRACKET 5

8H8-47463-00-00

1
Out of stock

70

HOOK 2

890-47447-00-00

—

$4.35

In stock

71

COLLAR

90387-082G1-00

1
Out of stock

72

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

73

BOLT

97021-08065-00

1
Out of stock

74

NUT, NYLON

95717-08300-00

—

$2.57

In stock

75

HOOK 1

8G6-47446-00-00

1
Out of stock

76

BOLT SET (865,9010110200)

99999-02604-00

1
Out of stock

77

NUT, NYLON

95717-08300-00

—

$2.57

In stock

78

BOLT

97014-08040-00

—

$5.26

In stock
