SHROUD - WINDSHIELD

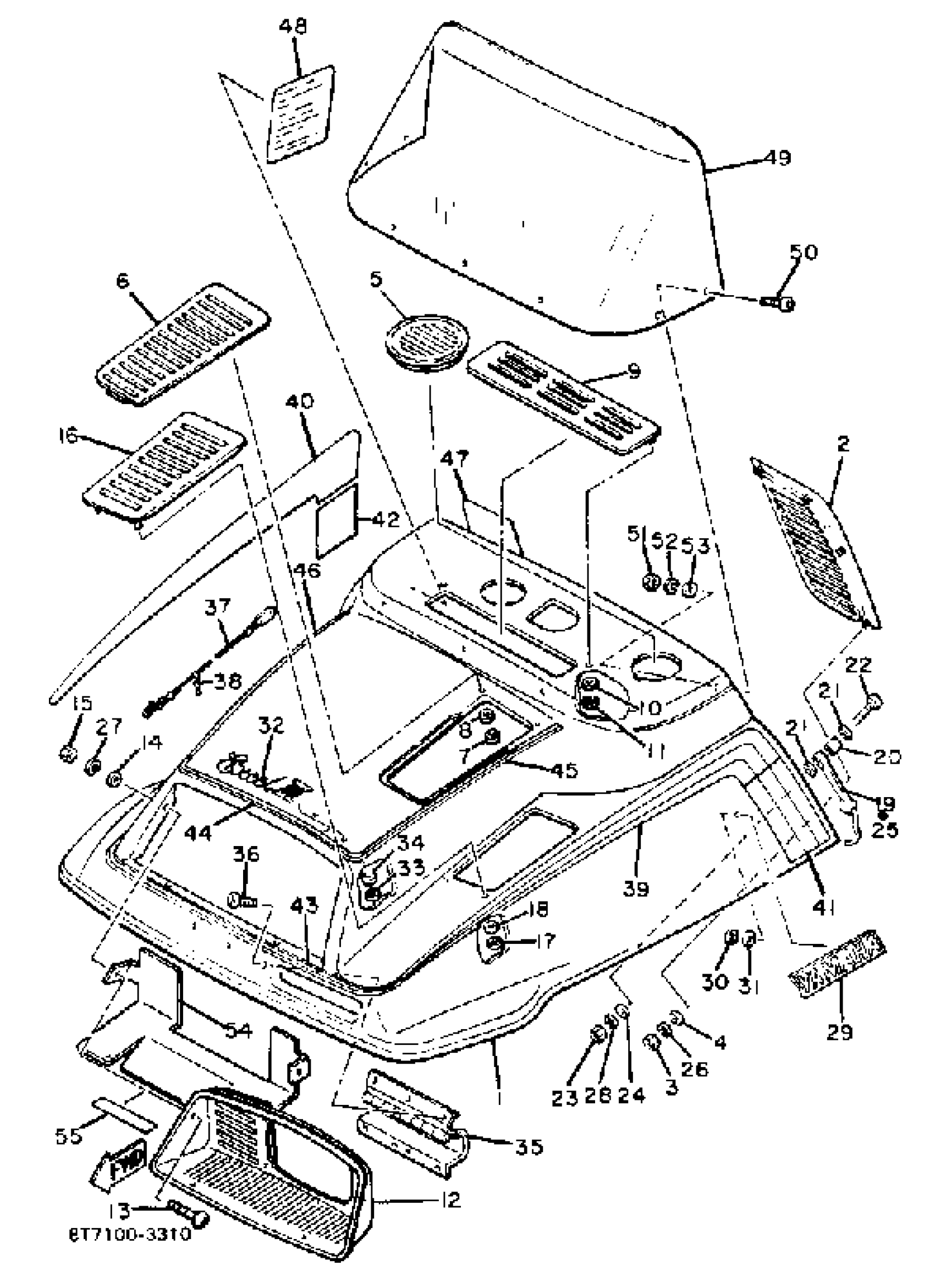

1983 Yamaha EC340G Shroud - Windshield Diagram
Find the part on the Shroud - Windshield diagram for your 1983 Yamaha EC340G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
SHROUD ASSEMBLY
8T7-W7711-00-00
2
LOUVER 1
8F3-77131-00-00
5
LOUVER 3
8A7-77133-30-00
6
LOUVER 4
8J4-77134-00-00
7
NUT 6504269100
90183-05003-00
8
EMBLEM 3
838-77143-00-00
9
LOUVER 5
8J4-77109-00-00
10
EMBLEM 3
838-77143-00-00
11
NUT 6504269100
90183-05003-00
12
BODY, HEADLIGHT
8F3-84311-00-00
16
LOUVER 6
8J4-77108-00-00
17
NUT 6504269100
90183-05003-00
18
EMBLEM 3
838-77143-00-00
19
LATCH ASSEMBLY
8G5-77170-00-00
20
SPACER
90560-07007-00
25
LATCH ASSEMBLY
8N8-77170-00-00
26
YBS67-5 WASHER, SPRING
92990-05100-00
27
YBS67-5 WASHER, SPRING
92990-05100-00
29
EMBLEM 1
8H8-77141-00-00
32
EMBLEM 2
8L6-77142-00-00
35
HINGE ASSEMBLY
8F3-77140-00-00
36
SCREW, BIND (705)
98980-06016-00
37
STOPPER, SHROUD
8G8-77118-00-00
39
ORNAMENT 1
8T7-77163-00-00
40
ORNAMENT 2
8T7-77164-00-00
41
ORNAMENT 3
8T7-77169-00-00
42
ORNAMENT 4
8T7-77113-00-00
43
STRIPE 1
8T7-77281-00-00
44
STRIPE 2
8T7-77282-00-00
45
STRIPE 3
8T7-77283-00-00
46
STRIPE 4
8T7-77284-00-00
47
LABEL, WARNING
8N4-77458-00-00
48
INDICATOR 3
8N5-77743-00-00
49
WINDSHIELD
8N5-77210-00-00
50
SCREW, BINDING (8J0)
90154-05005-00
52
YBS67-5 WASHER, SPRING
92990-05100-00
54
PROTECTOR
8T7-77373-00-00
55
LABEL, WARNING 2
8T7-77762-00-00
