1983 Yamaha EC340G OIL Tank Diagram

← All diagrams

Find the part on the OIL Tank diagram for your 1983 Yamaha EC340G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

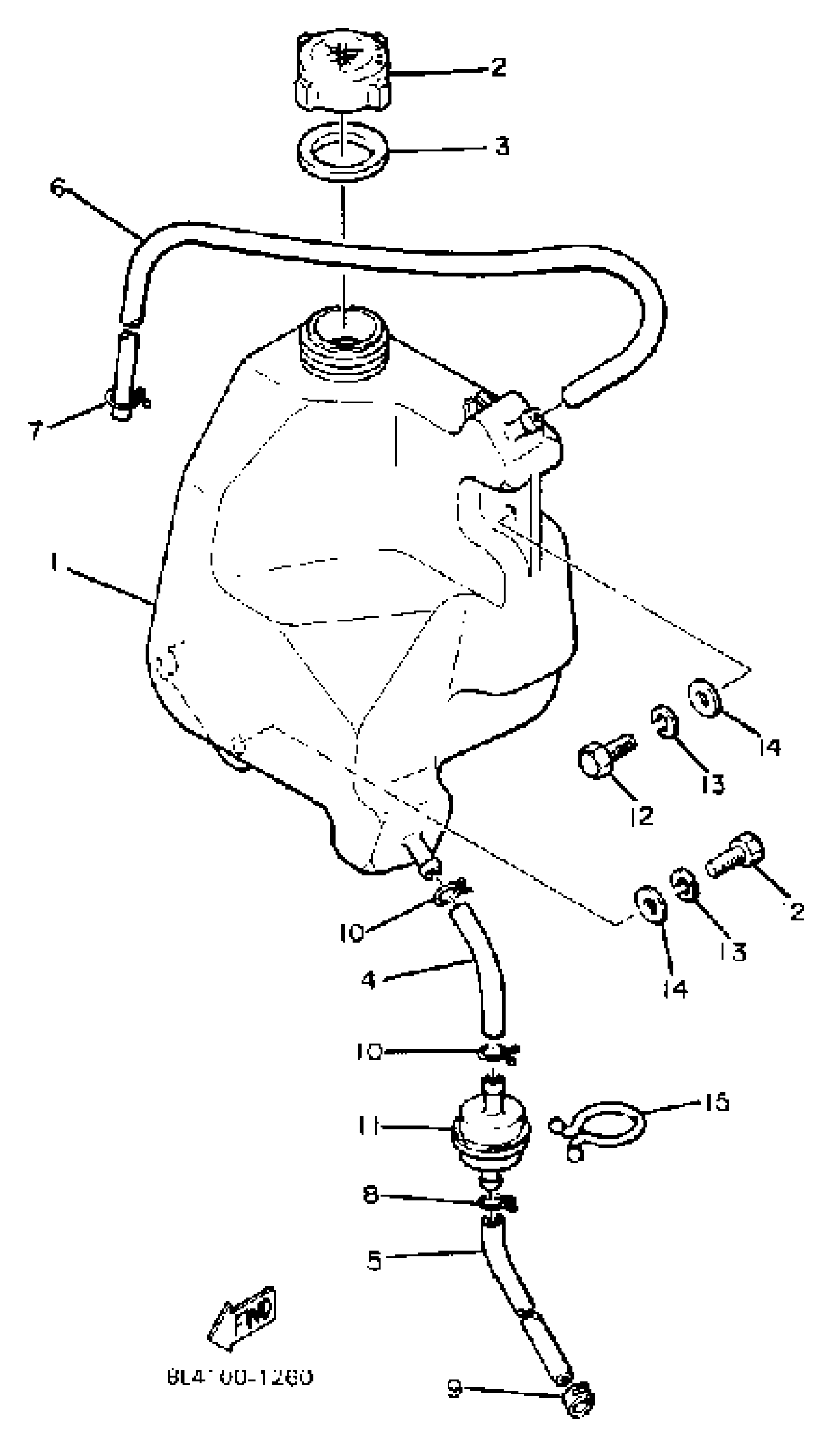

1983 Yamaha EC340G OIL Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, OIL

8G8-21751-00-00

1
Out of stock

2

BODY, CAP

8LU-21771-00-00

1

$25.12

In stock

3

GASKET, TANK (867)

90430-31003-00

1

$7.77

In stock

4

HOSE

91A30-07036-00

1
Out of stock

5

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

1

$8.80

In stock

6

HOSE

90446-09015-00

1
Out of stock

7

CLAMP

90464-25267-00

1

$5.62

In stock

8

CLIP (8L2)

90467-08017-00

1

$7.51

In stock

9

CLIP (8A1)

90467-09026-00

1

$2.72

In stock

10

CLIP (8J7)

90467-11009-00

1

$7.55

In stock

11

HOUSING STRAINER ASSY

8G8-13410-00-00

1

$22.78

In stock

12

BOLT, HEXAGON

97013-08020-00

1

$1.54

In stock

13

WASHER(JN5)

92907-08100-00

1

$5.98

In stock

14

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

15

CLAMP (8M1)

90464-30040-00

1

$7.45

In stock
