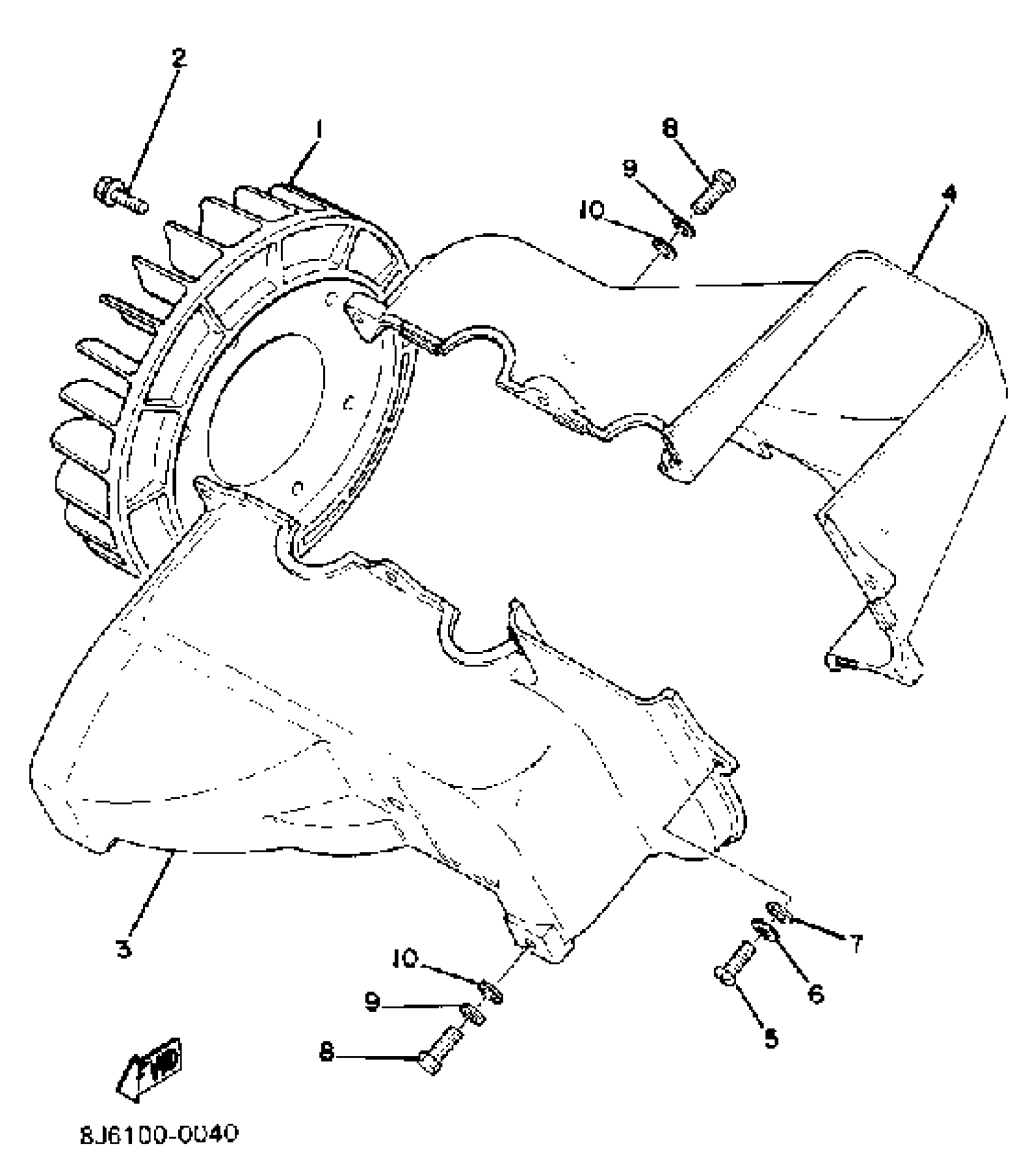

Yamaha EC340G 1983 AIR SHROUD - FAN Diagram

#

Description
Price

1

FAN

8G8-12611-01-00

Unavailable

2

BOLT, FLANGE

95817-06012-00

$1.40

3

AIR SHROUD, CYLINDER 1

8G8-12651-00-00

Unavailable

4

AIR SHROUD, CYLINDER 2

8G8-12652-00-00

Unavailable

5

SCREW, PAN HEAD(3TJ)

98507-06016-00

$2.27

6

WASHER, SPRING

92907-06100-00

$0.98

7

WASHER(6TA)

92907-06600-00

$0.73

8

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

9

WASHER, SPRING

92995-06100-00

$2.95

10

WASHER, PLATE 8221447500

90201-06057-00

$3.52
