1981 Yamaha EC340E Track Suspension 2 Diagram

← All diagrams

Find the part on the Track Suspension 2 diagram for your 1981 Yamaha EC340E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

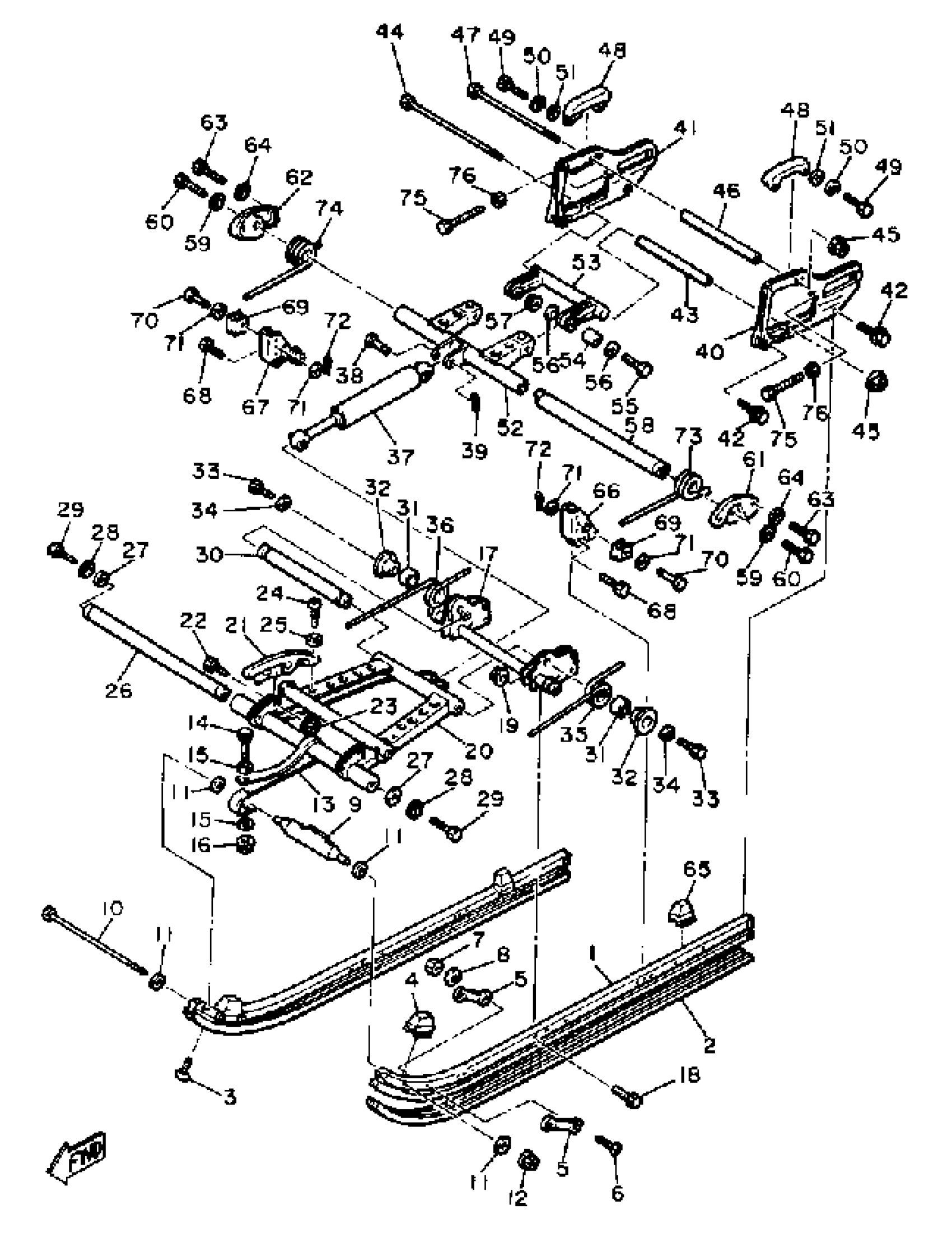

1981 Yamaha EC340E Track Suspension 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME, SLIDING 1

(8G8-47411-00-00)

1
Out of stock

2

1

$13.32

In stock

3

SCREW, FLAT

98707-06020-00

1

$6.69

In stock

4

DAMPER 1

888-47456-01-00

1

$8.78

In stock

5

PLATE, DAMPER

885-47458-01-00

1
Out of stock

6

SCREW, PAN HEAD

98517-05030-00

1

$7.92

In stock

7

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

8

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

9

BRACKET 1

899-47415-00-00

1
Out of stock

10

BOLT (8M8)

90101-08374-00

—
Out of stock

11

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

12

NUT, NYLON

95717-08300-00

1

$2.57

In stock

13

STOPPER 1

888-47495-02-00

—

$41.20

In stock

14

BOLT(3RV)

97014-06035-00

1

$1.54

In stock

15

WASHER, PLATE

90201-06747-00

1

$6.17

In stock

16

NUT, NYLON

95707-06300-00

—

$3.20

In stock

17

BRACKET 2

8L4-47416-00-00

1
Out of stock

18

BOLT(21W)

97017-06035-00

—

$2.91

In stock

19

NUT, NYLON

95707-06300-00

—

$3.20

In stock

20

ARM, PIVOT 1

8X0-47331-00-00

1
Out of stock

21

RUNNER, SLIDING 2

8G8-47422-00-00

—

$14.68

In stock

22

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

23

NUT, NYLON

95707-06300-00

—

$3.20

In stock

24

SCREW PAN HEAD

98580-06020-00

—

$5.10

In stock

25

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

26

SHAFT 1

8A5-47465-02-00

—

$46.62

In stock

27

SPACER

885-47341-00-00

1
Out of stock

28

WASHER, TTH

92907-10400-00

1
Out of stock

29

BOLT (8J7)

97013-10030-00

—

$8.91

In stock

30

SHAFT 3

8A5-47485-02-00

1
Out of stock

31

COLLAR

90387-30570-00

1
Out of stock

32

HOOK 1

8E7-47446-00-00

1
Out of stock

33

BOLT(N02)

97070-10035-00

—

$11.38

In stock

34

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

35

SPRING, TORSION

90508-70375-00

1
Out of stock

36

SPRING, TORSION

90508-70376-00

1
Out of stock

37

SHOCK ABSORBER

8E7-47480-01-00

—

$209.42

In stock

38

PIN, CLEVIS(8N0)

90240-12115-00

—

$16.35

In stock

39

PIN, COTTER

91490-30030-00

—

$7.15

In stock

40

FRAME, SLIDING 2

8E3-47412-00-00

—

$57.54

In stock

41

FRAME, SLIDING 3

8E3-47413-00-00

—

$60.97

In stock

42

BOLT, WITH WASHER

90119-08008-00

1
Out of stock

43

COLLAR (899 SUSPENSION)

90387-08496-00

—

$9.91

In stock

44

BOLT (8M8)

90101-08374-00

—
Out of stock

45

NUT, NYLON

95717-08300-00

1

$2.57

In stock

46

COLLAR (899 SUSPENSION)

90387-08497-00

—

$12.38

In stock

47

BOLT, HEXAGON

97027-08250-00

1
Out of stock

48

RUNNER, SLIDING

8E3-47422-00-00

—

$17.09

In stock

49

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

50

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

51

WASHER, PLATE

90201-06020-00

—

$6.28

In stock

52

ARM, PIVOT 2

8A5-47332-00-00

1
Out of stock

53

BRACKET 3

8A5-47417-00-00

—

$79.35

In stock

54

COLLAR (8A5 SUSPENSION)

90387-08508-00

—

$5.77

In stock

55

BOLT

97013-08045-00

—
Out of stock

56

WASHER (1T1)

90201-08649-00

—
Out of stock

57

NUT, NYLON

95717-08300-00

1

$2.57

In stock

58

SHAFT 2

8A5-47475-02-00

—

$27.91

In stock

59

WASHER, TTH

92907-10400-00

1
Out of stock

60

BOLT (8J7)

97013-10030-00

—

$8.91

In stock

61

BRACKET, REAR 1

8A5-47425-00-00

—

$21.54

In stock

62

BRACKET, REAR 1

8A5-47426-00-00

1
Out of stock

63

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

64

WASHER (688)

92990-08400-00

1

$3.46

In stock

65

DAMPER 2

885-47457-00-00

1
Out of stock

66

BRACKET 5

8L4-47463-00-00

1
Out of stock

67

BRACKET 6

8L4-47464-00-00

1
Out of stock

68

BOLT(21W)

97017-06035-00

—

$2.91

In stock

69

HOOK 2

890-47447-00-00

—

$4.35

In stock

70

PIN WITH HOLE (890)

90249-12113-00

—

$8.37

In stock

71

WASHER, PLATE

90201-12047-00

—

$7.54

In stock

72

PIN, COTTER

91490-30030-00

—

$7.15

In stock

73

SPRING, TORSION 3(8E7)

90508-99331-00

—

$38.86

In stock

74

SPRING, TORSION 4(8E7)

90508-99332-00

—

$38.86

In stock

75

BOLT, HEXAGON (8E3)

90101-10314-00

—

$6.29

In stock

76

NUT (682)

95380-10700-00

1

$5.78

In stock
