1981 Yamaha EC340E Pump Drive - Gear Diagram

← All diagrams

Find the part on the Pump Drive - Gear diagram for your 1981 Yamaha EC340E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

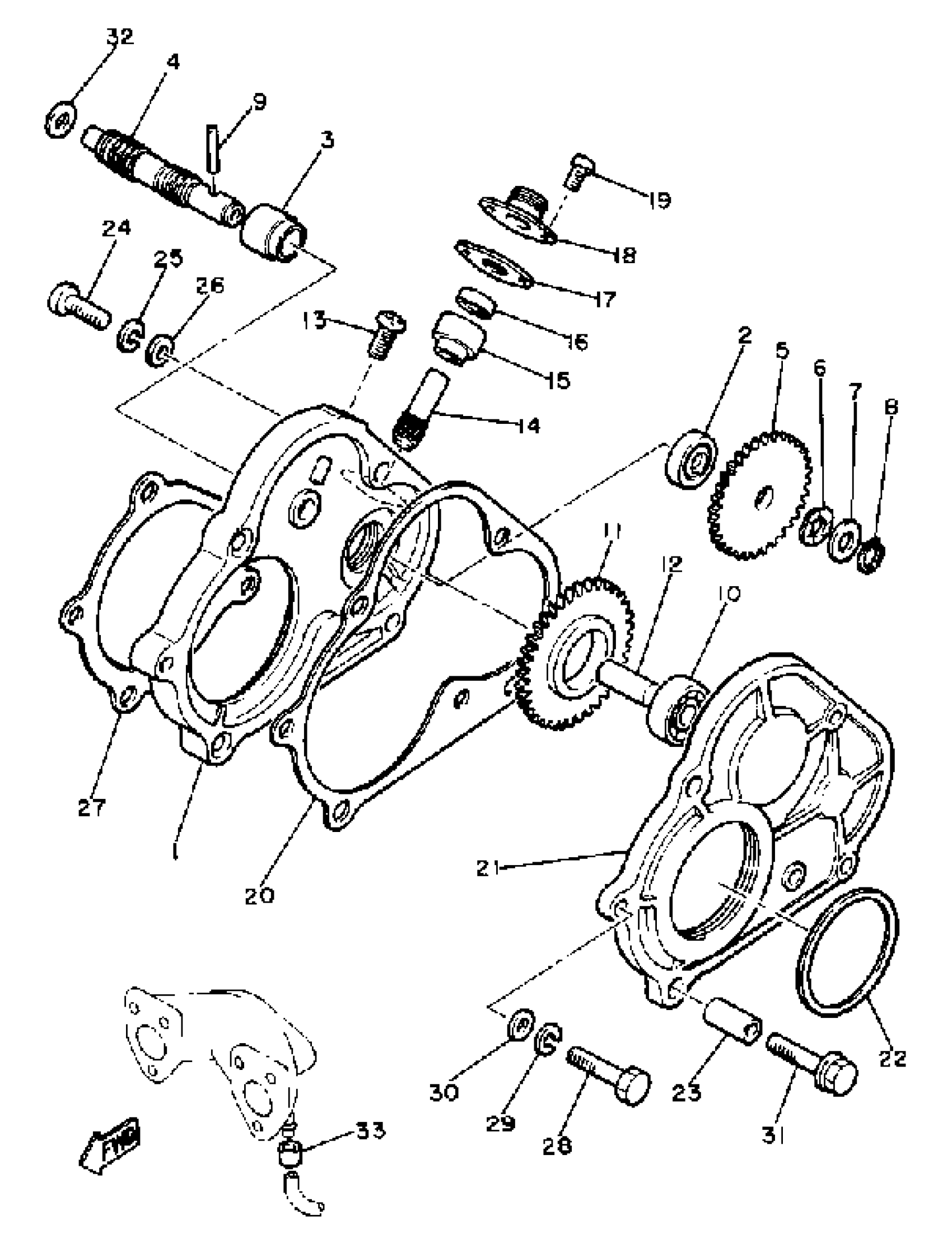

1981 Yamaha EC340E Pump Drive - Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, OIL PUMP

8G8-15416-00-00

1
Out of stock

2

OIL SEAL (J10)

93101-10090-00

1

$6.17

In stock

3

METAL, WORM SHAFT OUTER

821-13176-00-00

1

$6.33

In stock

4

SHAFT, WORM

821-13175-00-00

1
Out of stock

5

GEAR, DRIVE 2

821-13188-00-00

—

$26.03

In stock

6

WASHER, WAVE (137)

90206-11016-00

—

$12.72

In stock

7

PLATE, CAM THRUST

137-13148-00-00

—

$3.28

In stock

8

CIRCLIP(10W)

99009-10400-00

1

$3.91

In stock

9

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

10

—

$29.35

In stock

11

GEAR, IDLE

8G8-13179-00-00

1
Out of stock

12

SHAFT, IDLE GEAR

8G8-13342-00-00

1
Out of stock

13

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

14

GEAR, DRIVEN (10T)

813-17841-00-00

1
Out of stock

15

BUSH, DRIVEN GEAR OUTER

821-17843-00-00

1
Out of stock

16

OIL SEAL (6X12X4-821)

93104-06033-00

—

$6.49

In stock

17

GASKET

821-17818-02-00

—

$5.66

In stock

18

CAP, HOUSING

821-17819-00-00

1
Out of stock

19

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

20

GASKET 2

8G8-15466-03-00

1
Out of stock

21

COVER, OIL PUMP R

8G8-15426-00-00

1
Out of stock

22

OIL SEAL, SR-TYPE

93112-53004-00

1
Out of stock

23

PIN, DOWEL

91810-18025-00

1
Out of stock

24

SCREW PAN HEAD

98580-06020-00

—

$5.10

In stock

25

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

26

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

27

GASKET,O/PPCUR1

8G8-15456-03-00

1
Out of stock

28

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

29

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

30

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

31

BOLT, FLANGE

95817-06035-00

—

$5.37

In stock

32

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock

33

CLIP (214-13164-00)

90468-02033-00

—
Out of stock
