1981 Yamaha EC340E Secondary Sheave Diagram

← All diagrams

Find the part on the Secondary Sheave diagram for your 1981 Yamaha EC340E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

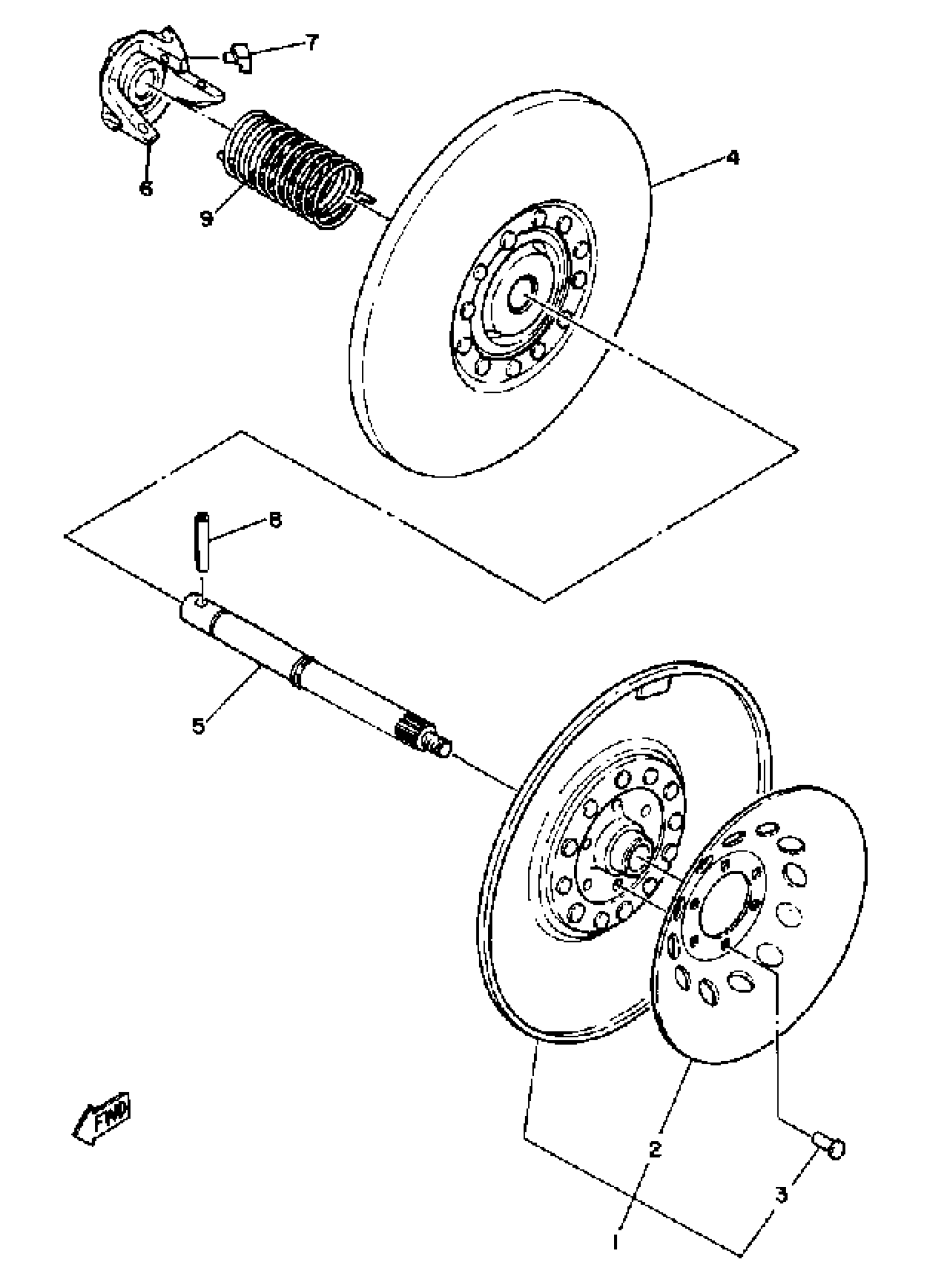

1981 Yamaha EC340E Secondary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEC FXD SHV

(8G8-17660-00-00)

1
Out of stock

2

. DISC, BRAKE

8F3-25711-00-00

1
Out of stock

3

RIVET

90263-05023-00

1
Out of stock

4

SEC SLIDING SHEAVE

85T-17670-00-00

1
Out of stock

5

SHAFT, SECONDARY

8G8-17681-02-00

1
Out of stock

6

SEAT, SEC SPRINGSPRING

810-17684-01-00

1
Out of stock

7

SHOE, RAMP

801-17688-10-00

1

$4.15

In stock

8

PIN, SPRING TYPE

90254-08001-00

1
Out of stock

9

1

$13.51

In stock
