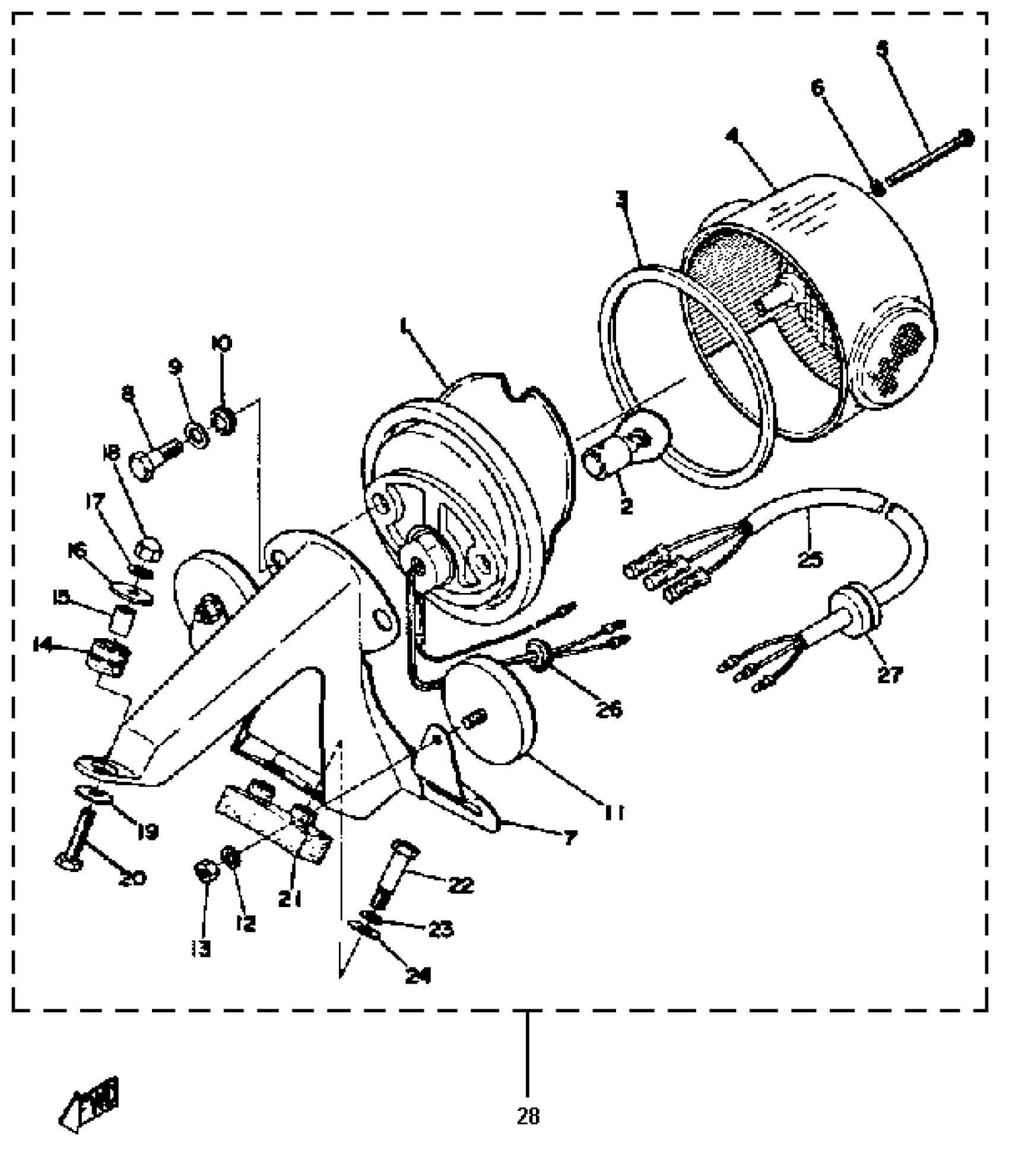

Find the part on the Tail Light diagram for your 1974 Yamaha DT360A (DT360A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha DT360A (DT360A) Tail Light Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BASE,TAILLIGHT

444-84711-61-00

1
Out of stock

2

. BULB

1M1-84514-60-00

1
Out of stock

3

. GASKET, LENS

275-84523-60-00

1
Out of stock

4

. LENS, TAIL LIGHT

341-84721-60-00

1
Out of stock

5

SCREW, PANHEAD (4G7)

98580-04055-00

—

$7.02

In stock

6

. WASHER

341-84722-60-00

1
Out of stock

7

BRACKET, LICENSE

437-84551-61-20

1
Out of stock

8

SCREW

275-84526-00-00

1
Out of stock

9

WASHER, SPECIAL

2H7-84754-00-00

1
Out of stock

10

. DAMPER

275-84527-60-00

1
Out of stock

11

REFLECTOR, REAR 1

449-85131-02-00

1

$25.74

In stock

12

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

13

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

14

GROMMET 839774310000

90480-14023-00

1

$4.74

In stock

15

COLLAR

90387-07020-00

1

$6.17

In stock

16

WASHER

90209-06012-00

—

$4.71

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

NUT (J17)

95380-06800-00

—

$6.74

In stock

19

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

20

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

21

DAMPER

308-84553-00-00

1
Out of stock

22

BOLT 338845520000

90109-06022-00

—

$8.14

In stock

23

WASHER, SPRING

90209-06100-00

1
Out of stock

24

WASHER, PLAIN

92903-08200-00

1
Out of stock

25

CORD, TAIL LIGHT

438-84517-00-00

1
Out of stock

26

GROMMET 152845180000

90480-12013-00

—
Out of stock

27

GROMMET (438)

90480-15061-00

—

$6.68

In stock

28

TAIL LIGHT UNIT ASSEMBLY

437-84510-62-00

1
Out of stock
