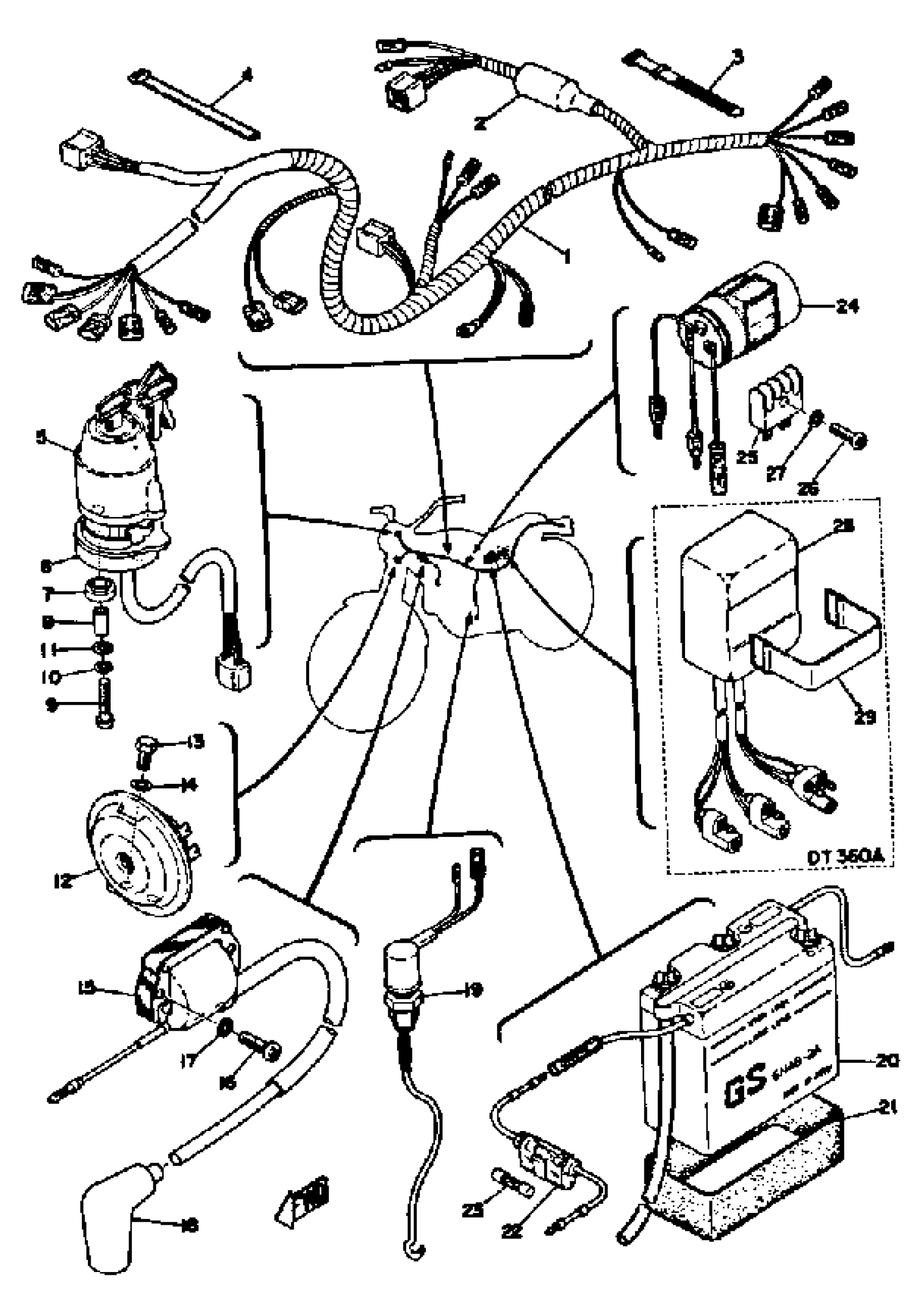

Find the part on the Electrical diagram for your 1974 Yamaha DT360A (DT360A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha DT360A (DT360A) Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WIRE HARNESS ASSEMBLY

438-82590-23-00

1
Out of stock

1

WIRE HARNESS ASSEMBLY

445-82590-22-00

1
Out of stock

2

COVER, CONNECTER

307-82599-01-00

1
Out of stock

3

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

4

BAND

341-26397-01-00

1
Out of stock

5

MAIN SWITCH ASSEMBLY

438-82508-20-00

1
Out of stock

6

. DAMPER, MAIN SWITCH

437-82555-00-00

1
Out of stock

7

DAMPER, STOPPER

1M1-82556-00-00

1
Out of stock

8

COLLAR, MAIN SWITCH

437-82516-00-00

1
Out of stock

9

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

10

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

11

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

12

HORN

437-83371-13-00

1
Out of stock

13

BOLT (661)

97013-06012-00

1

$4.71

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

IGNITION COIL ASSEMBLY

324-82310-10-00

1
Out of stock

15

IGNITION COIL ASSEMBLY

363-82310-10-00

1
Out of stock

16

SCREW, PAN HEAD

92503-06200-00

1
Out of stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

PLUG CAP ASSY

56J-82370-00-00

—

$56.63

In stock

19

STOP SWITCH ASSY

438-82530-09-00

1
Out of stock

20

BAND, BATTERY

437-82124-01-00

1
Out of stock

21

BAND, BATTERY

437-82124-01-00

1
Out of stock

22

FUSE HOLDER ASSY

55K-82150-02-00

—

$30.99

In stock

23

FUSE

1A0-82151-00-00

—
Out of stock

24

FLASHER RELAY ASSEMBLY

438-83350-62-00

1
Out of stock

25

RECTIFIER ASSY

353-81970-M2-00

—
Out of stock

26

SCREW, PAN HEAD(4MY)

98507-05018-00

—

$2.48

In stock

27

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

28

CDI UNIT ASSEMBLY

445-85540-22-00

1
Out of stock

29

BAND, BATTERY

26L-82131-00-00

—

$7.05

In stock
