1974 Yamaha DT360A (DT360A) Headlight Diagram

← All diagrams

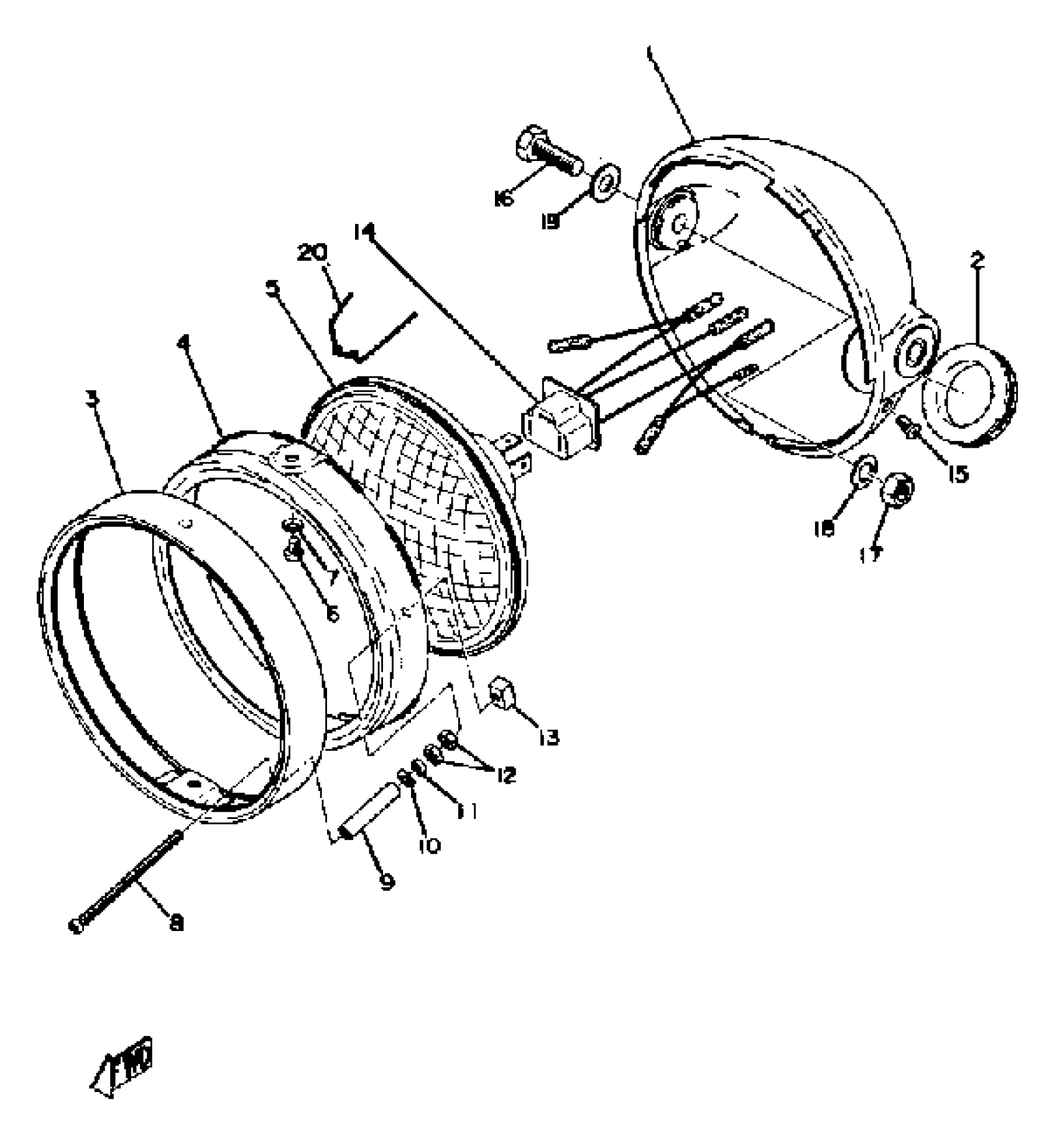

Find the part on the Headlight diagram for your 1974 Yamaha DT360A (DT360A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha DT360A (DT360A) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASY,HEADLIGHT

498-84130-60-20

1
Out of stock

2

GROMMET, WIREHARNESS

214-84153-60-00

1
Out of stock

3

. RIM, HEADLIGHT

498-84115-60-00

1
Out of stock

4

. RING, RETAINING

498-84195-60-00

1
Out of stock

5

. LENS ASSEMBLY

2A6-84120-60-00

1
Out of stock

6

. SCREW

438-84194-60-00

1
Out of stock

7

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

8

SCREW 214841316100

90157-04001-00

1

$5.35

In stock

9

. SPACER

341-84133-60-00

1
Out of stock

10

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

11

SPACER

168-84328-60-00

1
Out of stock

12

NUT(6TA)

95307-04600-00

1

$6.69

In stock

13

NUT, ADJUST

198-84334-60-00

1

$6.43

In stock

14

SOCKET, CORD

261-84312-61-00

1
Out of stock

15

SCREW, OVAL HEAD (1A0)

90152-05005-00

1

$2.82

In stock

16

BOLT (682)

97013-08025-00

—

$6.80

In stock

17

NUT(6L2)

95333-08600-00

—

$3.20

In stock

18

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

19

WASHER, PLAIN

92903-84324-00

1
Out of stock

20

SPRING, REFLECTOR SET

148-84324-00-00

—

$6.45

In stock
