1978 Yamaha DT175E (DT175E) Tachometer Diagram

← All diagrams

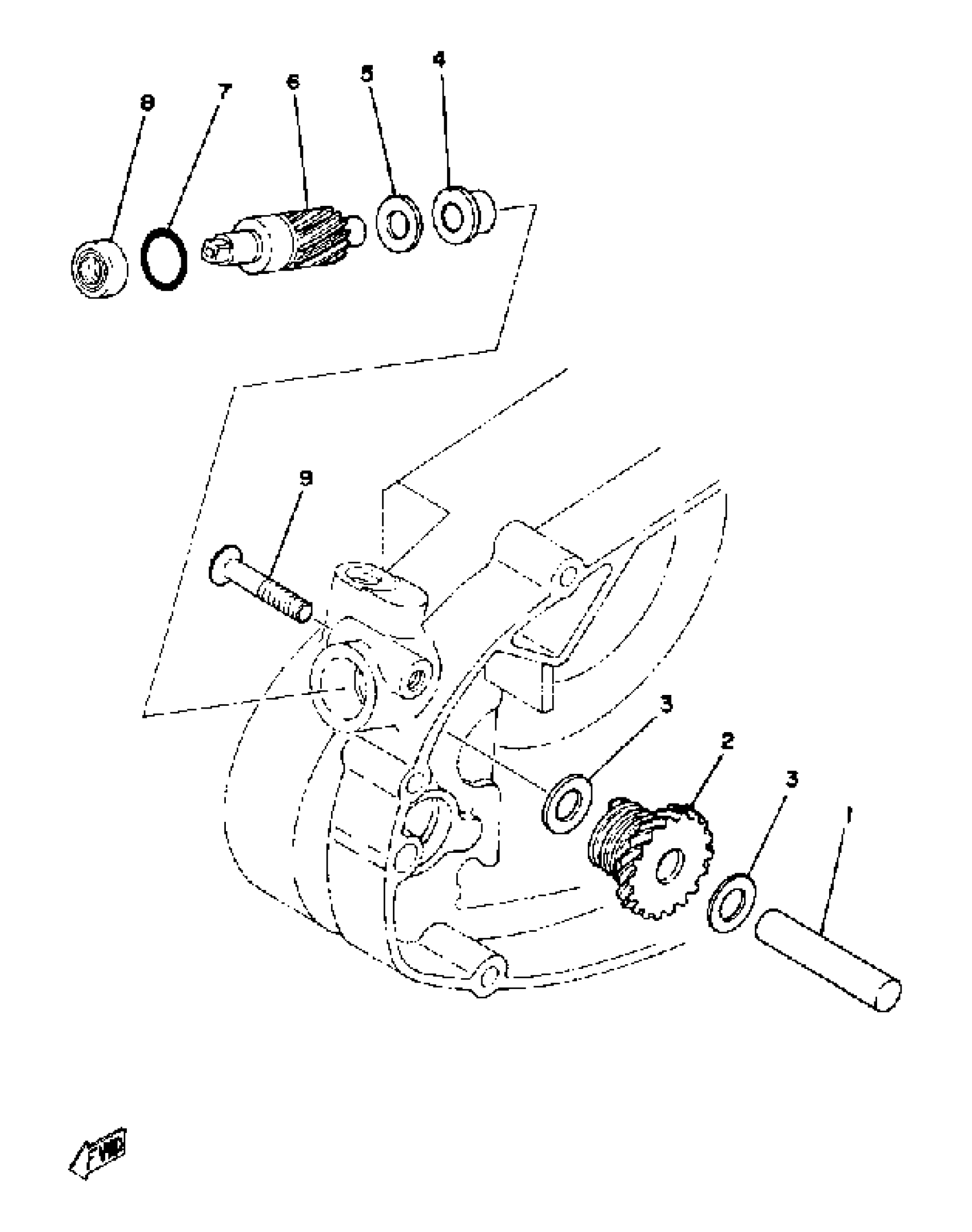

Find the part on the Tachometer diagram for your 1978 Yamaha DT175E (DT175E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha DT175E (DT175E) Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, DRIVE GEAR

(248-17861-00-00)

1
Out of stock

2

GEAR, DRIVE

2A6-17831-01-00

—

$23.92

In stock

3

WASHER, PLAIN 2562171501

90201-10123-00

1

$5.62

In stock

4

BUSH (214-17843-00)

90381-08002-00

1

$10.54

In stock

5

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

6

GEAR, DRIVEN

(2A6-17841-00-00)

1
Out of stock

7

O-RING (26H)

93210-14579-00

1

$5.69

In stock

8

OIL SEAL (30X)

93102-08307-00

1

$4.11

In stock

9

SCREW, FLAT HEAD

98780-06530-00

1

$4.02

In stock
