1978 Yamaha DT175E (DT175E) Flasher Lamp Diagram

← All diagrams

Find the part on the Flasher Lamp diagram for your 1978 Yamaha DT175E (DT175E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

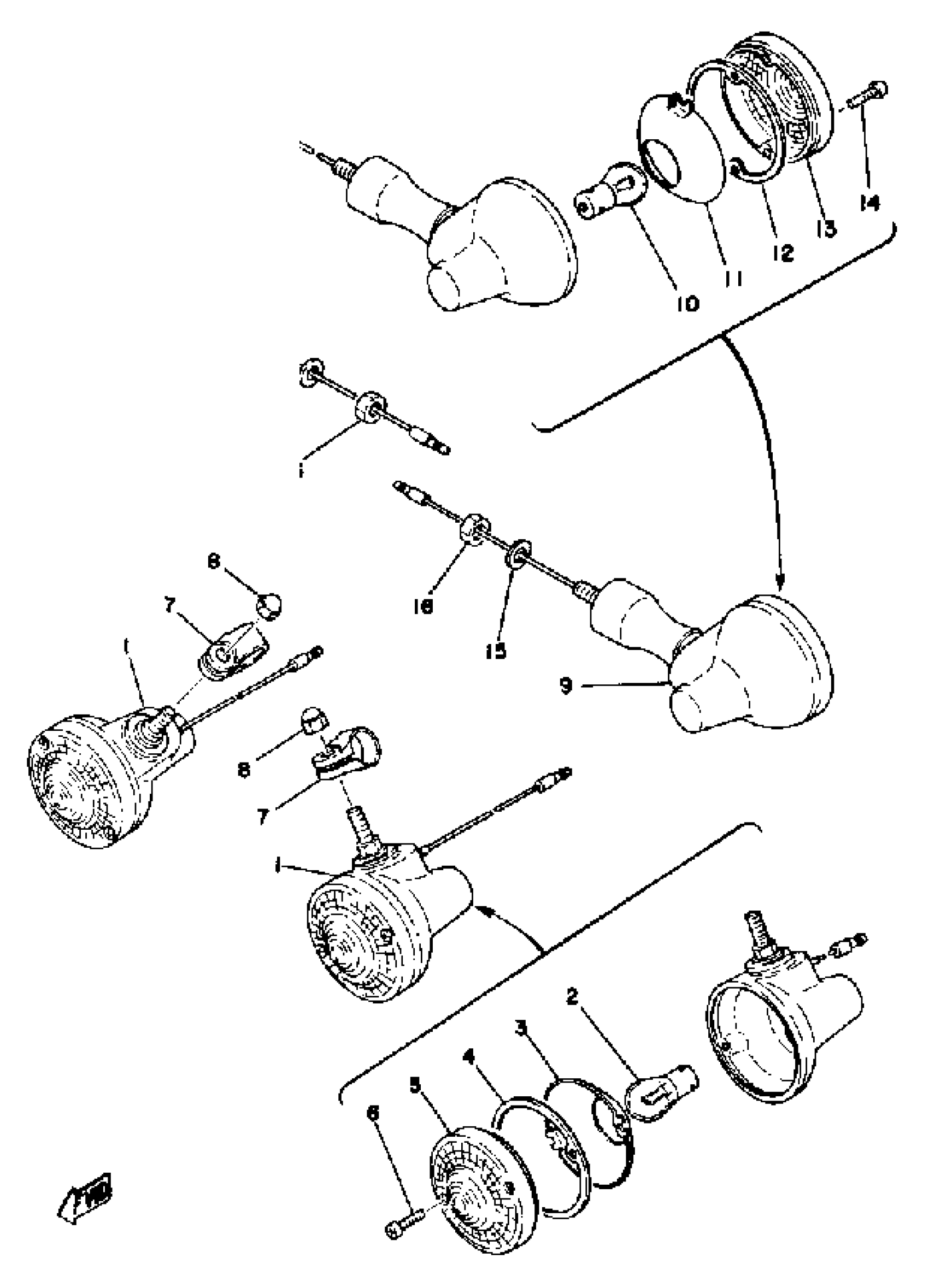

1978 Yamaha DT175E (DT175E) Flasher Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FLASHER LIGHT ASSY 1

1M1-83310-60-00

1
Out of stock

2

BULB,FLASHER(6V18W)

115-83311-60-00

—

$9.05

In stock

3

. REFLECTOR

1M1-83309-60-00

1
Out of stock

4

. GASKET, FLASHER LENS

1M1-83313-60-00

1
Out of stock

5

LENS, FLASHER

341-83312-70-00

—

$16.86

In stock

6

—

$5.77

In stock

7

STAY, FLASHER

1M1-83318-00-00

1

$7.91

In stock

8

NUT, CROWN

95303-08800-00

1

$7.52

In stock

9

REAR FLASHER LAMP ASSY

1T9-83330-60-00

—

$167.35

In stock

10

BULB,FLASHER(6V18W)

115-83311-60-00

—

$9.05

In stock

11

. REFLECTOR

1M1-83309-60-00

1
Out of stock

12

. GASKET, FLASHER LENS

1M1-83313-60-00

1
Out of stock

13

LENS, FLASHER

341-83312-70-00

—

$16.86

In stock

14

—

$5.77

In stock

15

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

16

NUT(3BM)

95314-10600-00

—

$1.74

In stock
