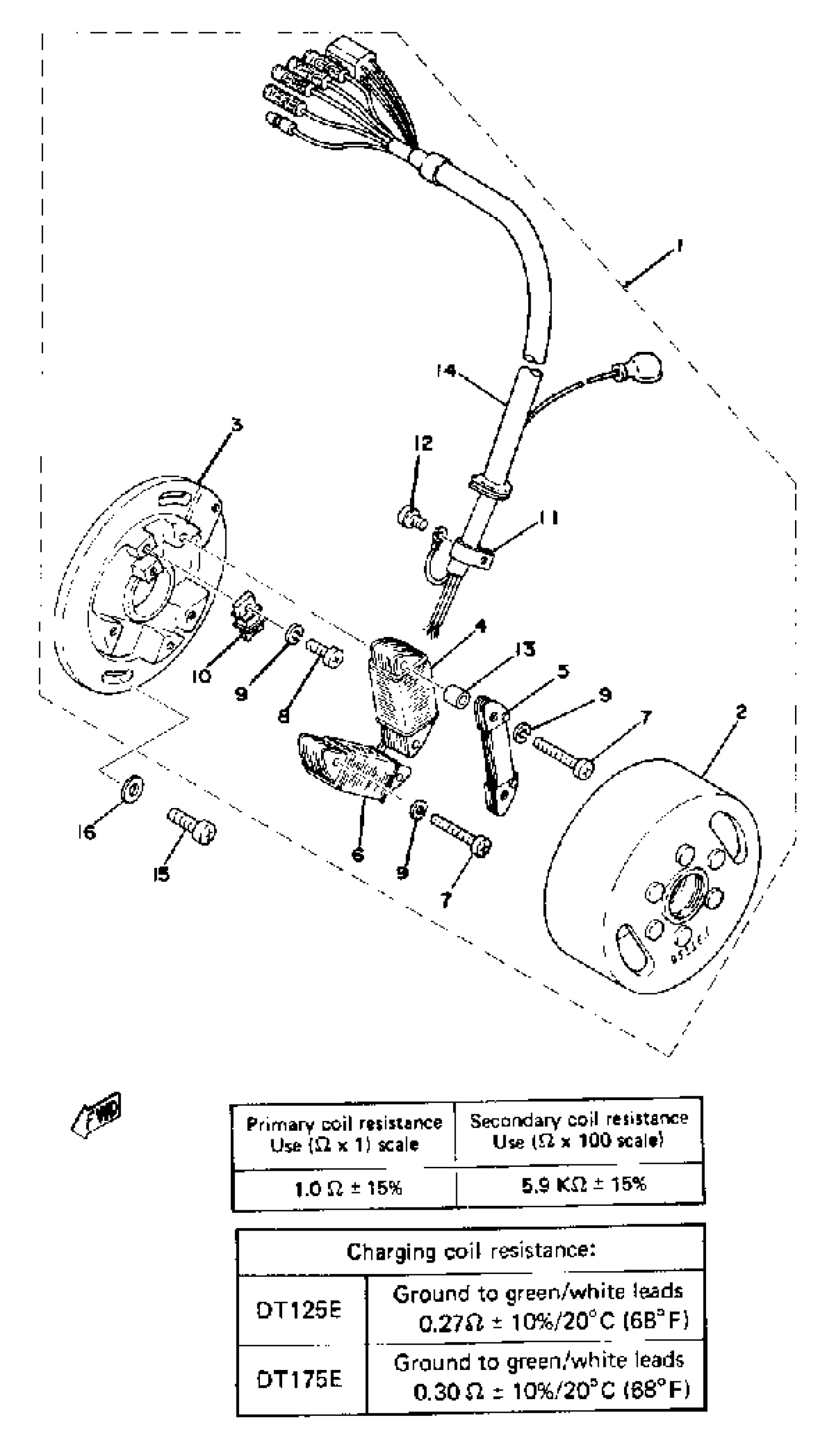

Yamaha DT175E (DT175E) 1978 CDI MAGNETO Diagram

#

Description

Price

1

CDI MAGNETO ASSEMBLY

(2A7-85500-20-00)

Unavailable

2

ROTOR ASSEMBLY

(2A7-85550-20-00)

Unavailable

3

. BASE, MAGNETO

1W2-85509-20-00

Unavailable

4

. COIL SOURCE 1

2A7-85511-20-00

Unavailable

5

. COIL SOURCE 2

2A7-85512-20-00

Unavailable

6

. COIL, LIGHTING 1

2A7-85513-20-00

Unavailable

7

. SCREW, PAN HEAD (811-14125-0)

619-81345-20-00

Unavailable

8

SCREW, PAN HEAD(GA5)

98580-04014-00

$2.60

9

YBS67-4 WASHER, SPRING

92990-04100-00

$0.58

10

. COIL, PULSER

2A7-85580-20-00

Unavailable

11

CLAMP, READ

445-81328-20-00

Unavailable

12

SCREW, PAN HEAD(3XP)

98517-04006-00

$3.86

13

. SPACER

1W2-85516-20-00

Unavailable

14

LEAD WIRE ASSEMBLY

(2A7-85515-20-00)

Unavailable

15

SCREW, PAN HEAD(62J)

97885-06012-00

$2.88

16

WASHER, PLAIN (646)

92990-06600-00

Unavailable
