1976 Yamaha DT100C (DT100C) Taillight Diagram

← All diagrams

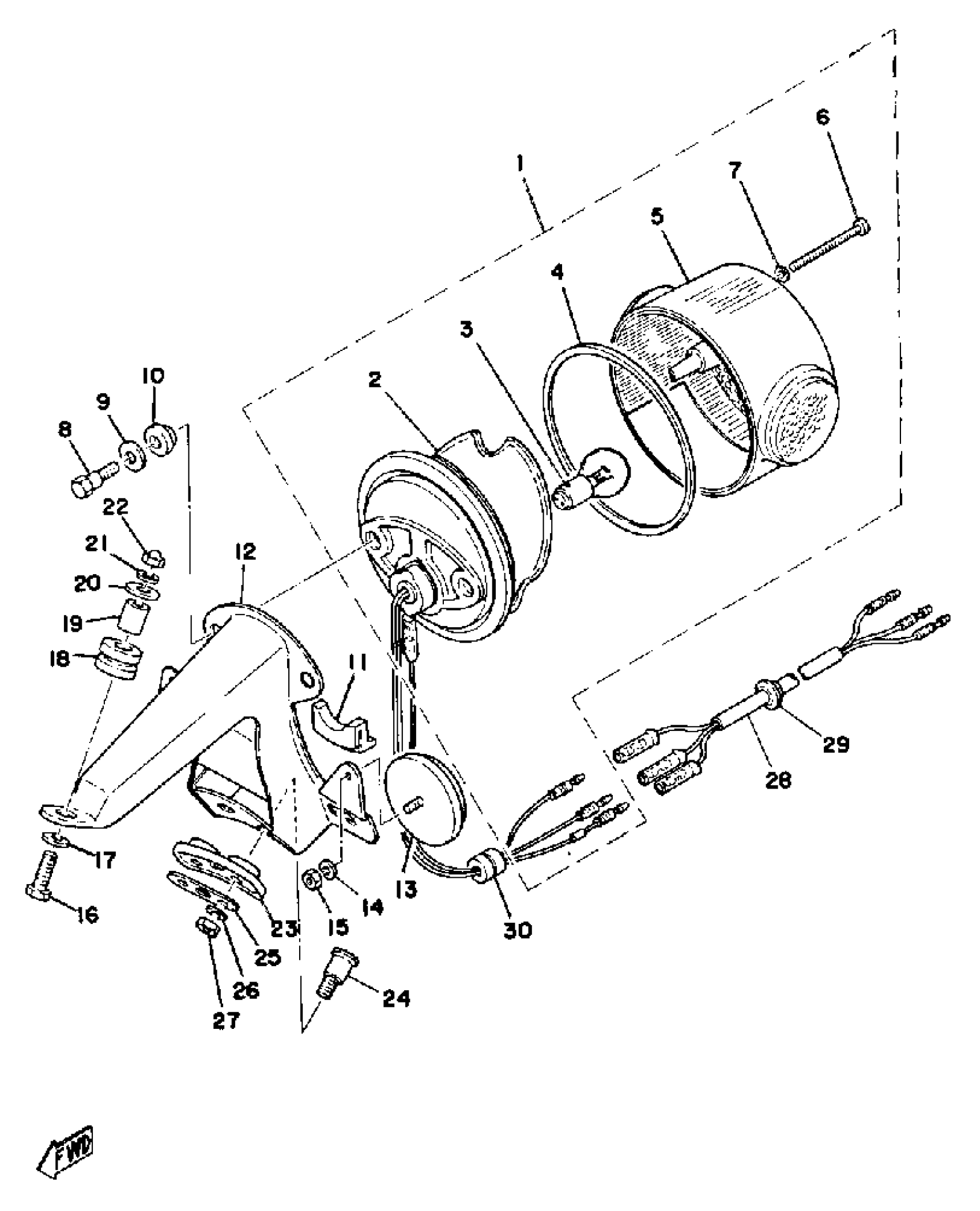

Find the part on the Taillight diagram for your 1976 Yamaha DT100C (DT100C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha DT100C (DT100C) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAIL LIGHT UNIT ASSEMBLY

437-84510-62-00

1
Out of stock

2

BASE, TAILLIGHT

(444-84711-61-00)

1
Out of stock

3

. BULB

1M1-84514-60-00

1
Out of stock

4

. GASKET, LENS

275-84523-60-00

1
Out of stock

5

. LENS, TAIL LIGHT

341-84721-60-00

1
Out of stock

6

SCREW, PANHEAD (4G7)

98580-04055-00

—

$7.02

In stock

7

. WASHER

341-84722-60-00

1
Out of stock

8

SCREW

(479-84526-00-00)

1
Out of stock

9

UNAVAILABLE IN PRICE BOOK

2H7-84525-00-00

1
Out of stock

10

. DAMPER

275-84527-60-00

1
Out of stock

11

DAMPER

(437-84527-60-00)

1
Out of stock

12

BRACKET, LICENCE

(437-84551-61-20)

1
Out of stock

13

REFLECTOR, REAR 1

449-85131-02-00

1

$25.74

In stock

14

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

15

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

16

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

17

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

18

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock

19

COLLAR

90387-07020-00

—

$6.17

In stock

20

WASHER

90209-06012-00

—

$4.71

In stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

22

NUT (J17)

95380-06800-00

—

$6.74

In stock

23

DAMPER

214-84553-01-00

—

$6.72

In stock

24

BOLT 168217380000

90109-06017-00

—
Out of stock

25

WASHER, SPEC''L SHAP

90209-10114-00

1
Out of stock

26

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

27

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

28

CORD, TAILLIGHT

(437-84517-00-00)

1
Out of stock

29

GROMMET 152845180000

90480-12013-00

—
Out of stock

30

GROMMET (438)

90480-15061-00

—

$6.68

In stock
