1976 Yamaha DT100C (DT100C) Headlight-Meter Diagram

← All diagrams

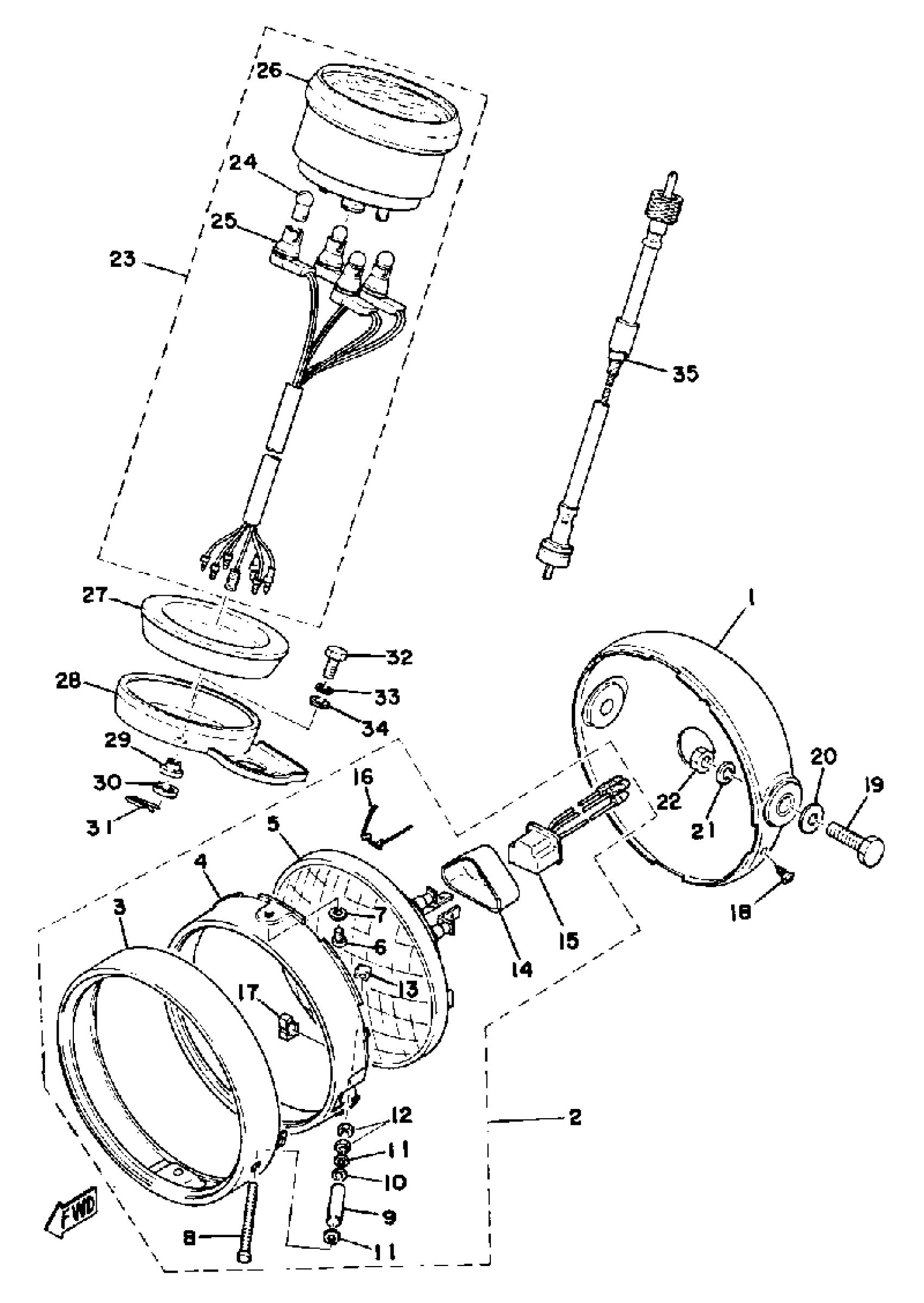

Find the part on the Headlight-Meter diagram for your 1976 Yamaha DT100C (DT100C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha DT100C (DT100C) Headlight-Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSEMBLY, HEADLIGHT

(437-84130-62-20)

1
Out of stock

2

TOOL

UNA-VAILA-BL-EI

1
Out of stock

3

. RIM, HEADLIGHT

498-84115-60-00

1
Out of stock

4

. RING, RETAINING

498-84195-60-00

1
Out of stock

5

. LENS ASSEMBLY

498-84120-61-00

1
Out of stock

6

. SCREW

438-84194-60-00

1
Out of stock

7

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

8

SCREW 214841316100

90157-04001-00

1

$5.35

In stock

9

COLLAR, SCREW

438-84133-60-00

1
Out of stock

10

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

11

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

12

NUT(6TA)

95307-04600-00

1

$6.69

In stock

13

NUT, ADJUST

198-84334-60-00

1

$6.43

In stock

14

. COVER, SOCKET

341-84397-61-00

1
Out of stock

15

SOCKET

371-84312-60-00

—

$26.52

In stock

16

SPRING, SET

1UY-84124-00-00

—

$6.55

In stock

17

. SPACER

498-84128-60-00

1
Out of stock

18

SCREW, OVAL HEAD (1A0)

90152-05005-00

—

$2.82

In stock

19

BOLT

97013-08035-00

—

$4.80

In stock

20

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

21

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

22

NUT(6L2)

95333-08600-00

—

$3.20

In stock

23

SPEEDOMETER ASSEMBLY

(437-83510-31-00)

1
Out of stock

24

BULB,(6V3W)

122-83516-10-00

1
Out of stock

25

SOCKET CORD ASSEMBLY

(437-83520-30-00)

1
Out of stock

26

DAMPER

(437-83513-00-00)

1
Out of stock

27

DAMPER 2

(438-83526-00-00)

1
Out of stock

28

BRACKET, METER

(437-83519-00-00)

1
Out of stock

29

DAMPER

437-83523-00-00

1
Out of stock

30

WASHER, SPECIAL

437-83524-00-00

1
Out of stock

31

CLIP (156-83525-00)

90468-10050-00

—

$2.31

In stock

32

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

33

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

34

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

35

SPEEDOMETER CABLE ASSY

1JN-83550-02-00

—

$36.69

In stock
