1976 Yamaha DT100C (DT100C) Flasher Light Diagram

← All diagrams

Find the part on the Flasher Light diagram for your 1976 Yamaha DT100C (DT100C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

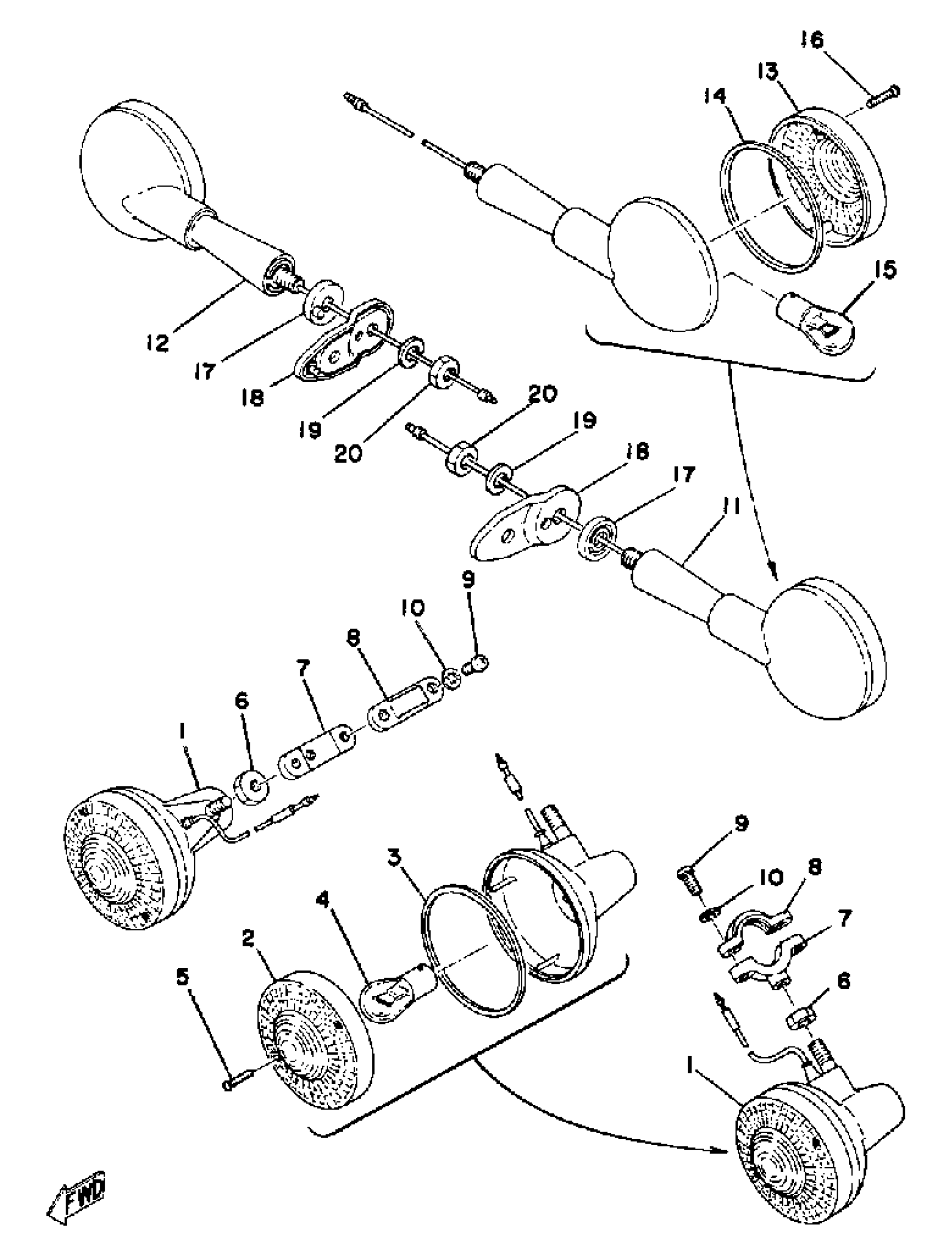

1976 Yamaha DT100C (DT100C) Flasher Light Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FLASHER LIGHT ASSY

438-83310-62-93

1
Out of stock

2

LENS, FLASHER

341-83312-70-00

—

$16.86

In stock

3

GASKET, FLASHER LENS

3Y6-83313-00-00

1

$6.58

In stock

4

BULB,FLASHER(6V18W)

115-83311-60-00

—

$9.05

In stock

5

SCREW, COUNTERSUNK

90151-03003-00

—
Out of stock

6

NUT(6L2)

95333-08600-00

1

$3.20

In stock

7

STAY, FLASHER 2

437-83328-01-00

1
Out of stock

8

STAY, FLASHER 1

275-83318-00-00

1
Out of stock

9

SCREW, PAN

98507-06014-00

1

$6.18

In stock

10

WASHER, TOOTH

92990-06300-00

1

$2.36

In stock

11

R FLSHR LITE ASSEMBLY

(437-83330-61-93)

1
Out of stock

12

R FLSHR LITE ASSEMBLY

(437-83340-61-93)

1
Out of stock

13

. LENS, FLASHER

341-83332-70-00

1
Out of stock

14

GASKET, FLASHER LENS

3Y6-83313-00-00

1

$6.58

In stock

15

BULB,FLASHER(6V18W)

115-83311-60-00

—

$9.05

In stock

16

SCREW, COUNTERSUNK

90151-03003-00

—
Out of stock

17

COLLAR, FLASHER 2

437-83326-00-00

1
Out of stock

18

STAY, FLASHER

(437-83368-02-00)

1
Out of stock

19

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

20

NUT(6L2)

95333-08600-00

1

$3.20

In stock
