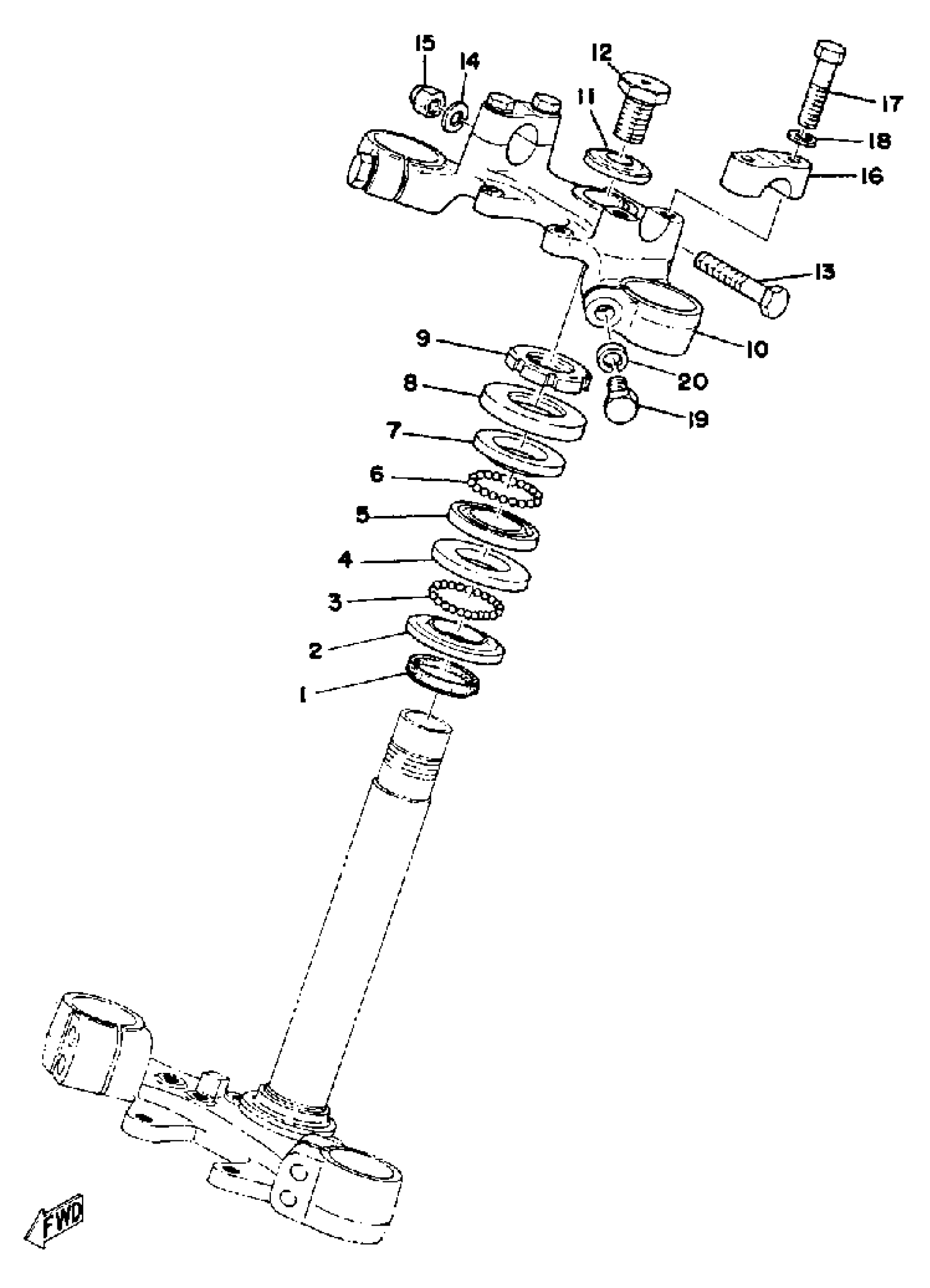

Yamaha DT100C (DT100C) 1976 STEERING Diagram

#

Description
Price

1

SEAL, DUST

164-23462-00-00

$5.98

2

RACE, BALL 1

B6E-23411-00-00

$6.54

3

BALL

93501-04011-00

$5.84

4

RACE, BALL 2

B6E-23412-00-00

$9.05

5

RACE, BALL 2

BP2-23412-00-00

$5.33

6

BALL

93503-16003-00

$1.96

7

RACE, BALL 1

BP2-23411-00-00

$7.83

8

COVER, BALL RACE

122-23416-00-00

$5.98

9

NUT

90179-25004-00

$19.41

10

CROWN, HANDLE

(248-23435-03-33)

Unavailable

11

WASHER, SPECIAL SHAPE

90209-14022-00

Unavailable

12

BOLT

90101-14113-00

Unavailable

13

BOLT

97013-08045-00

Unavailable

14

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

15

NUT, CROWN

95303-08800-00

$7.01

16

HOLDER, HANDLE UPPER

401-23441-00-98

Unavailable

17

BOLT

97013-08035-00

Unavailable

18

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

19

BOLT (8J7)

97013-10030-00

Unavailable

20

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable
