1976 Yamaha DT100C (DT100C) Front Wheel Diagram

← All diagrams

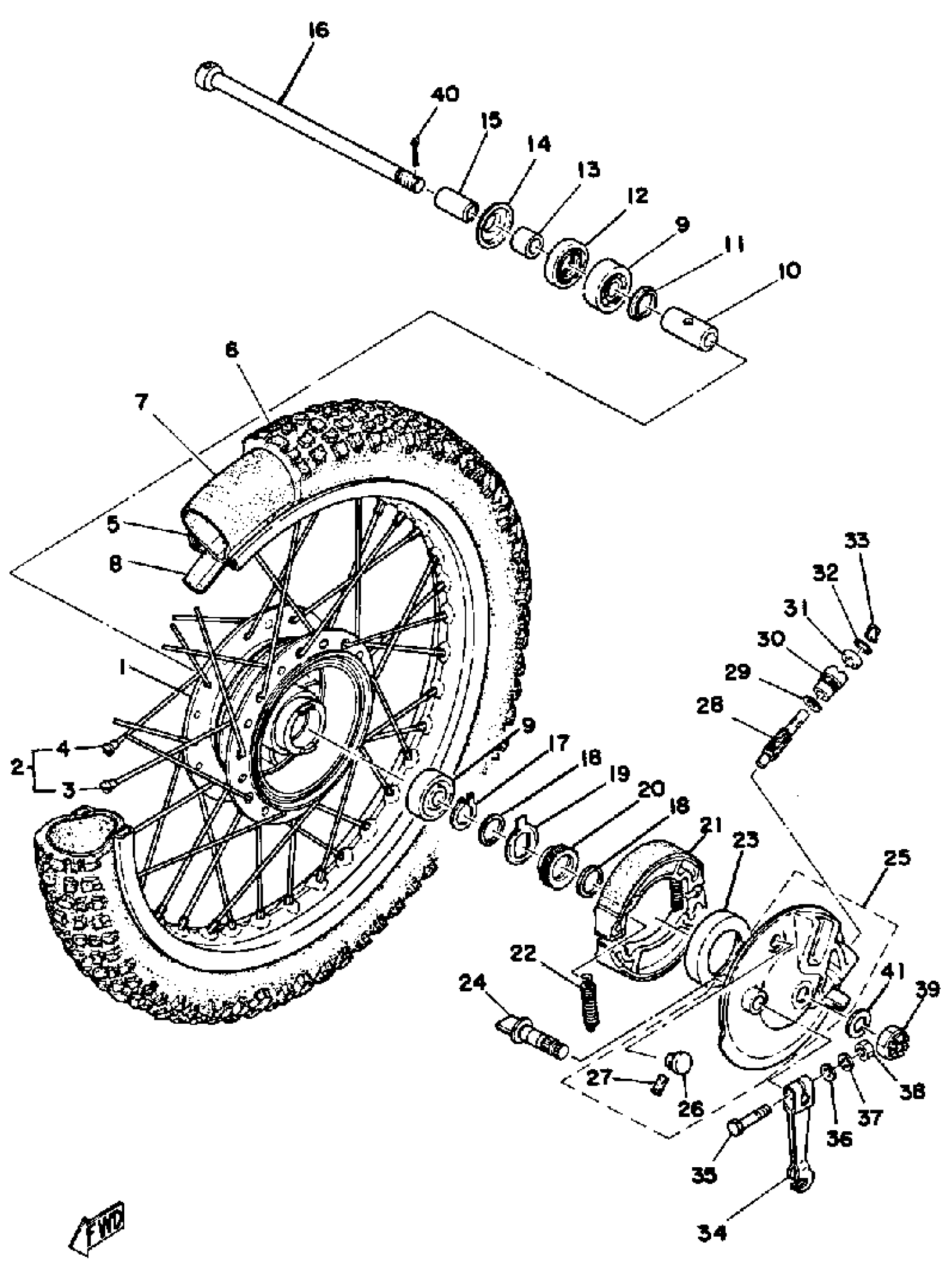

Find the part on the Front Wheel diagram for your 1976 Yamaha DT100C (DT100C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha DT100C (DT100C) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

(248-25111-00-38)

1
Out of stock

2

SPOKE SET, FRONT

(276-25104-10-00)

1
Out of stock

3

SPOKE SET, INNER 1

(276-25196-90-00)

1
Out of stock

4

SPOKE SET, OUTER 1

(276-25197-80-00)

1
Out of stock

5

RIM (1.40-19)

94414-19003-00

1
Out of stock

6

275X19 YOKO Y620

(94127-19321-00)

1
Out of stock

7

TUBE (2.75-19)(3GX)

94227-19292-00

—

$33.15

In stock

8

BAND, RIM

94327-19111-00

1

$12.51

In stock

9

BEARING

93306-30102-00

1
Out of stock

10

SPACER

90560-12138-00

—

$12.83

In stock

11

FLANGE, SPACER

109-25315-00-00

1

$6.20

In stock

12

OIL SEAL (18X37X8-109)

93102-18008-00

1

$22.31

In stock

13

COLLAR 1832518300

90387-12095-00

1

$4.63

In stock

14

COVER, HUB DUST

2K5-25118-00-00

1
Out of stock

15

COLLAR

90387-12099-00

1
Out of stock

16

AXLE, WHEEL

427-25181-10-00

1
Out of stock

17

CIRCLIP(1AR)

99009-20400-00

—
Out of stock

18

WASHER, PLATE 1832514700

90201-20269-00

—
Out of stock

19

CLUTCH, METER

183-25149-00-00

—
Out of stock

20

GEAR, DRIVE

301-25135-00-00

1
Out of stock

21

BRAKESHOE SET

22F-W2534-00-00

1
Out of stock

22

SPRING, TENSION (566).

90506-16150-00

—

$6.98

In stock

23

SEAL,OIL

93105-47007-00

—
Out of stock

24

CAMSHAFT

4GL-25351-00-00

—

$62.50

In stock

25

BRAKE SHOE PLT ASSEMBLY

(558-25120-00-38)

1
Out of stock

26

GROMMET (397)

90480-10068-00

—

$6.77

In stock

27

LABEL, INDICATOR

(437-25134-00-00)

1
Out of stock

28

GEAR, METER

301-25138-00-00

1
Out of stock

29

WASHER, PLATE 1832514600

90201-07076-00

—

$5.75

In stock

30

BUSHING

109-25136-00-00

—

$8.78

In stock

31

OIL SEAL (7X14X4-136)

93104-07003-00

—

$7.29

In stock

32

O-RING (26H)

93210-14579-00

—

$5.69

In stock

33

RING, STOP

102-25137-00-00

—
Out of stock

34

LEVER, CAMSHAFT 1

5H0-25155-00-00

1
Out of stock

35

BOLT, HEXAGON (538)

90101-06278-00

—

$1.82

In stock

36

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

37

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

38

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

39

NUT CASTLE(481)

90171-12005-00

—

$7.35

In stock

40

PIN, COTTER

91490-30030-00

—

$7.15

In stock

41

YBS67-12 WASHER,SPRING

92990-12100-00

—

$6.68

In stock
