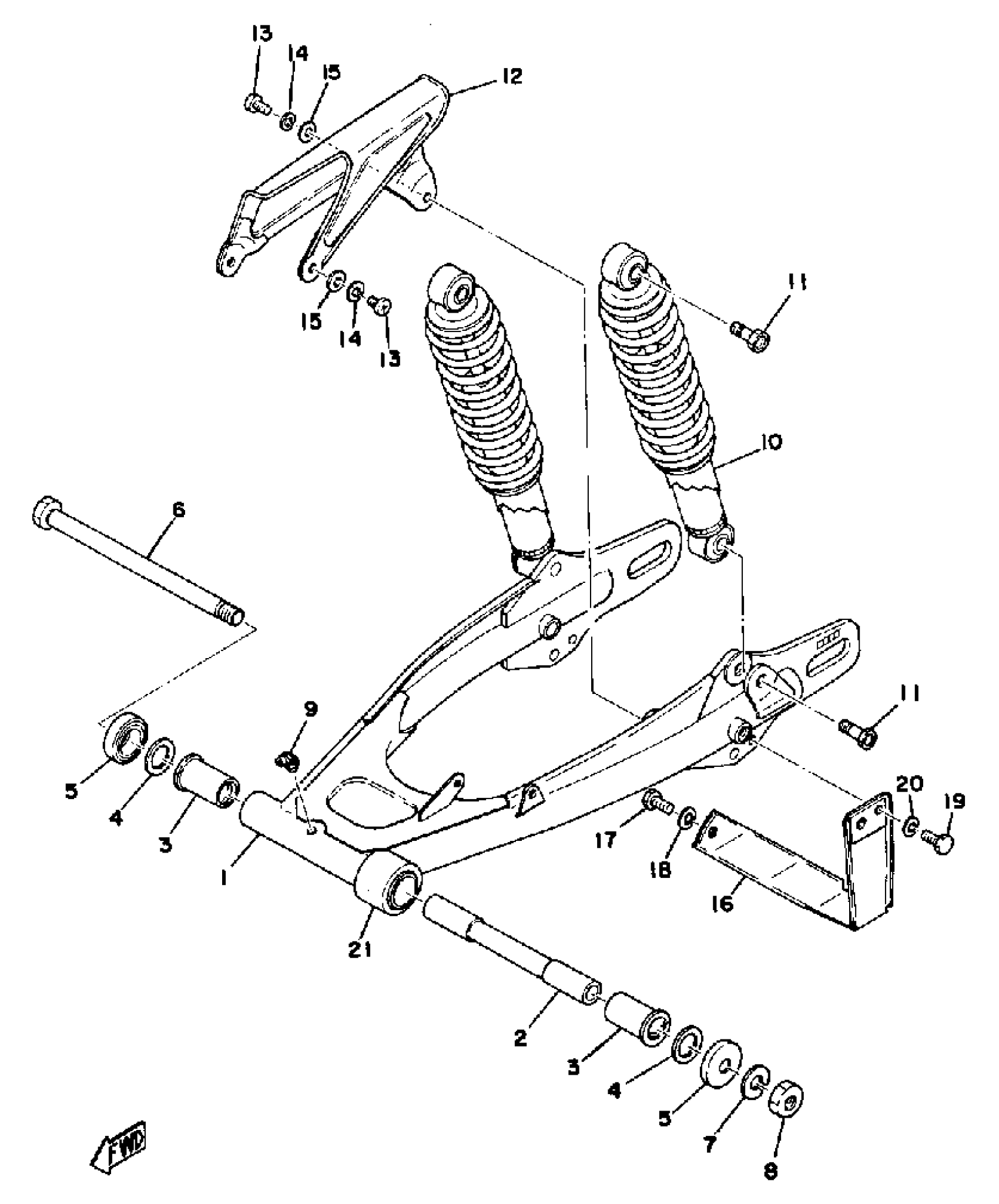

Yamaha DT100C (DT100C) 1976 REAR ARM-REAR CUSHION Diagram

#

Description
Price

1

REAR ARM

(558-22110-00-33)

Unavailable

2

BUSH 2

18G-22124-00-00

Unavailable

3

BUSHING (401-22123-00)

90386-18028-00

$19.98

4

SHIM

401-22127-00-00

$6.17

5

COVER, THRUST 1

401-22128-01-00

$23.80

6

SHAFT, PIVOT

537-22141-01-00

Unavailable

7

YBS67-12 WASHER,SPRING

92990-12100-00

$6.58

8

NUT, HEXAGON 98801-12200

90170-12175-00

$7.58

9

NIPPLE, GREASE

93700-06005-00

$10.76

10

SHK/ABS ASSEMBLY, REAR

(558-22210-01-00)

Unavailable

11

BOLT

90109-10195-00

Unavailable

12

CASE, CHAIN

(437-22311-02-33)

Unavailable

13

SCREW, PAN HEAD(62X)

97885-05010-00

$2.80

14

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

15

. WASHER, PLAIN

92990-05200-00

$4.29

16

GUARD, CHAIN

(248-22318-00-33)

Unavailable

17

BOLT, HEXAGON

97017-06020-00

Unavailable

18

WASHER, SPRING

92995-06100-00

$2.95

19

BOLT(JA9)

90101-08691-00

Unavailable

20

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

21

SEAL, GUARD

(437-22151-00-00)

Unavailable
