1976 Yamaha DT100C (DT100C) Front Fork Diagram

← All diagrams

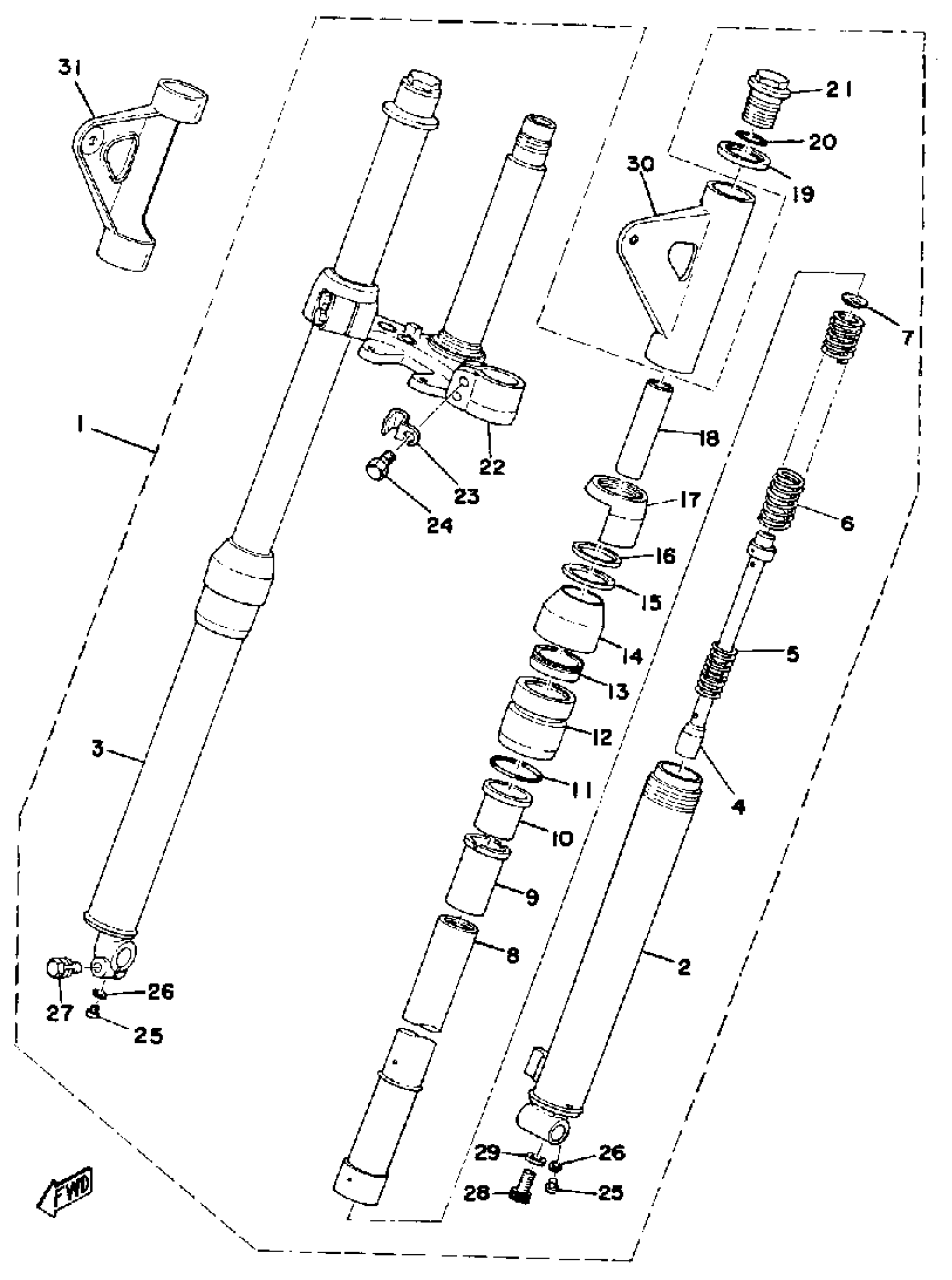

Find the part on the Front Fork diagram for your 1976 Yamaha DT100C (DT100C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha DT100C (DT100C) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(437-23101-01-00)

1
Out of stock

2

TUBE, OUTER 1

(437-23126-00-00)

1
Out of stock

3

TUBE, OUTER 2

(437-23136-00-00)

1
Out of stock

4

CYLINDER, FRTFRK

(248-23170-01-00)

1
Out of stock

5

SPRING, SUB

(248-23152-00-00)

1
Out of stock

6

. UNAVAILABLE IN PRICE BOOK (437-23141-01)

318-23141-01-00

1
Out of stock

7

SEAT, SPRING UPPER

(304-23142-50-00)

1
Out of stock

8

TUBE, INNER 1

(437-23124-00-00)

1
Out of stock

9

SPACER, OIL LOCK

(248-23166-00-00)

1
Out of stock

10

. METAL, SLIDE 1

(137-23125-01-00)

1
Out of stock

11

. O-RING

137-23147-00-00

1
Out of stock

12

OUTER NUT

(193-23150-40-00)

1
Out of stock

13

OIL SEAL

137-23145-01-00

1

$38.06

In stock

14

SEAL, DUST

248-23144-00-00

1

$28.22

In stock

15

. GASKET

(437-23163-00-00)

1
Out of stock

16

WASHER, LIGHT STAY

(437-23161-00-00)

1
Out of stock

17

COVER, OUTER 1

(304-23122-50-00)

1
Out of stock

18

SPACER

(248-23118-00-00)

1
Out of stock

19

GUIDE, COVER UPPER

(248-23115-01-00)

1
Out of stock

20

PACKING(O-RING)

146-23114-00-00

—
Out of stock

21

BOLT, CAP

(2K5-23111-00-00)

1
Out of stock

22

UNDER BRACKET

(437-23340-00-33)

1
Out of stock

23

HOLDER, CABLE 1

(256-23318-60-00)

1
Out of stock

24

BOLT, AXLE HOLDER

18G-23128-00-00

—

$7.77

In stock

25

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

26

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

27

BOLT, WITH WASHER

(90119-08010-00)

1
Out of stock

28

BOLT,SOCKET

91314-08020-00

—

$6.17

In stock

29

GASKET

(214-23158-00-00)

1
Out of stock

30

COVER, UPPER 1

(438-23121-00-20)

1
Out of stock

31

COVER, UPPER 2

(438-23131-00-20)

1
Out of stock
