1972 Yamaha DS7 (DS7) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1972 Yamaha DS7 (DS7), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

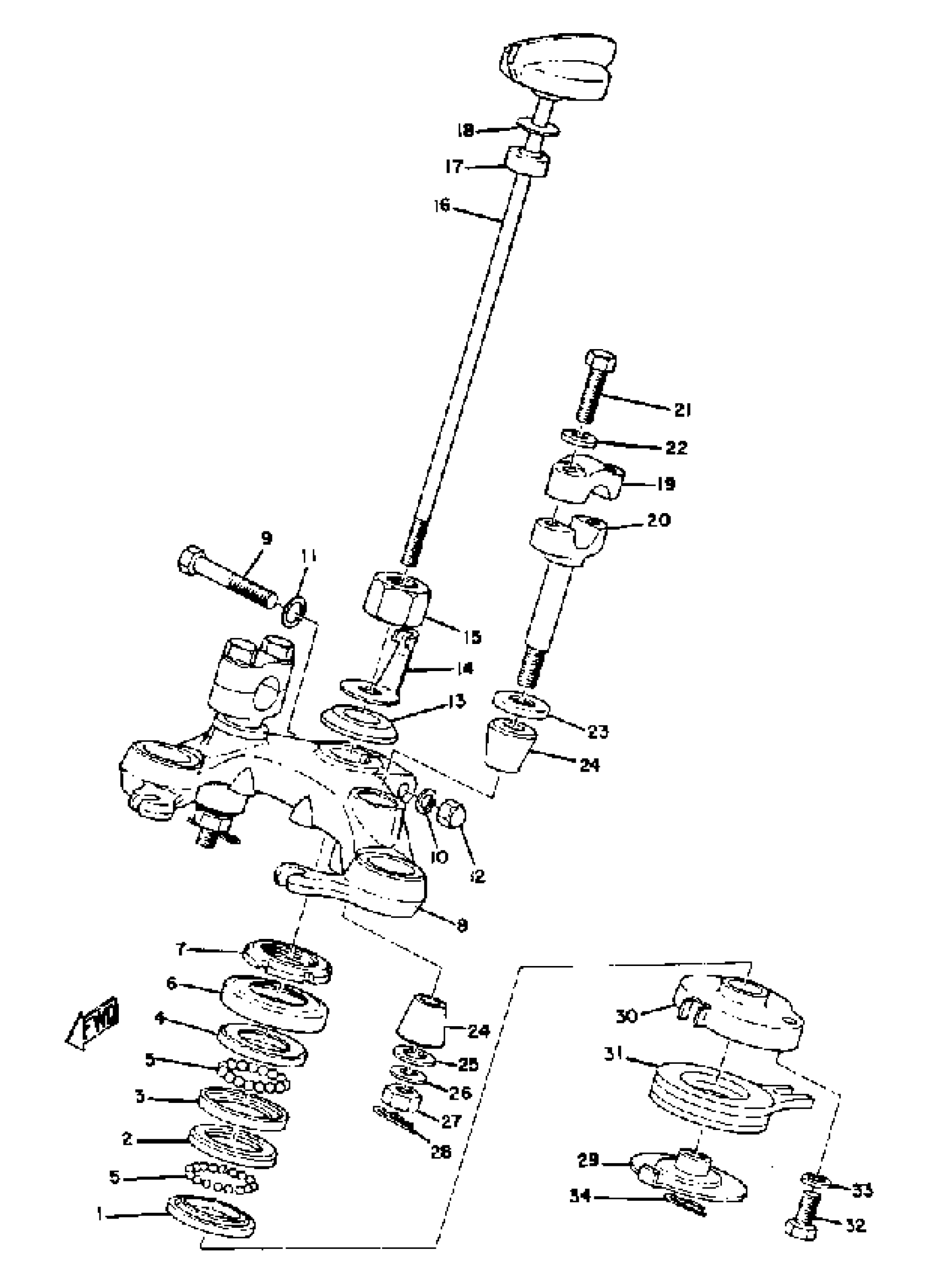

1972 Yamaha DS7 (DS7) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RACE, BALL 1

B6E-23411-00-00

1

$7.02

In stock

2

RACE, BALL 2

B6E-23412-00-00

1

$9.71

In stock

3

RACE,BALL 2

4FP-F3412-10-00

—

$3.98

In stock

4

RACE, BALL 1

4FP-F3411-20-00

1

$8.70

In stock

5

BALL

93501-04011-00

1
Out of stock

6

COVER, BALL RACE

136-23415-00-00

1

$7.71

In stock

7

NUT

90179-25004-00

1

$20.78

In stock

8

CROWN, HANDLE

(278-23435-00-00)

1
Out of stock

9

BOLT, HEXAGON

97013-08055-00

1

$3.25

In stock

10

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

11

WASHER, PLATE 1562722600

90201-08083-00

1
Out of stock

12

NUT, CROWN

95303-08800-00

1

$7.52

In stock

13

WASHER, SPEC''L SHAP

90209-17057-00

1
Out of stock

14

SPRING

(246-23428-00-00)

1
Out of stock

15

NUT (95301-16600)

95303-16600-00

1
Out of stock

16

SHAFT, DAMPER

278-23419-00-00

1
Out of stock

17

WASHER, PLATE 1412342700

90202-06008-00

—

$3.91

In stock

18

UNAVAILABLE IN PRICE BOOK (6.5-18-0.6) (156-23418-0)

90201-20606-10

1
Out of stock

19

HOLDER, HANDLE UPPER

401-23441-00-98

1
Out of stock

20

HOLDER, HANDLE LWR

256-23442-00-98

1
Out of stock

21

BOLT, HEXAGON

97013-08030-00

—

$3.20

In stock

22

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

23

WASHER 278234480000

90209-12102-00

—
Out of stock

24

BUSH, SPEC''L RUBBER

(90385-12020-00)

1
Out of stock

25

WASHER, PLATE (3X3)

90201-15797-00

—

$6.29

In stock

26

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

27

NUT (682)

95380-10700-00

1

$5.78

In stock

28

CLIP 136253750000

90468-12006-00

—

$5.10

In stock

29

PLATE, DAMPER 1

(169-23421-00-33)

1
Out of stock

30

PLATE, DAMPER 3

(246-23423-00-00)

1
Out of stock

31

PLATE, DAMPER 2

(169-23422-01-00)

1
Out of stock

32

BOLT(62E)

97013-08012-00

—

$2.48

In stock

33

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

34

CLIP (156-83525-00)

90468-10050-00

—

$2.31

In stock
