1972 Yamaha DS7 (DS7) A - C - Generator Diagram

← All diagrams

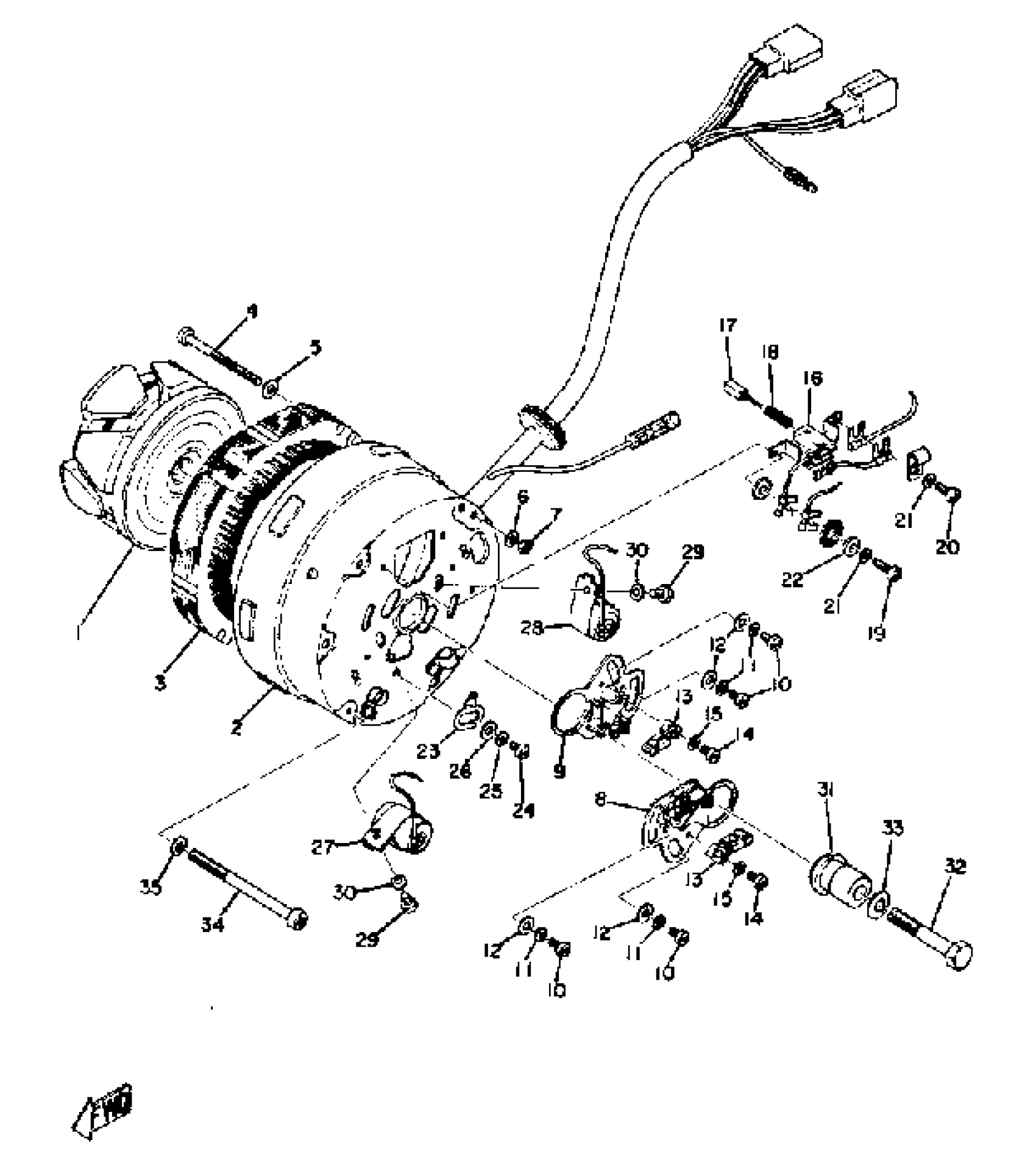

Find the part on the A - C - Generator diagram for your 1972 Yamaha DS7 (DS7), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha DS7 (DS7) A - C - Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROTOR ASSEMBLY

(278-81650-20-00)

1
Out of stock

1

AC GENERATOR ASSEMBLY

(360-81600-92-00)

1
Out of stock

2

STATOR ASSEMBLY

(278-81610-20-00)

1
Out of stock

3

ARMATURE ASSEMBLY

(278-81640-20-00)

1
Out of stock

4

SCREW, ADJUSTING

5BF-8433E-00-00

1

$6.11

In stock

5

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

6

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

7

NUT(6TA)

95307-04600-00

1

$6.69

In stock

8

.. CONTACT BRKR ASSEMBLY

278-81621-20-00

1
Out of stock

9

.. CONTACT BRKR ASSEMBLY

278-81622-20-00

1
Out of stock

10

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

11

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

12

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

13

LUBRICATOR

(131-81231-20-00)

1
Out of stock

14

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

15

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

16

.. BRUSH HOLDER ASSEMBLY

360-81619-20-00

1
Out of stock

17

.. BRUSH 1

278-81611-20-00

1
Out of stock

18

.. SPRING, BRUSH

278-81617-20-00

1
Out of stock

19

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

20

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

21

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

22

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

23

PLATE, TIMING

(278-81632-20-00)

1
Out of stock

24

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

25

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

26

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

27

CNDSR 2

278-81625-91-00

1
Out of stock

28

.. CONDENSER 2

278-81626-20-00

1
Out of stock

29

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

30

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

31

. CAM

278-81651-20-00

1
Out of stock

32

. BOLT

278-81652-20-00

1
Out of stock

33

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

34

SCREW,PANHEAD (EG9)

98580-05570-00

—

$5.62

In stock

35

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock
