1972 Yamaha DS7 (DS7) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1972 Yamaha DS7 (DS7), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

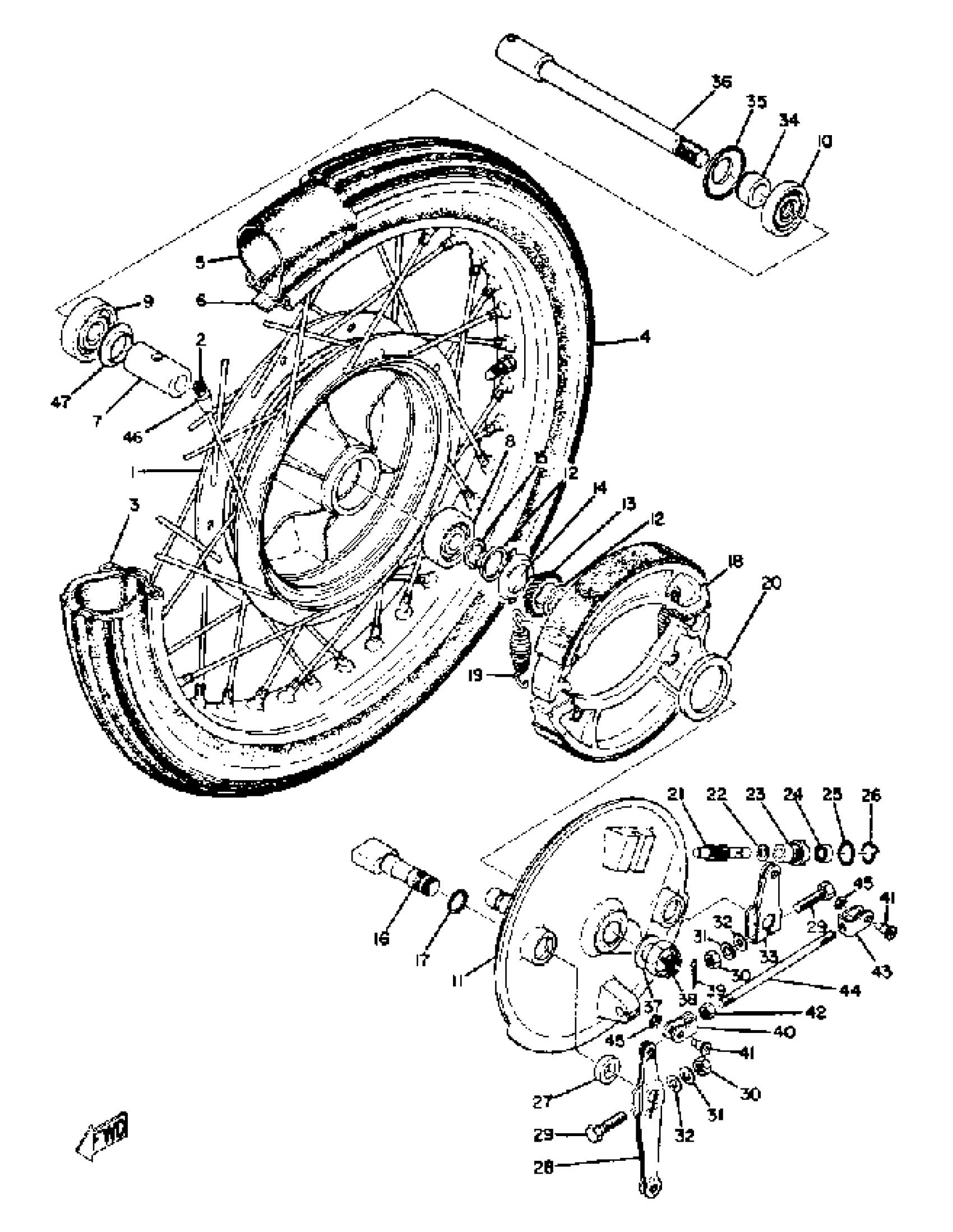

1972 Yamaha DS7 (DS7) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

(246-25111-00-38)

1
Out of stock

2

SPOKE SET, FRONT

152-25104-00-00

1
Out of stock

3

RIM 1.60X18

(94416-18013-00)

1
Out of stock

4

YOKO 300S18 Y986

(94130-18363-00)

1
Out of stock

5

TUBE (5H5)

94227-18195-00

1
Out of stock

6

BAND, RIM (2J4)

94340-18086-00

1

$16.00

In stock

7

SPACER 136253170000

90560-15136-00

—

$17.45

In stock

8

BEARING

93306-30212-00

1

$33.35

In stock

9

BEARING

93306-30212-00

1

$33.35

In stock

10

OIL SEAL (22X42X7)

93102-22014-00

1

$10.68

In stock

11

BRAKE SHOE PLT ASSEMBLY

(361-25120-10-00)

1
Out of stock

12

WASHER PLATE 214251470000

90201-22283-00

1

$5.38

In stock

13

GEAR, DRIVE

246-25135-00-00

—

$16.98

In stock

14

CLUTCH, METER

246-25149-00-00

1
Out of stock

15

CIRCLIP(1EY)

99009-22400-00

1

$6.17

In stock

16

CAMSHAFT

(4R5-25151-00-00)

1
Out of stock

17

SHIM, CAM SHAFT

148-25353-00-00

—

$6.40

In stock

18

BRAKESHOE SET-2PCS

168-W2535-00-00

1
Out of stock

19

—

$8.09

In stock

20

OIL SEAL, SDD-TYPE

93105-53013-00

1
Out of stock

21

GEAR, METER

214-25138-00-00

—

$18.32

In stock

22

WASHER, PLATE 1832514600

90201-07076-00

—

$5.75

In stock

23

BUSHING

109-25136-00-00

—

$8.78

In stock

24

OIL SEAL (7X14X4-136)

93104-07003-00

—

$7.29

In stock

25

O-RING (26H)

93210-14579-00

—

$5.69

In stock

26

RING, STOP

102-25137-00-00

—
Out of stock

27

SEAL, CAM SHAFT

148-25359-00-00

—
Out of stock

28

LEVER,CAMSHAFT 1

168-25155-00-00

1
Out of stock

29

BOLT(JF7)

97080-06030-00

—

$3.45

In stock

30

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

31

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

32

WASHER, PLATE (371)

90201-06431-00

—
Out of stock

33

LEVER, CAMSHAFT 2

246-25156-00-00

1
Out of stock

34

COLLAR

(90387-15421-00)

1
Out of stock

35

COVER, HUB DUST

(246-25118-00-00)

1
Out of stock

36

AXLE, WHEEL

(278-25181-00-00)

1
Out of stock

37

WASHER, PLAIN

92990-14200-00

—

$1.71

In stock

38

NUT, CASTLE(2UJ)

90171-14056-00

—

$10.57

In stock

39

PIN, COTTER

91490-30030-00

—

$7.15

In stock

40

END, ROD 1

152-25163-00-00

1
Out of stock

41

PIN, SPEC'L SHAPE

90249-06095-00

1
Out of stock

42

NUT(650)

95380-06700-00

—

$6.17

In stock

43

END, ROD 2

152-25164-00-00

1
Out of stock

44

ROD, CONNECTING

(152-25161-00-00)

1
Out of stock

45

CIRCLIP (EU0)

99080-04600-00

1

$1.67

In stock

46

BALANCER, WHEEL

3HT-25398-00-00

—

$6.89

In stock

47

FLANGE, SPACER

146-25115-00-00

—

$6.17

In stock
