1972 Yamaha DS7 (DS7) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1972 Yamaha DS7 (DS7), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

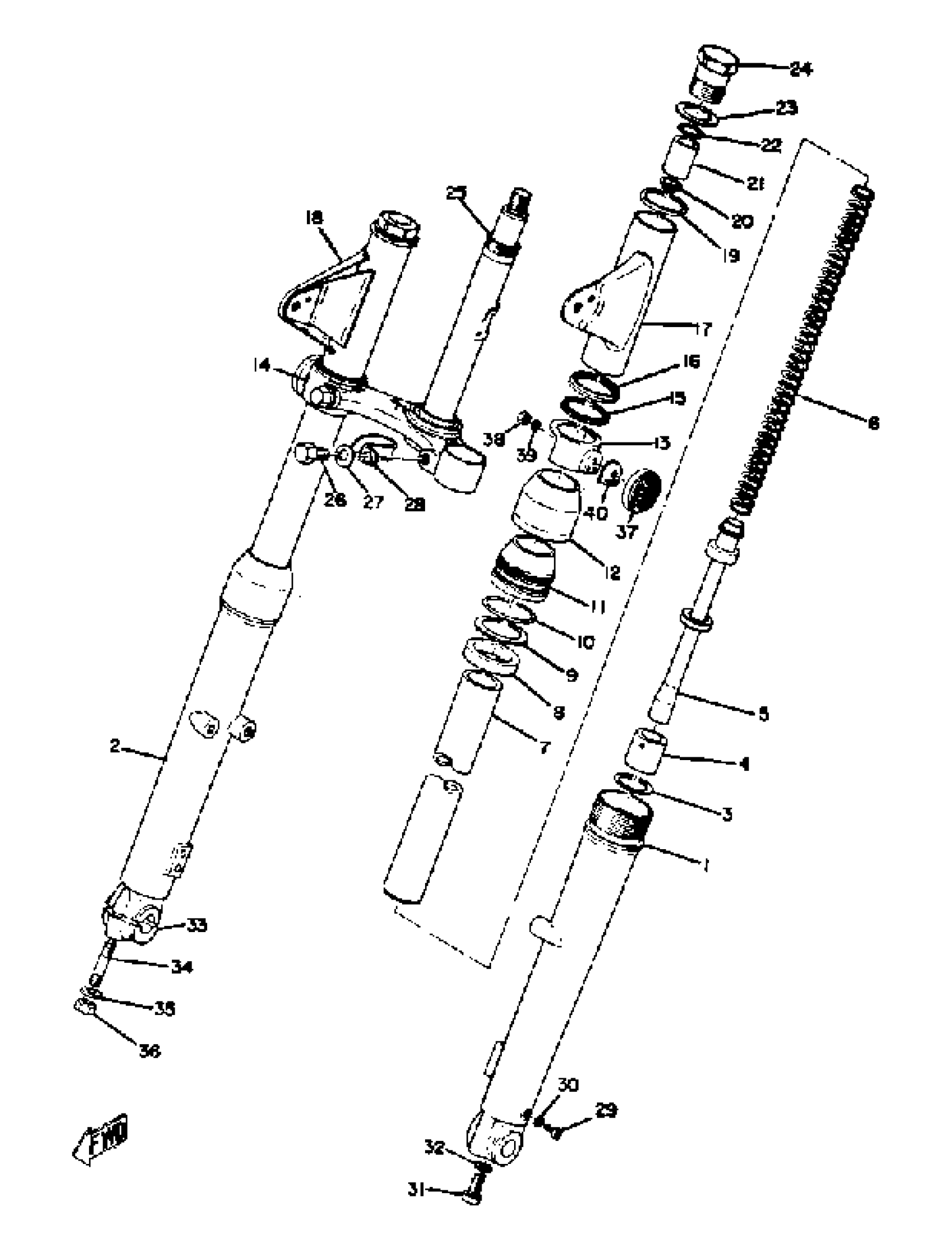

1972 Yamaha DS7 (DS7) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(278-23100-61-52)

1
Out of stock

1

TUBE, OUTER 1

(278-23126-50-00)

1
Out of stock

2

TUBE, OUTER 2

(278-23136-50-00)

1
Out of stock

3

. CIRCLIP, INNER

93450-30033-00

1
Out of stock

4

PISTON, FRONT FORK

(278-23171-50-00)

1
Out of stock

5

CYLINDER, FRONT FORK

(278-23170-50-00)

1
Out of stock

6

SPRING, FRONT FORK

(278-23141-50-00)

1
Out of stock

7

TUBE, INNER 1

(278-23124-50-00)

1
Out of stock

8

OIL SEAL

584-23145-50-00

1

$52.72

In stock

9

.. WASHER, OIL SEAL

214-23146-00-00

1
Out of stock

10

.. CLIP, OIL SEAL

214-23156-00-00

1
Out of stock

11

SEAL,DUST

278-23144-50-00

—

$31.64

In stock

12

. COVER, DUST SEAL

278-23148-50-00

1
Out of stock

13

COVER, OUTER 1

(278-23122-61-00)

1
Out of stock

14

COVER, OUTER 2

(278-23132-61-00)

1
Out of stock

15

. GASKET (LAMP STAY)

291-23163-61-00

1
Out of stock

16

. GUIDE, COVER LOWER

447-23116-52-00

1
Out of stock

17

COVER, UPPER 1

(278-23121-50-52)

1
Out of stock

18

COVER, UPPER 2

(278-23131-50-52)

1
Out of stock

19

. GUIDE, COVER UPPER

168-23115-00-00

1
Out of stock

20

. SEAT, SPRING UPPER

278-23142-50-00

1
Out of stock

21

SPACER

(214-23118-00-00)

1
Out of stock

22

. GASKET

214-23114-00-00

1
Out of stock

23

WASHER, CAP

(256-23112-61-00)

1
Out of stock

24

BOLT, CAP

(256-23111-60-00)

1
Out of stock

25

UNDER BRACKET

(278-23340-31-33)

1
Out of stock

26

BOLT 1

(278-23346-50-00)

1
Out of stock

27

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

28

HOLDER, CABLE 1

(256-23318-60-00)

1
Out of stock

29

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

30

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

31

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

32

GASKET

509-23158-L0-00

—

$14.34

In stock

33

HOLDER, AXLE

(278-23167-50-00)

1
Out of stock

34

BOLT, STUD (278)

90116-08261-00

—
Out of stock

35

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

36

NUT(6L2)

95333-08600-00

—

$3.20

In stock

37

. REFLECTOR, FRONT 1

341-85111-00-00

1
Out of stock

38

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

39

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

40

COVER, RFLCTR STAY

(256-23162-60-00)

1
Out of stock
