1972 Yamaha DS7 (DS7) Oil Tank Diagram

← All diagrams

Find the part on the Oil Tank diagram for your 1972 Yamaha DS7 (DS7), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

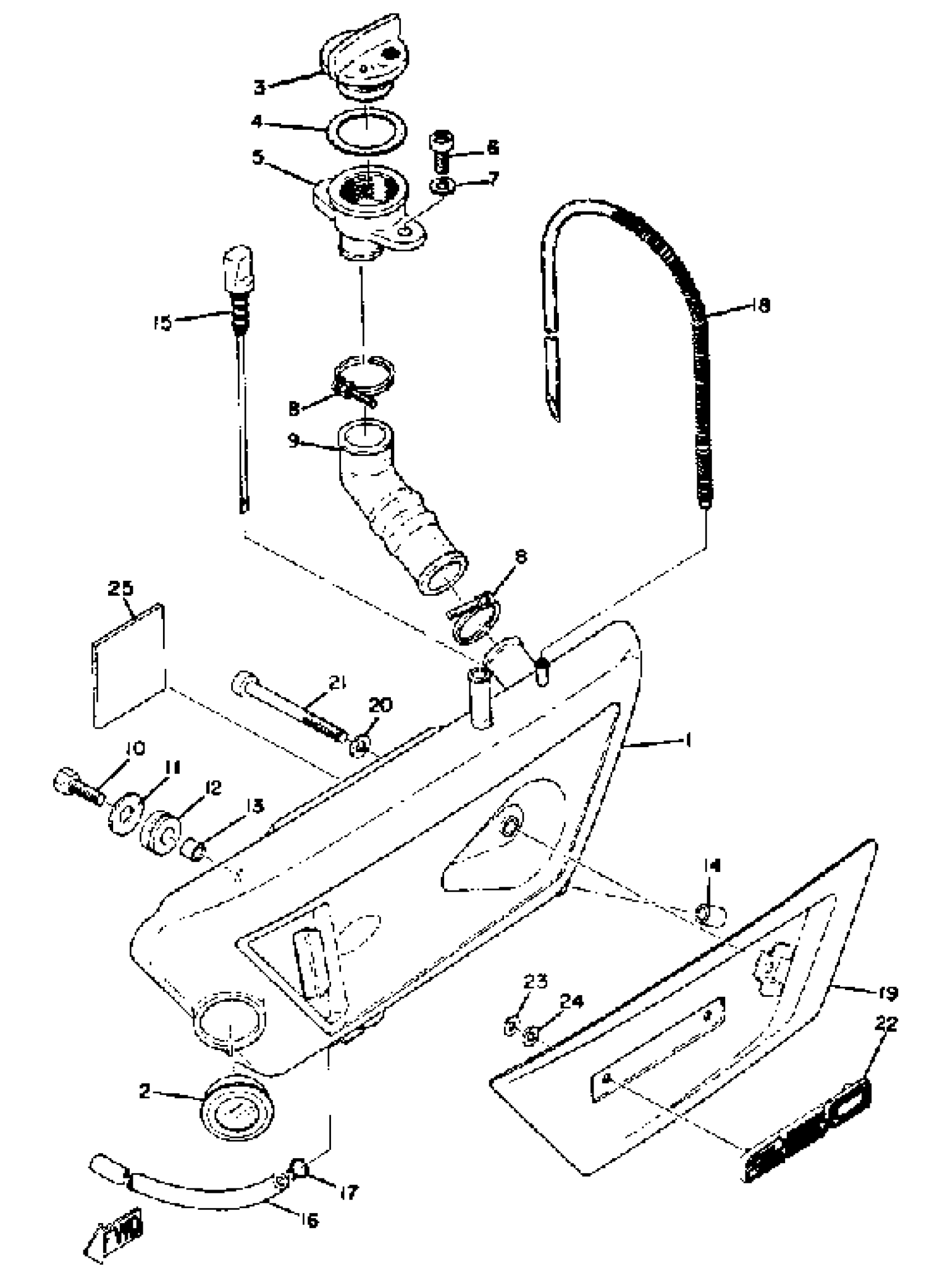

1972 Yamaha DS7 (DS7) Oil Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL TANK ASSEMBLY

(278-21705-00-52)

1
Out of stock

2

GAUGE, LEVEL

214-21761-00-00

—
Out of stock

3

BODY, OIL TANK CAP

1A0-21771-00-00

1
Out of stock

4

GASKET 214217720000

90430-29114-00

1
Out of stock

5

TUBE, FILLER 1

278-21752-00-00

1
Out of stock

6

SCREW PAN HEAD

98580-06020-00

1
Out of stock

7

WASHER, SPRING

92995-06100-00

1
Out of stock

8

CLAMP, HOSE

(90460-24005-00)

1
Out of stock

9

BOSS, CONNECTOR

(278-21753-00-00)

1
Out of stock

10

BOLT, HEXAGON

97017-06020-00

1
Out of stock

11

WASHER, PLATE

90201-06380-00

1
Out of stock

12

GROMMET 839774310000

90480-14023-00

1
Out of stock

13

COLLAR (J10)

90387-06026-00

1
Out of stock

14

DAMPER, OIL TANK

437-21779-00-00

—
Out of stock

15

GAUGE, OIL

1A0-21792-00-00

1
Out of stock

16

HOSE (L700)

90445-09122-00

—
Out of stock

17

CLIP 101235600

90467-08003-00

—
Out of stock

18

PIPE, OIL TNK BRTHR

(278-21745-00-00)

1
Out of stock

19

COVER

(278-21788-00-52)

1
Out of stock

20

WASHER, SPRING

92995-06100-00

1
Out of stock

21

SCREW PAN HEAD

98580-06565-00

—
Out of stock

22

EMBLEM 6

(280-21786-02-52)

1
Out of stock

23

NUT SPRING 116283170100

90183-04005-00

—
Out of stock

24

WASHER PLATE 174283160000

90202-04003-00

—
Out of stock

25

SEAL

(214-21268-00-00)

1
Out of stock
