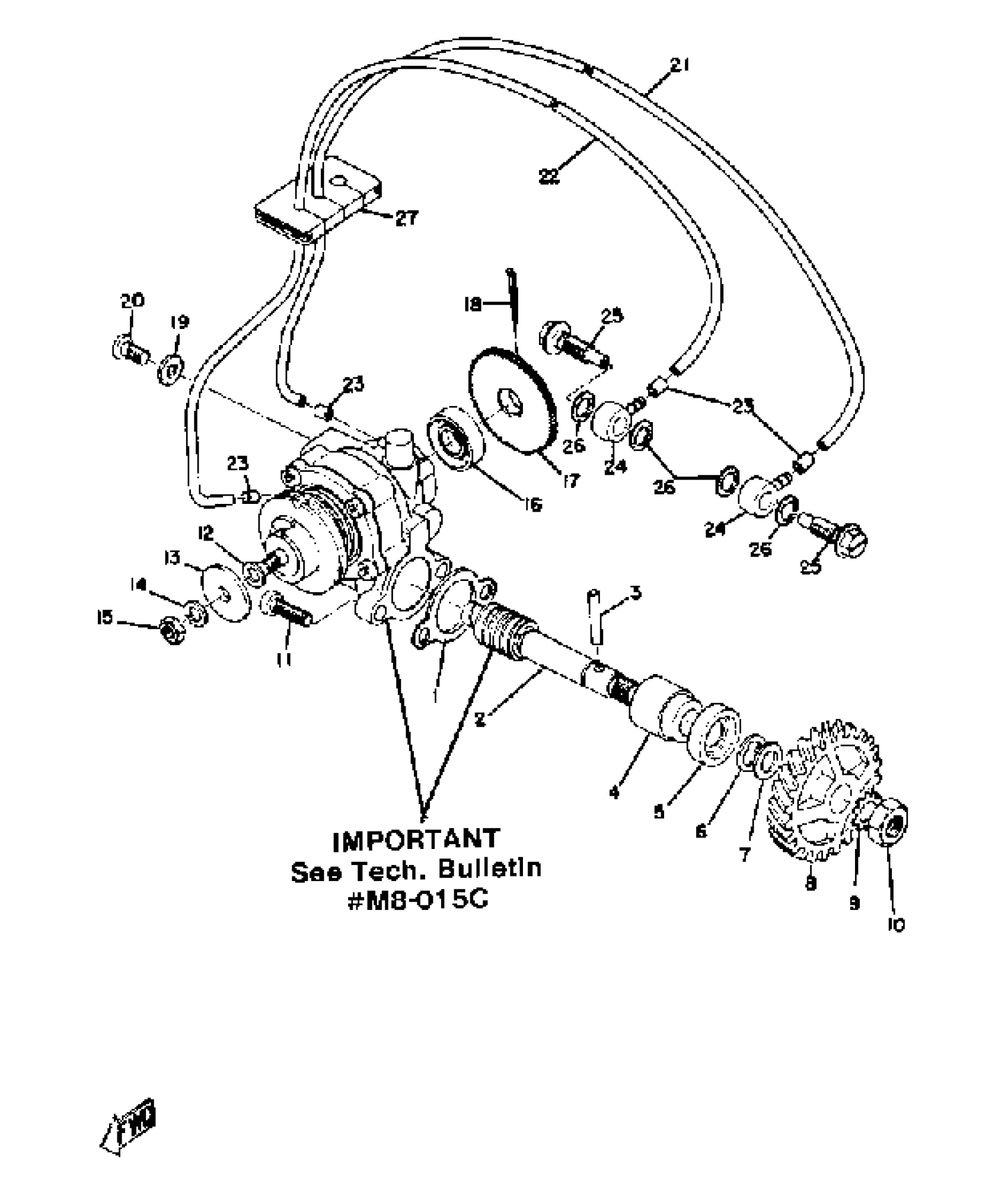

Yamaha DS7 (DS7) 1972 OIL PUMP Diagram

#

Description
Price

1

GASKET, PUMP CASE

126-13116-01-00

$6.46

3

PIN,DOWEL (137)

93603-22028-00

$2.04

4

METAL, WORM SHAFT OUTER

137-13176-00-00

Unavailable

5

OIL SEAL (10X22X7-137)

93101-10002-00

$6.22

6

CIRCLIP(2R6)

99001-08600-00

$5.75

7

WASHER, PLATE(52H)

90201-105J4-00

$6.40

8

GEAR, PUMP DRIVE

(280-13178-00-00)

Unavailable

9

WASHER (688)

92990-08400-00

$3.21

10

. NUT

95380-08700-00

$3.05

11

SCREW, PAN HEAD(6B0)

97885-05016-00

$4.09

12

SHIM,PLUNGER

137-13137-00-10

$5.99

13

PLATE, ADJUSTING

137-13138-01-00

Unavailable

14

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

15

NUT, HEXAGON (663)

95380-05600-00

$6.08

16

OIL SEAL (J10)

93101-10090-00

$5.75

17

PLATE, STARTER

(137-13128-00-00)

Unavailable

18

. PIN, COTTER

91401-12018-00

Unavailable

19

GASKET 137131870000

90430-04004-00

Unavailable

20

SCREW, BIND

98980-04008-00

$3.05

21

HOSE (L700)

90445-05M07-00

$5.27

22

HOSE (L700)

90445-05M07-00

$5.27

23

CLIP (214-13164-00)

90468-02033-00

Unavailable

24

BANJO, DELIVERY PIPE

214-13162-01-00

Unavailable

25

BOLT UNION 137131650000

90401-06001-00

Unavailable

26

GASKET(3FP)

90430-06224-00

Unavailable

27

HOLDER, OIL PIPE

278-13174-00-00

Unavailable
