1972 Yamaha DS7 (DS7) Crank - Piston Diagram

← All diagrams

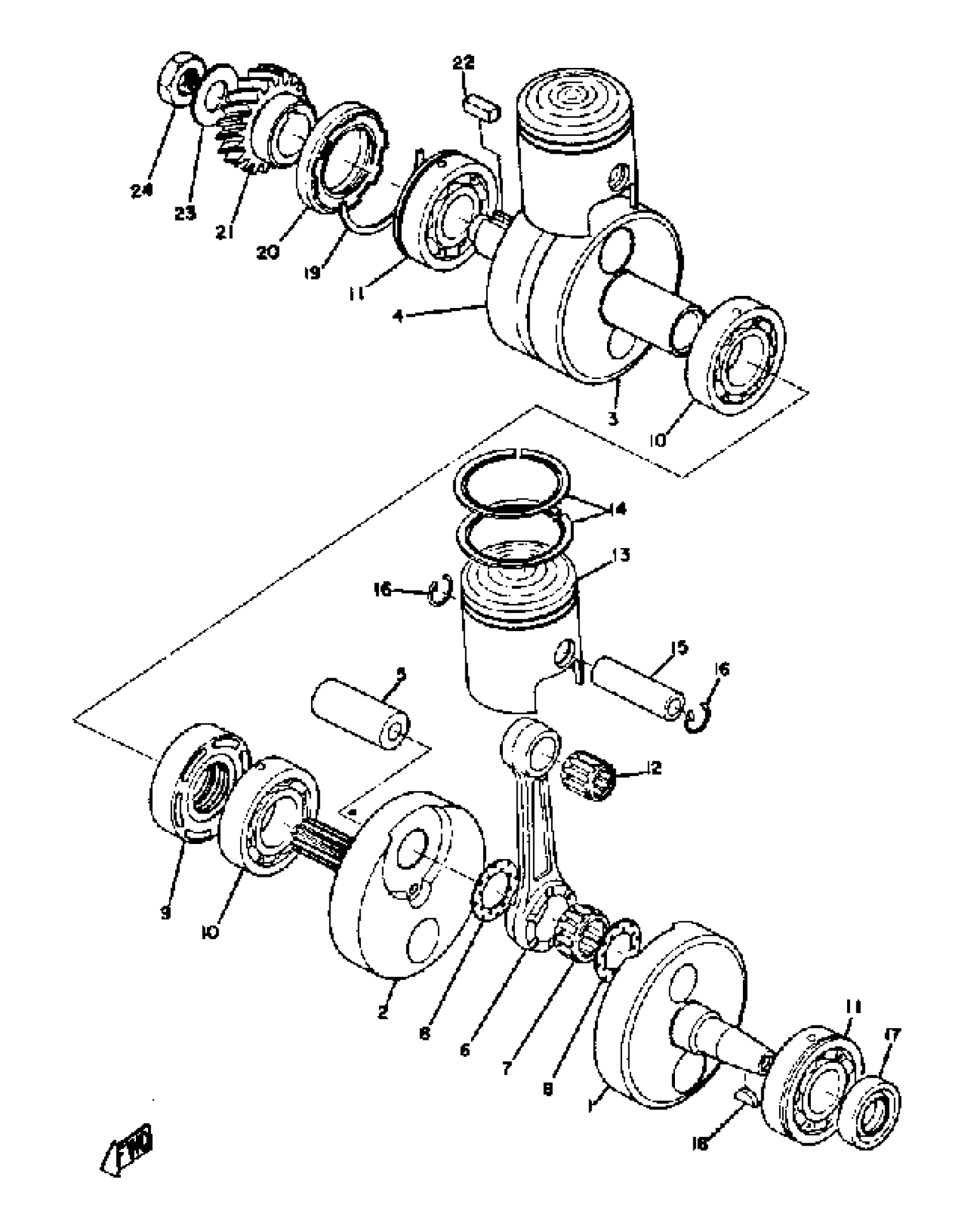

Find the part on the Crank - Piston diagram for your 1972 Yamaha DS7 (DS7), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha DS7 (DS7) Crank - Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANK 1

(278-11412-00-00)

1
Out of stock

1

CRANKSHAFT ASSEMBLY

(360-11400-00-00)

1
Out of stock

2

CRANK 2

(278-11422-00-00)

1
Out of stock

3

CRANK 3

(278-11432-00-00)

1
Out of stock

4

CRANK 4

(278-11442-00-00)

1
Out of stock

5

PIN, CRANK

8G8-11681-00-00

1

$24.98

In stock

6

ROD, CONNECTING

34X-11651-00-00

—

$77.82

In stock

7

BEARING, CYLINDRICAL(3SB)

93310-422C8-00

1

$42.77

In stock

8

WASHER (29L)

90209-22248-00

—
Out of stock

9

. SEAL, LABYRINTH 1

278-11515-00-00

1
Out of stock

10

1

$68.89

In stock

11

BEARING(1UA)

93306-30549-00

1
Out of stock

12

BEARING, NEEDLE (24X)

93310-216L2-00

1

$28.54

In stock

13

PISTON STD (53.96MM STD)

280-11631-00-96

1
Out of stock

13

PISTON 1 O/S 0.25 (54.25MM 1ST O.S)

280-11635-00-00

1
Out of stock

13

PISTON 2 O/S 0.50 (54.50MM 2ND O.S)

280-11636-00-00

1
Out of stock

14

PISTON RINGSET STD (STD)

280-11601-00-00

1
Out of stock

14

PISTON RINGSET 1ST (1ST O.S.)

280-11601-10-00

1
Out of stock

14

PISTON RINGSET 2ND (2ND O.S.)

280-11601-20-00

1
Out of stock

15

PIN,PISTON

280-11633-00-00

—

$27.37

In stock

16

CIRCLIP (137-11634-00)

93450-17025-00

—

$6.17

In stock

17

OIL SEAL, SW-TYPE

93103-20046-00

1
Out of stock

18

KEY,WOODRUFF

90280-04005-00

1
Out of stock

19

CIRCLIP

278-17424-01-00

—
Out of stock

20

OIL SEAL, SW-TYPE

(93103-40058-00)

1
Out of stock

21

GEAR, PRI DRIVE 000

(280-16111-01-00)

1
Out of stock

22

KEY, STRAIGHT (584)

90282-07023-00

—
Out of stock

23

SPRING

214-16119-00-00

—
Out of stock

24

PISTON KIT

(280-11630-00-00)

1
Out of stock

24

PISTON KIT

(280-11630-10-00)

1
Out of stock

24

PISTON KIT

(280-11630-20-00)

1
Out of stock

24

NUT

90170-16425-00

—
Out of stock
