1972 Yamaha DS7 (DS7) Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1972 Yamaha DS7 (DS7), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

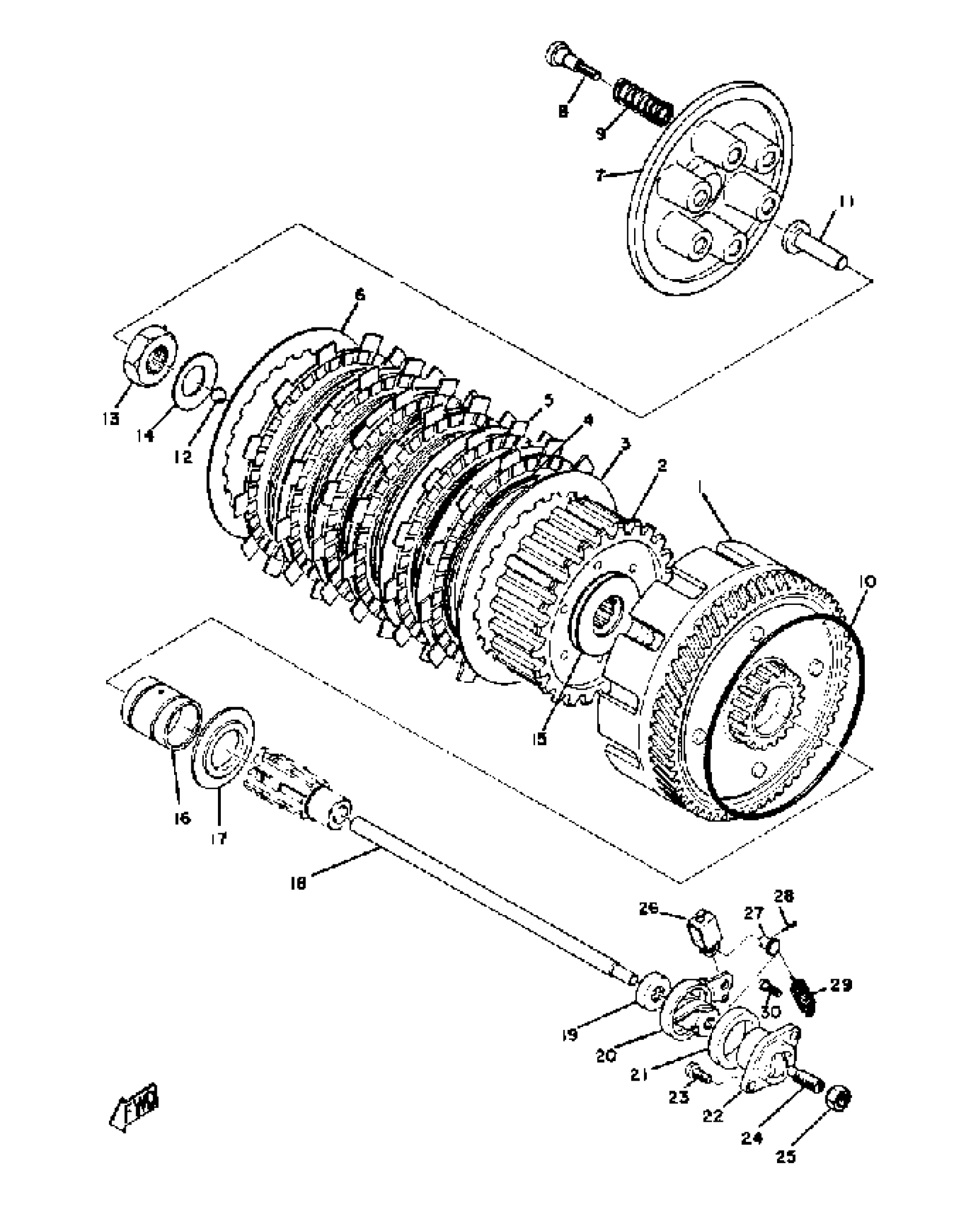

1972 Yamaha DS7 (DS7) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRI DRVN GEAR

(280-16150-01-00)

1
Out of stock

1

CLUTCH ASSEMBLY

(280-16301-00-00)

1
Out of stock

2

. CLUTCH BOSS ASSEMBLY 001

360-16370-00-00

1
Out of stock

3

. PLATE, CLUTCH 1

214-16324-00-00

1
Out of stock

4

. RING, CUSHION

168-16367-00-00

1
Out of stock

5

PLATE, FRICTION

5Y1-16331-01-00

1

$25.90

In stock

6

PLATE, CLUTCH 2

360-16325-10-00

1
Out of stock

6

PLATE, CLUTCH 2

168-16325-10-00

1

$13.32

In stock

7

. PLATE, PRESSURE 1

214-16351-00-00

1
Out of stock

8

SCREW, SPECL SHAPE

(90149-05147-00)

1
Out of stock

9

. UNAVAILABLE IN PRICE BOOK (183-16333-70)

90501-90123-00

1
Out of stock

10

. O-RING

93211-15149-00

1
Out of stock

11

ROD, PUSH

174-16356-00-00

1
Out of stock

12

BALL

93505-16006-00

1

$2.22

In stock

13

NUT

90170-18089-00

1
Out of stock

14

SPRING

214-16119-00-00

—
Out of stock

15

PLATE, THRUST (2)

170-16164-00-00

—
Out of stock

16

SPACER

278-16181-01-00

—
Out of stock

17

PLATE, THRUST 1

(278-16154-00-00)

1
Out of stock

18

ROD, PUSH 2

237-16357-01-00

1
Out of stock

19

OIL SEAL(12E)

93109-08061-00

—

$5.68

In stock

20

PUSH LEVER ASSEMBLY

278-16340-00-00

1
Out of stock

21

SEAL, DUST

214-16347-01-00

1
Out of stock

22

HOUSING, PUSH SCREW

371-16396-00-00

1
Out of stock

23

SCREW,PAN HEAD (646)

98580-05012-00

—

$5.60

In stock

24

BOLT SET 256163430100

90113-08021-00

—
Out of stock

25

NUT

90179-08179-00

—
Out of stock

26

JOINT

214-16389-00-00

—
Out of stock

27

PIN W/HOLE 214163790000

90240-06005-00

—

$10.66

In stock

28

. PIN, COTTER

91401-10015-00

1
Out of stock

29

SPRING, TENSION

90506-10023-00

1
Out of stock

30

HOOK, SPRING

132-16346-00-00

—
Out of stock
