1972 Yamaha DS7 (DS7) Rear ARM - Chain Case Diagram

← All diagrams

Find the part on the Rear ARM - Chain Case diagram for your 1972 Yamaha DS7 (DS7), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

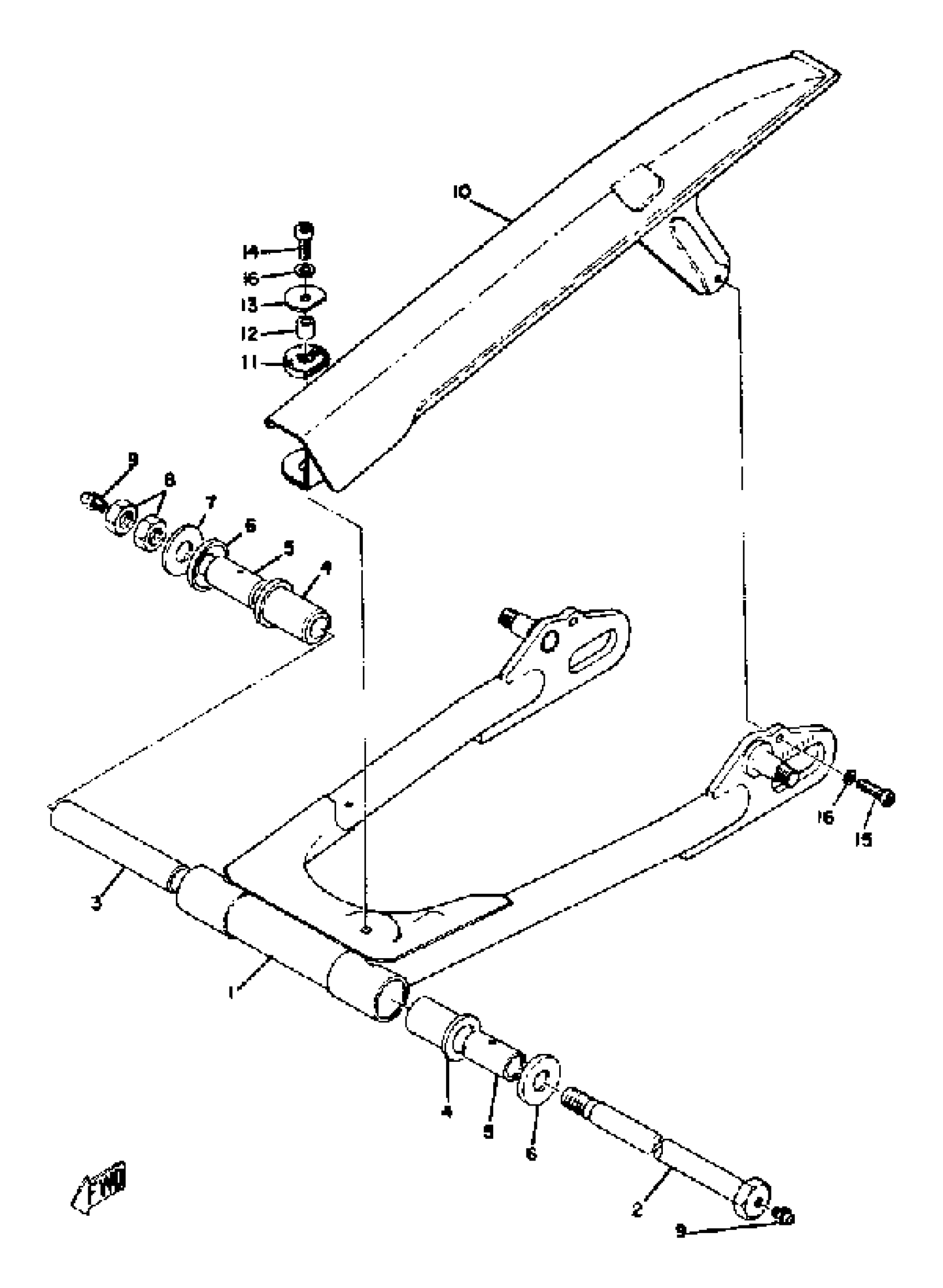

1972 Yamaha DS7 (DS7) Rear ARM - Chain Case Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR ARM

(278-22110-00-33)

1
Out of stock

2

SHAFT, PIVOT

156-22141-00-00

1
Out of stock

3

COLLAR

90387-16128-00

1
Out of stock

4

BUSH 1482212300

90386-22018-00

1

$31.31

In stock

5

COLLAR

90387-16226-00

1
Out of stock

6

COVER,THRUST 1

1A0-22128-00-00

1
Out of stock

7

SHIM,REAR ARM

240-22127-00-00

1

$5.74

In stock

8

NUT,HEXAGON

90170-14147-00

1
Out of stock

9

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

10

CASE, CHAIN

(278-22311-00-93)

1
Out of stock

11

DAMPER, CHAIN CASE

278-22332-00-00

1
Out of stock

12

COLLAR(8R4)

90387-062N2-00

1

$6.94

In stock

13

WASHER, SPEC''L SHAP

90209-06034-00

1
Out of stock

14

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

15

SCREW, PAN HEAD(6E5)

97880-06018-00

1

$4.19

In stock

16

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
