1972 Yamaha DS7 (DS7) Transmission Diagram

← All diagrams

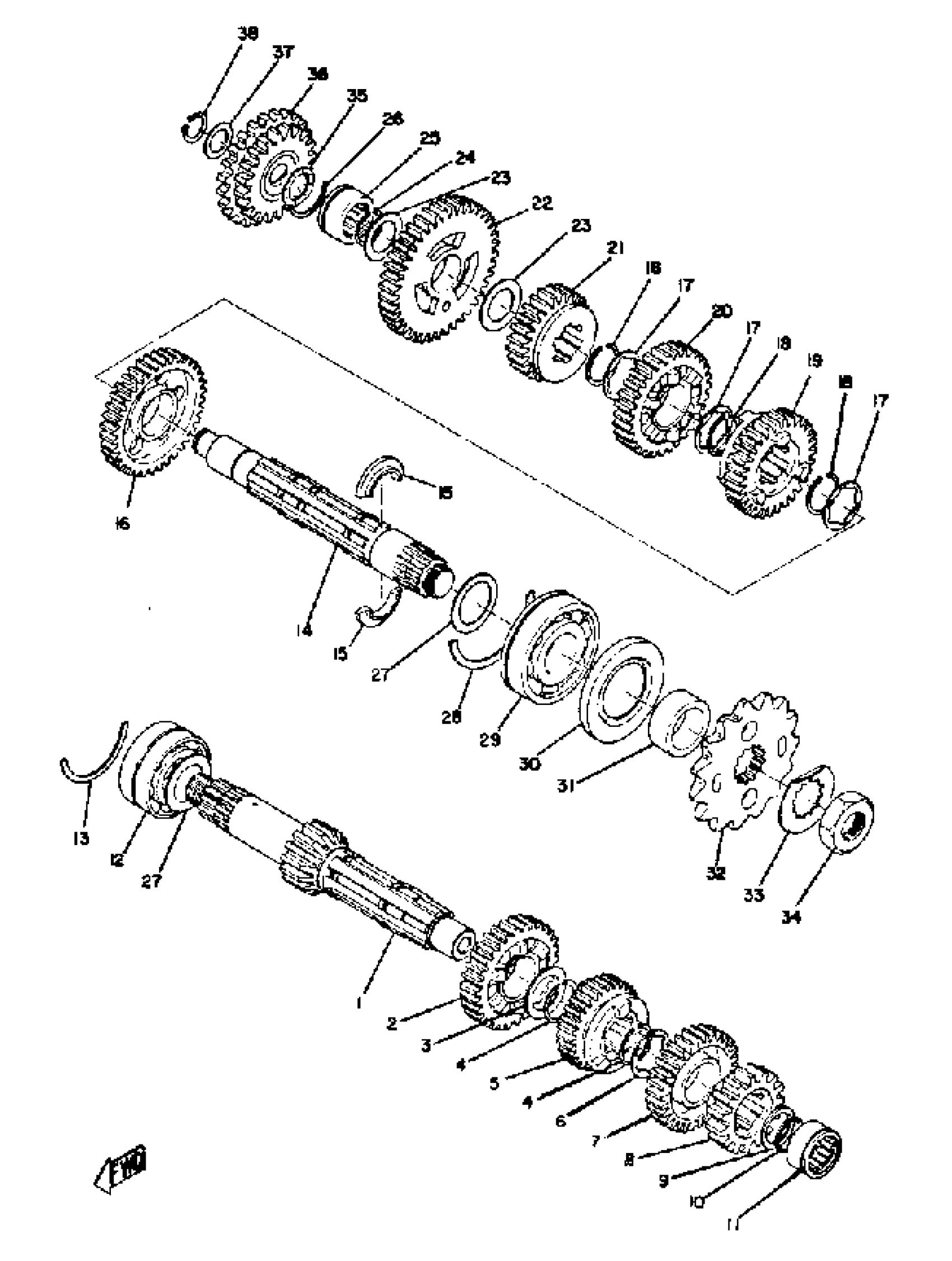

Find the part on the Transmission diagram for your 1972 Yamaha DS7 (DS7), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha DS7 (DS7) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

(278-17411-00-00)

1
Out of stock

2

GEAR, 5TH PINION

(278-17151-00-00)

1
Out of stock

3

WASHER PLATE 152172260000

90201-25490-00

1
Out of stock

4

CIRCLIP (4L0)

93440-25084-00

1

$3.96

In stock

5

GEAR, 3RD PINION

(278-17131-00-00)

1
Out of stock

6

WASHER, SPEC''L SHAP

90209-21106-00

1
Out of stock

7

GEAR, 4TH PINION

(278-17141-00-00)

1
Out of stock

8

GEAR, 2ND PINION

(278-17121-00-00)

1
Out of stock

9

WASHER PLATE 132172160000

90201-20266-00

1
Out of stock

10

CIRCLIP(1AR)

99009-20400-00

1
Out of stock

11

BRG,CYL-CAL ROLLER 36G NT

93311-22027-00

1
Out of stock

12

BRG,R-B 5205 52MM 190G KY

93305-20502-00

—
Out of stock

13

CLIP

278-17414-00-00

1
Out of stock

13

CLIP

(278-17414-09-00)

1
Out of stock

14

AXLE, DRIVE

(278-17421-00-00)

1
Out of stock

15

SPACER, DRIVE AXLE

156-17429-00-00

1
Out of stock

16

GEAR, 2ND WHEEL

(278-17221-00-00)

1
Out of stock

17

WASHER, SPEC''L SHAP

90209-21106-00

1
Out of stock

18

CIRCLIP (4L0)

93440-25084-00

1

$3.96

In stock

19

GEAR, 4TH WHEEL

(278-17241-00-00)

1
Out of stock

20

GEAR, 5TH PINION

(278-17151-00-00)

1
Out of stock

21

GEAR, 5TH WHEEL

(278-17251-00-00)

1
Out of stock

22

GEAR, 1ST WHEEL

(278-17211-00-00)

1
Out of stock

23

WASHER PLATE 168171160000

90201-20278-00

—
Out of stock

24

CIRCLIP(1AR)

99009-20400-00

1
Out of stock

25

BEARING, CYL.#11

93311-42045-00

1
Out of stock

26

CIR CLIP

278-17425-00-00

—
Out of stock

27

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

—
Out of stock

27

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

—
Out of stock

28

CIRCLIP

278-17424-01-00

—
Out of stock

29

BRG,R-B 6305 62MM 225G NK

93306-30504-00

—
Out of stock

30

OIL SEAL (35X62X6-371)

93102-35109-00

—
Out of stock

31

COLLAR(1AE)

90387-253M9-00

—

$34.15

In stock

32

SPROCKET, DRIVE

(156-17461-60-00)

1
Out of stock

32

SPROCKET, DRIVE

(156-17461-70-00)

1
Out of stock

32

SPROCKET DRIVE

9384E-15155-00

1
Out of stock

33

WASHER, LOCK(3LD)

90215-21290-00

—
Out of stock

34

NUT 152174630000

90179-18020-00

—
Out of stock

35

WASHER WAVE 137156430000

90206-15021-00

—

$6.86

In stock

36

IDLE GEAR ASSEMBLY

(278-15650-00-00)

1
Out of stock

37

SHIM, MAIN AXLE (1.0)

164-17417-00-10

—
Out of stock

38

CIRCLIP(1AR)

99009-15400-00

—

$5.10

In stock
