1972 Yamaha DS7 (DS7) Fuel Tank Diagram

← All diagrams

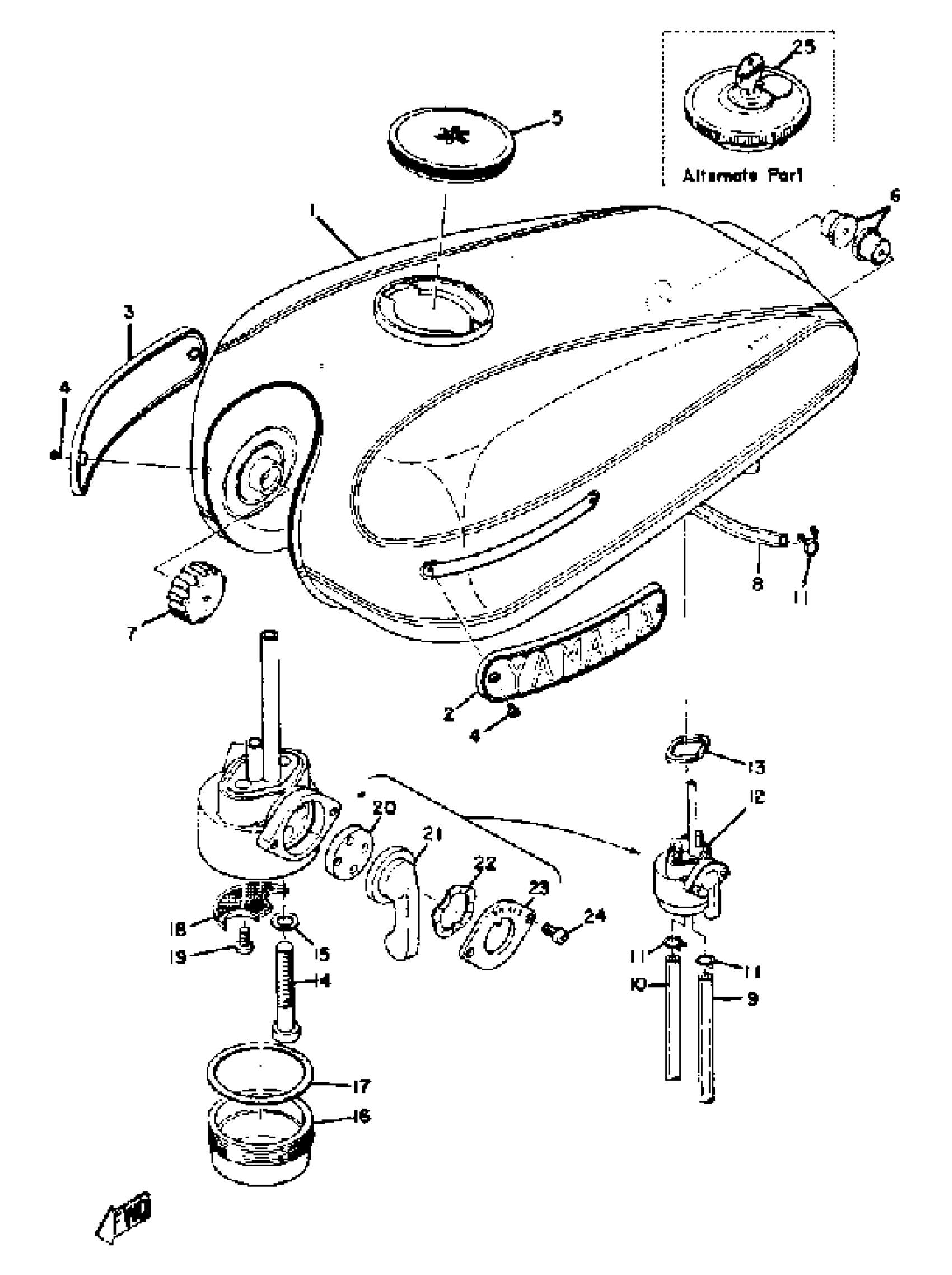

Find the part on the Fuel Tank diagram for your 1972 Yamaha DS7 (DS7), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha DS7 (DS7) Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

(278-24110-00-05)

1
Out of stock

2

EMBLEM 1

278-24161-60-00

1
Out of stock

3

EMBLEM 2

278-24162-60-00

1
Out of stock

4

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

5

CAP ASSY

7V5-24610-01-00

1

$42.77

In stock

6

DAMPER, LOCATING 2

122-24182-01-00

1
Out of stock

7

DAMPER, LOCATING 1

3TB-24181-00-00

1

$12.29

In stock

8

HOSE (L420)

90445-092K1-00

1

$10.63

In stock

9

HOSE (L420)

90445-092K1-00

1

$10.63

In stock

10

HOSE (L420)

90445-092K1-00

1

$10.63

In stock

11

CLIP 101235600

90467-08003-00

1

$6.13

In stock

12

FUEL COCK ASSEMBLY 1

360-24500-00-00

1
Out of stock

13

GASKET, BODY

168-24512-00-00

1

$12.27

In stock

14

SCREW, PAN HEAD(6H4)

97885-06035-00

1

$6.38

In stock

15

GASKET(J17)

90430-06218-00

1

$2.68

In stock

16

. CUP, FILTER

360-24521-00-00

1
Out of stock

17

. GASKET

168-24522-00-00

1
Out of stock

18

. NET, FILTER 2

168-24515-00-00

1
Out of stock

19

SCREW, PAN HEAD (J10)

98580-03008-00

—

$2.23

In stock

20

VALVE

137-24523-00-00

—

$6.57

In stock

21

. LEVER, COCK

168-24524-00-00

1
Out of stock

22

WASHER, WAVE

132-24518-00-00

—
Out of stock

23

PLATE, LEVER FITTING

(132-24525-01-00)

1
Out of stock

24

SCREW, PAN HEAD (J10)

98580-03008-00

—

$2.23

In stock

25

CAP ASSY

7V5-24610-01-00

1

$42.77

In stock
