1972 Yamaha DS7 (DS7) Speedometer - Tachometer Diagram

← All diagrams

Find the part on the Speedometer - Tachometer diagram for your 1972 Yamaha DS7 (DS7), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

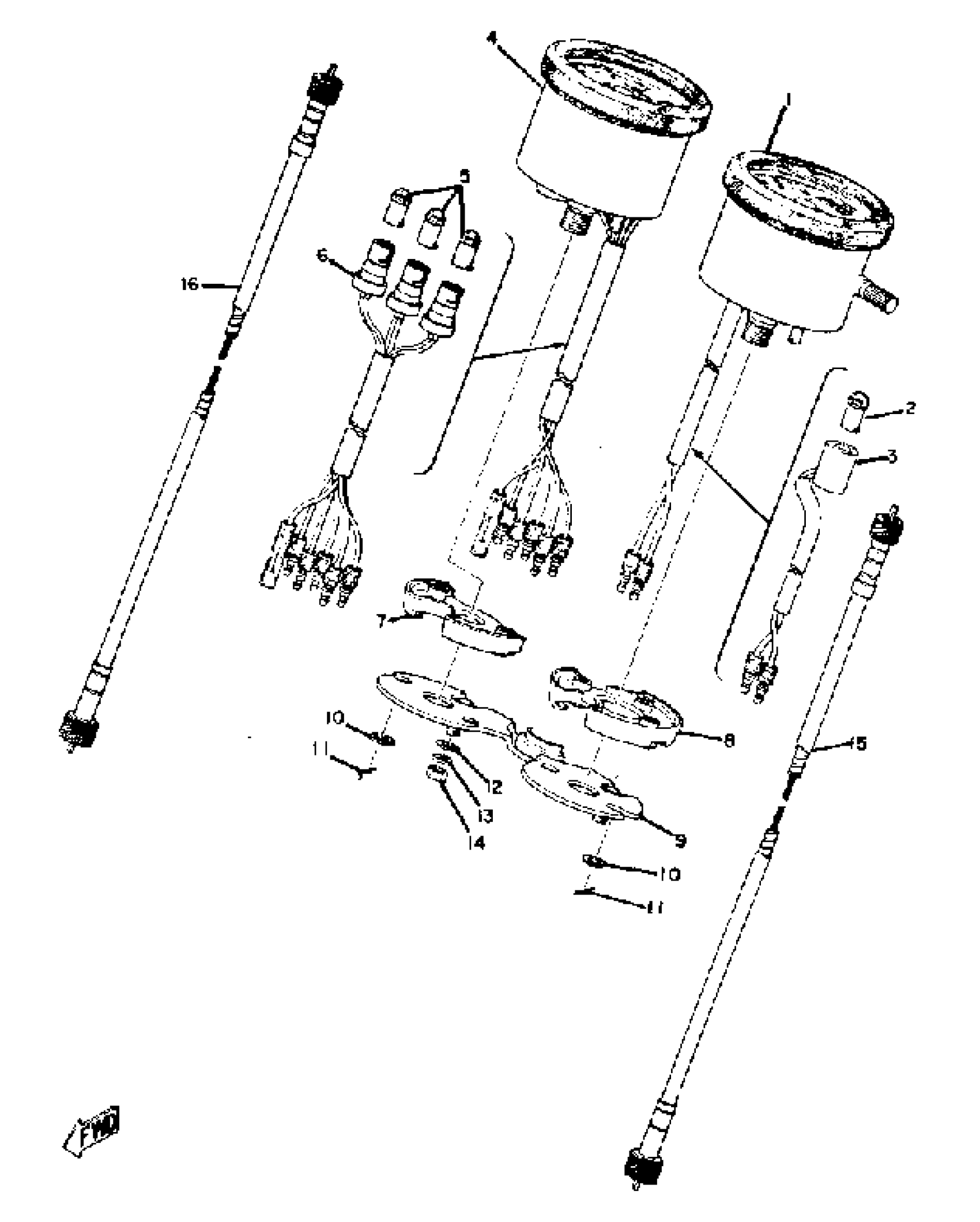

1972 Yamaha DS7 (DS7) Speedometer - Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

278-83570-40-00

1
Out of stock

2

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

3

SOCKET, METER

(278-83536-20-00)

1
Out of stock

4

TACHOMETER ASSEMBLY

(307-83540-00-00)

1
Out of stock

5

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

6

SOCKET CORD ASSEMBLY

(278-83520-00-00)

1
Out of stock

7

DAMPER

(278-83523-00-00)

1
Out of stock

8

DAMPER 2

(278-83526-00-00)

1
Out of stock

9

BRACKET, METER

(278-83519-00-00)

1
Out of stock

10

WASHER 214835240000

90209-05029-00

1

$6.86

In stock

11

CLIP (156-83525-00)

90468-10050-00

1

$2.31

In stock

12

WASHER, PLATE (371)

90201-06431-00

1
Out of stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

14

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

15

SPEEDOMETER CABLE ASSY

2A6-83550-10-00

1
Out of stock

16

TACHOMETER CABLE (278-83560-00)

278-83560-01-00

1
Out of stock
