1969 Yamaha DS6C (DS6C) Shifter Diagram

← All diagrams

Find the part on the Shifter diagram for your 1969 Yamaha DS6C (DS6C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

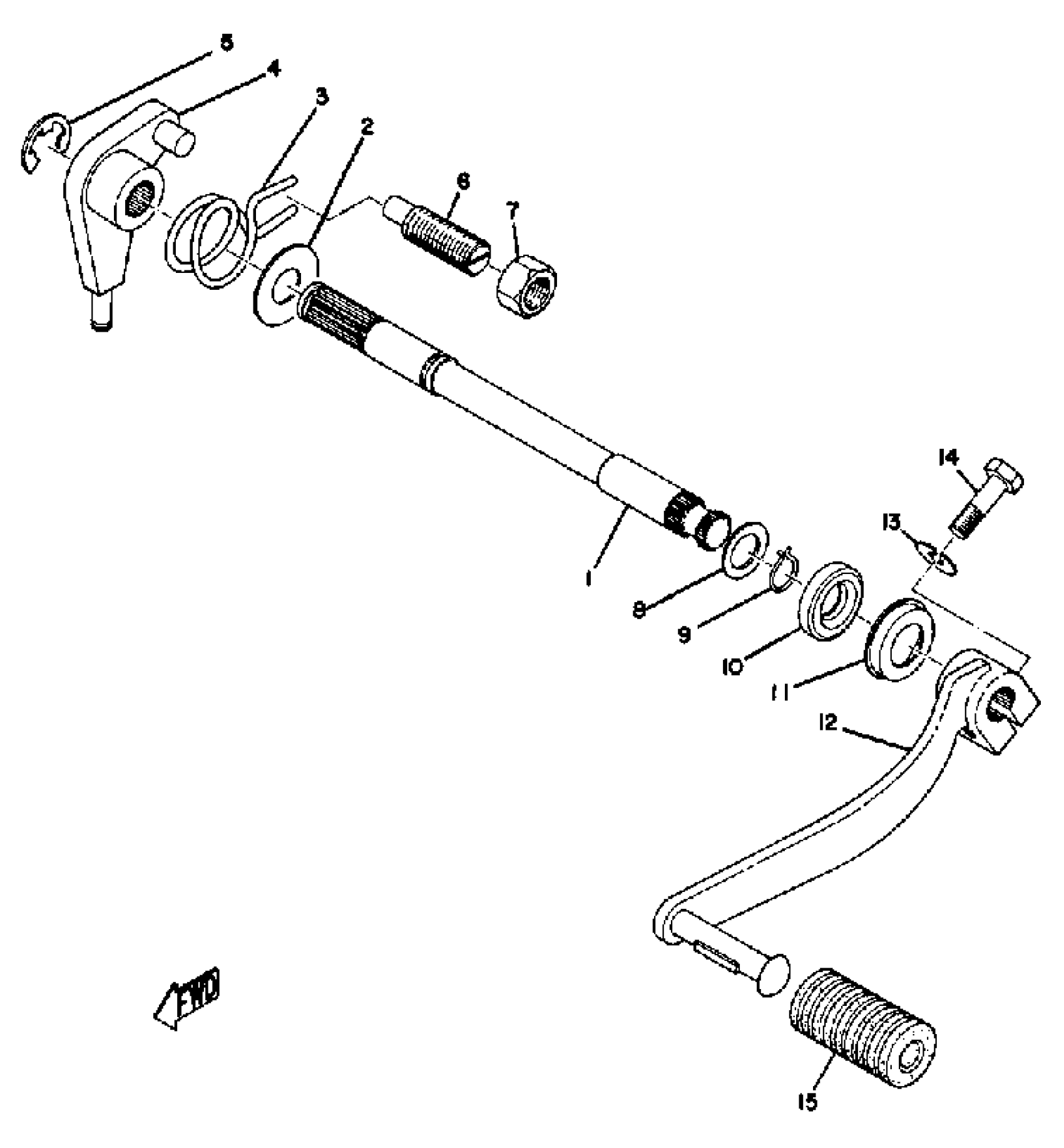

1969 Yamaha DS6C (DS6C) Shifter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, SHIFT

(170-18125-00-00)

1
Out of stock

2

WASHER, PLATE

(90201-12186-00)

1
Out of stock

3

SPRING, TORSION

(90508-40209-00)

1
Out of stock

4

SHIFT LEVER ASSEMBLY

(150-18120-00-00)

1
Out of stock

5

CIRCLIP (137)

93430-10015-00

1
Out of stock

6

SCREW, SPEC''L SHAPE

(90149-10045-00)

1
Out of stock

7

NUT,HEXAGON

90170-10044-00

1
Out of stock

8

WASHER,PLATE

90201-12168-00

1
Out of stock

9

CLIP, SHIFT SHAFT

(150-18135-00-00)

1
Out of stock

10

SEAL, OIL (30X)

93102-12321-00

1

$10.14

In stock

11

SEAL, CHANGE SHAFT

170-18132-00-00

1
Out of stock

12

PEDAL, SHIFT

(170-18111-01-00)

1
Out of stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

14

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

15

COVER, CHANGE PEDAL

132-18113-01-00

1
Out of stock
