1969 Yamaha DS6C (DS6C) Gear Unit Diagram

← All diagrams

Find the part on the Gear Unit diagram for your 1969 Yamaha DS6C (DS6C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

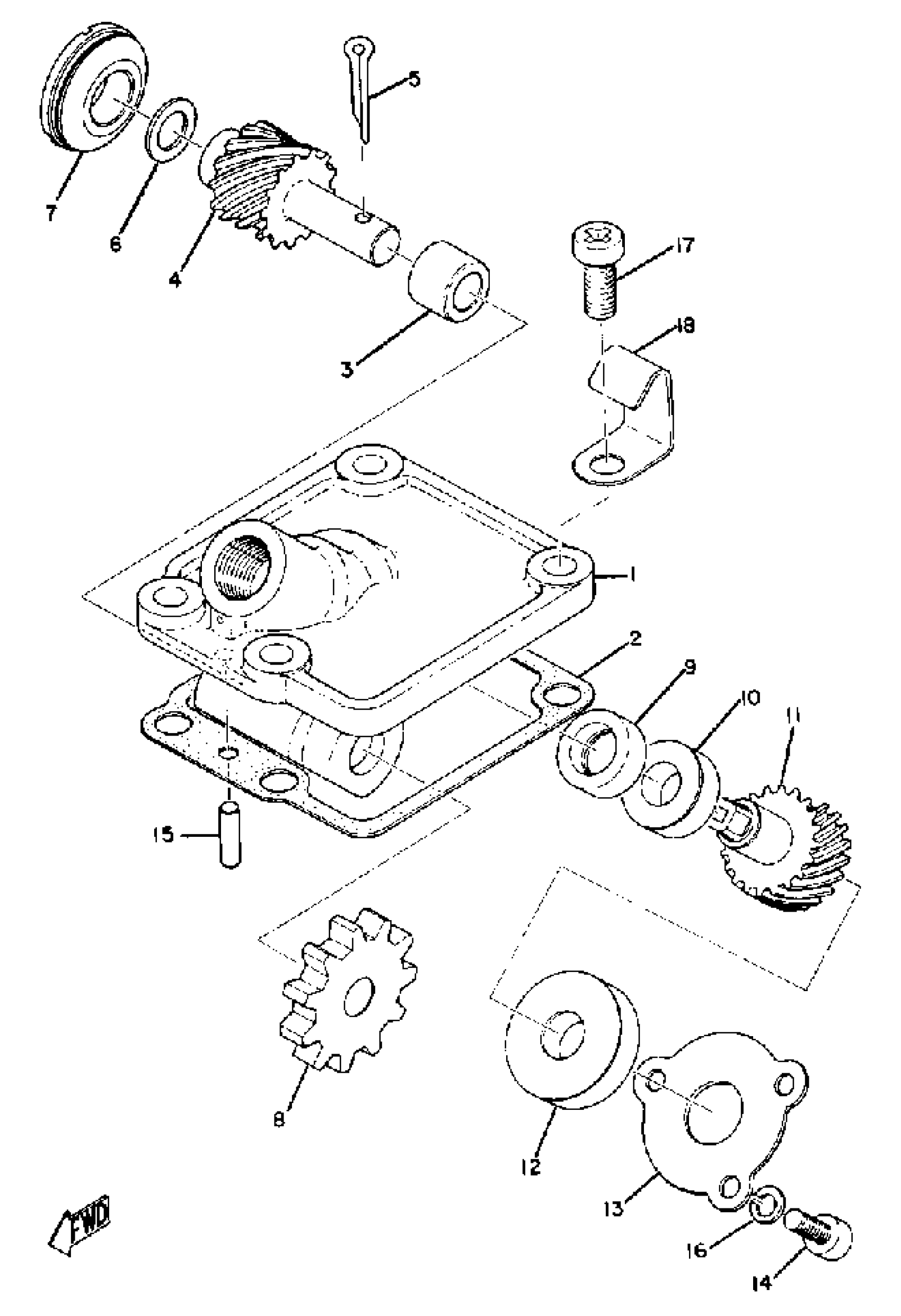

1969 Yamaha DS6C (DS6C) Gear Unit Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, TACH GEAR

(170-17811-00-00)

1
Out of stock

2

GASKET

(156-17818-00-00)

1
Out of stock

3

BUSH, SOLID

(90380-08006-00)

1
Out of stock

4

GEAR, DRIVE

(156-17831-00-00)

1
Out of stock

5

PIN COTTER

91490-30025-00

1
Out of stock

6

SHIM

(150-17837-00-07)

1
Out of stock

7

BUSH, DR GEAR OUTER

(152-17833-00-00)

1
Out of stock

8

GEAR, PRIMARY

(159-17851-00-00)

1
Out of stock

9

OIL SEAL,SDO-TYPE

93109-10023-00

1
Out of stock

10

BUSH, SOLID

(90380-10008-00)

1
Out of stock

11

GEAR, DRIVEN

(156-17841-00-00)

1
Out of stock

12

BUSH, DRVN GR OUTER

(156-17843-00-00)

1
Out of stock

13

COVER, HOUSING

(156-17821-00-00)

1
Out of stock

14

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

15

PIN,DOWEL (137)

93604-14012-00

1

$1.88

In stock

16

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

17

SCREW, PAN

98507-06014-00

—

$6.18

In stock

18

CLAMP

(156-82594-00-00)

1
Out of stock
