1969 Yamaha DS6C (DS6C) Clutch Diagram

← All diagrams

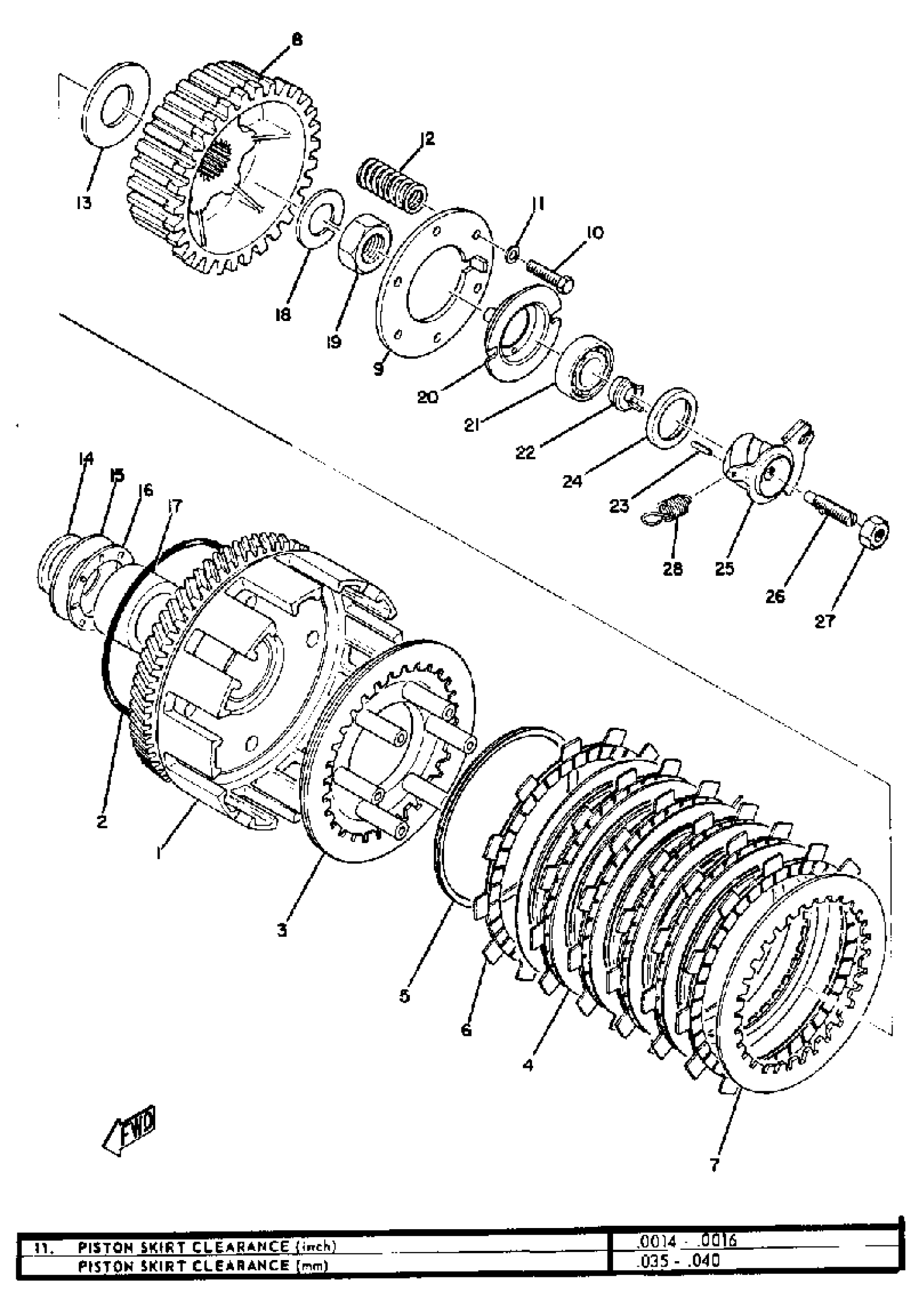

Find the part on the Clutch diagram for your 1969 Yamaha DS6C (DS6C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Yamaha DS6C (DS6C) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRI DRVN GEAR

(246-16150-00-00)

1
Out of stock

1

CLUTCH ASSEMBLY

(246-16301-00-00)

1
Out of stock

2

O-RING

(93211-10097-00)

1
Out of stock

3

PLATE, PRESSURE 1

(168-16351-91-00)

1
Out of stock

4

PLATE, CLUTCH 2

168-16325-10-00

1

$13.32

In stock

5

. RING, CUSHION

168-16367-00-00

1
Out of stock

6

PLATE, FRICTION

5Y1-16331-01-00

1

$25.90

In stock

7

PLATE, CLUTCH 1

168-16324-10-00

—

$19.09

In stock

8

BOSS, CLUTCH

(170-16371-00-00)

1
Out of stock

9

PLATE, PRESSURE 2

(168-16352-00-00)

1
Out of stock

10

SCREW, HEXAGON

(90153-05012-00)

1
Out of stock

11

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

12

SPRING, COMPRESSION

(90501-20127-00)

1
Out of stock

13

PLATE, THRUST (2)

170-16164-00-00

1
Out of stock

14

WASHER, PLATE(1FK)

90201-252K4-00

—
Out of stock

15

PLATE, THRUST (2)

170-16164-00-00

1
Out of stock

16

BEARING, FLAT #41

93341-23504-00

1
Out of stock

17

SPACER 1

(170-16181-00-00)

1
Out of stock

18

SPRING

214-16119-00-00

—
Out of stock

19

NUT

90170-18089-00

1
Out of stock

20

CROWN, PUSH

(170-16348-00-00)

1
Out of stock

21

BEARING, CYLINDER.#16

(93316-00301-00)

1
Out of stock

22

PLUG, PUSH

(168-16349-00-00)

1
Out of stock

23

PIN, DOWEL

93603-14026-00

—
Out of stock

24

OIL SEAL

93101-25030-00

1
Out of stock

25

PUSH LEVER ASSEMBLY

(170-16340-00-00)

1
Out of stock

26

BOLT, SET

(90113-08020-00)

1
Out of stock

27

. NUT

95380-08700-00

1

$3.07

In stock

28

SPRING, TENSION

90506-10023-00

1
Out of stock
