1969 Yamaha DS6C (DS6C) Kick Diagram

← All diagrams

Find the part on the Kick diagram for your 1969 Yamaha DS6C (DS6C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

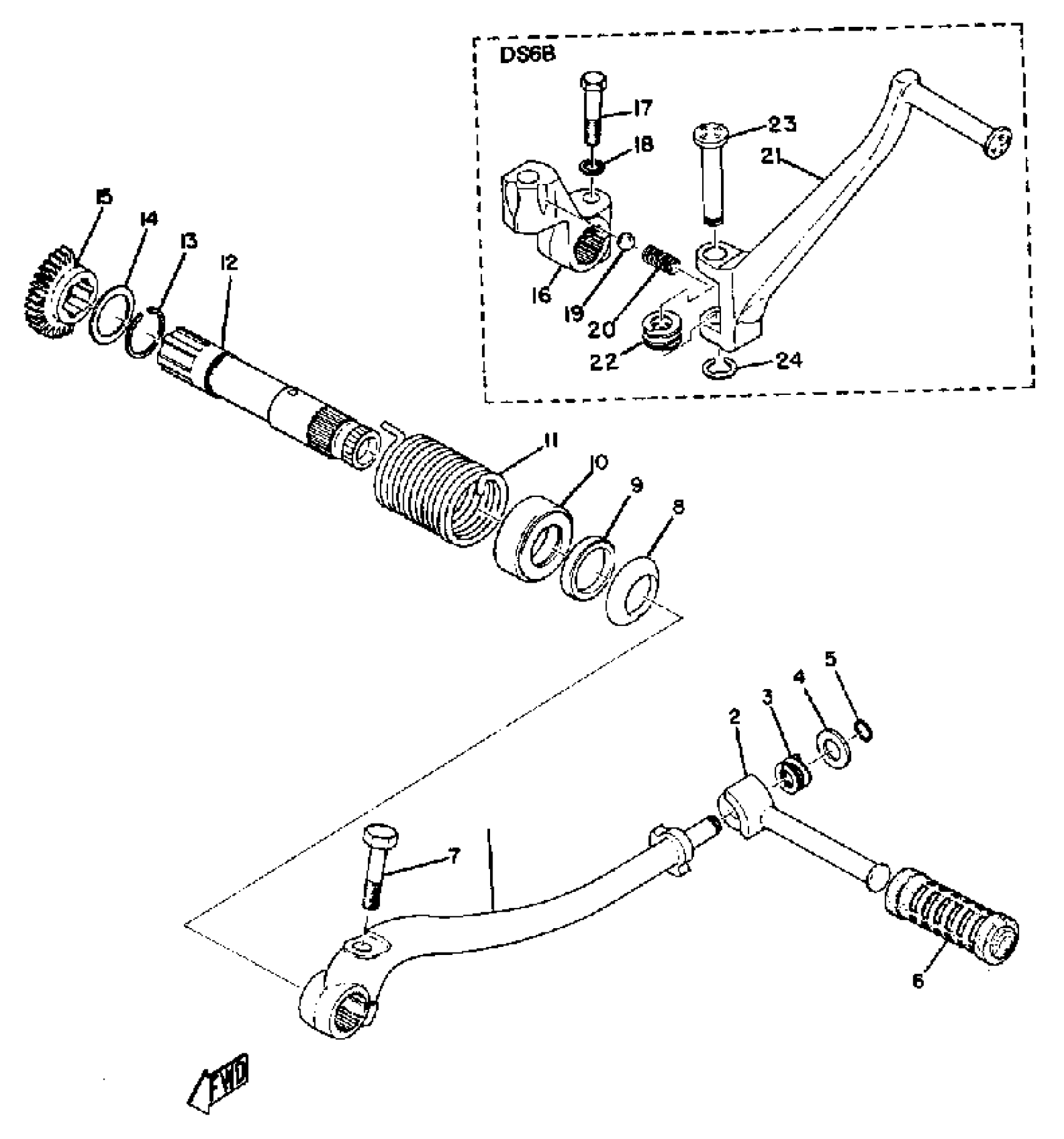

1969 Yamaha DS6C (DS6C) Kick Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK CRANK ASSEMBLY

(247-15610-00-00)

1
Out of stock

1

. UNAVAILABLE IN PRICE BOOK

(247-15611-00-00)

1
Out of stock

2

LEVER, KICK

(214-15612-09-00)

1
Out of stock

3

SPRING, COMPRESSION (5L1)

90504-18031-00

1

$7.66

In stock

4

WASHER,SPEC'L SHAPE

90209-10210-00

1
Out of stock

5

. CIRCLIP, OUTER

93440-10028-00

1
Out of stock

6

COVER, KICK LEVER

156-15618-01-00

1

$6.43

In stock

7

BOLT

97014-08040-00

1

$5.26

In stock

8

SEAL

(168-15663-00-00)

1
Out of stock

9

OIL SEAL (20X30X4.5-146)

93104-20007-00

1

$6.23

In stock

10

GUIDE, SPRING

(146-15664-00-00)

1
Out of stock

11

SPRING, TORSION

(90508-35069-00)

1
Out of stock

12

AXLE, KICK

(152-15661-00-00)

1
Out of stock

13

CIRCLIP, OUTER

(93440-20002-00)

1
Out of stock

14

WASHER, PLATE 1832514700

90201-20269-00

1
Out of stock

15

GEAR, KICK

(156-15641-00-00)

1
Out of stock

16

BOSS, KICK CRANK

(170-15621-01-00)

1
Out of stock

17

BOLT, HEXAGON

97013-08030-00

—

$3.20

In stock

18

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

19

BALL

93505-16006-00

—

$2.22

In stock

20

SPRING, COMPRESSION

(90501-15091-00)

1
Out of stock

21

CRANK, KICK

(170-15611-00-00)

1
Out of stock

22

SPRING,KICK CRANK

214-15625-00-00

1
Out of stock

23

PIN, KICK CRANK

(168-15624-00-00)

1
Out of stock

24

CIRCLIP (137)

93430-08007-00

—

$6.17

In stock
