1969 Yamaha DS6C (DS6C) Crankcase Cover Diagram

← All diagrams

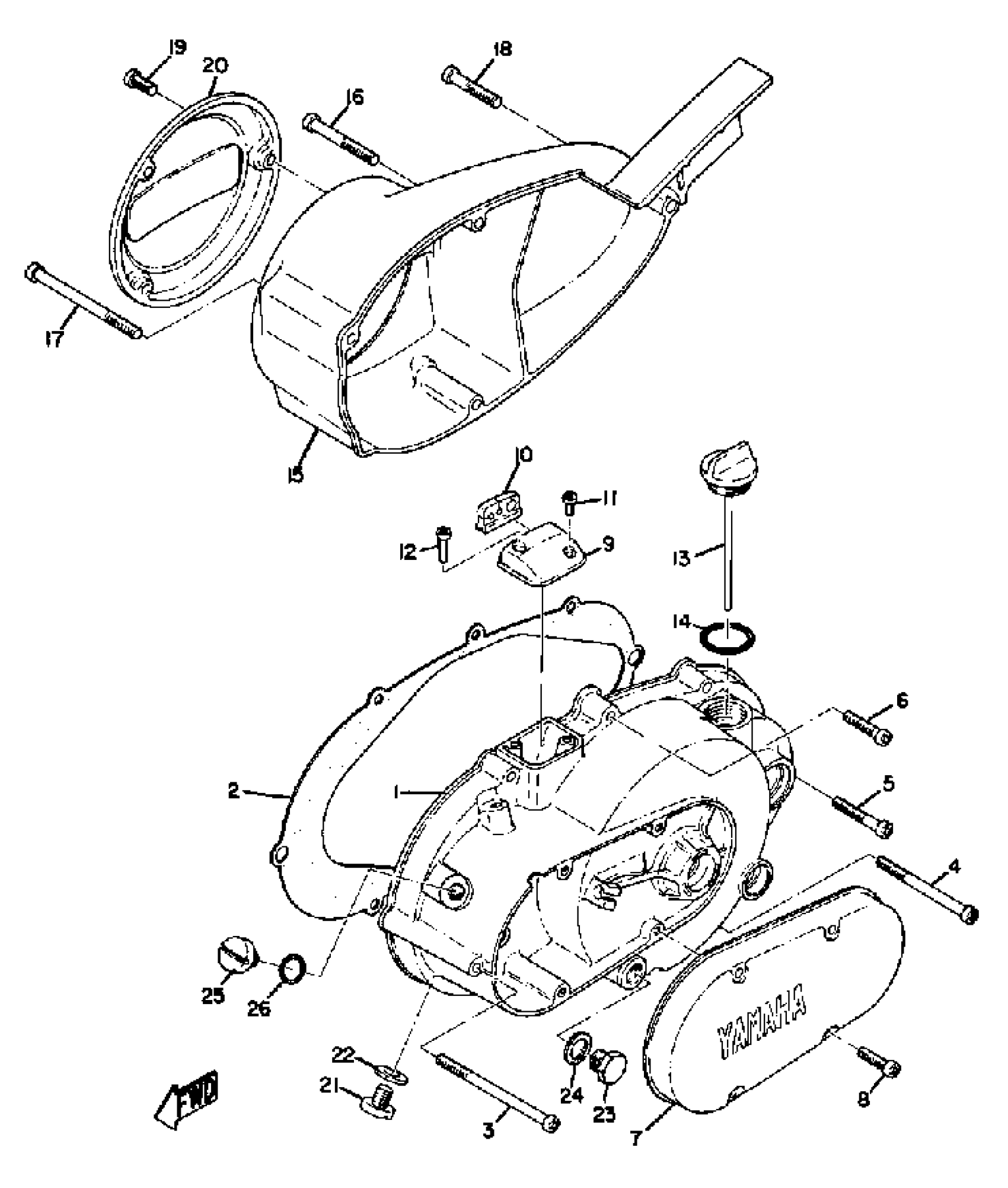

Find the part on the Crankcase Cover diagram for your 1969 Yamaha DS6C (DS6C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Yamaha DS6C (DS6C) Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CRANKCASE L

(246-15411-00-00)

1
Out of stock

1

COVER, CRANKCASE L

(247-15411-00-00)

1
Out of stock

2

GASKET, CRCS COVER

170-15451-00-00

1
Out of stock

3

SCREW, PAN HEAD

98507-06095-00

1
Out of stock

4

SCREW, PAN HEAD

98580-06580-00

1
Out of stock

5

SCREW PAN HEAD

98580-06040-00

1

$6.17

In stock

6

SCREW, PAN HEAD(6E0)

97885-06030-00

1

$4.62

In stock

7

COVER, OIL PUMP

(246-15416-00-00)

1
Out of stock

8

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

9

PROTECTOR

(170-15491-00-00)

1
Out of stock

10

SEAL, PROTECTOR

(168-15494-00-00)

1
Out of stock

11

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

12

SCREW, PAN HEAD(4MY)

98507-05018-00

1

$2.48

In stock

13

PLUG, OIL

(204-15363-01-00)

1
Out of stock

14

O-RING (137)

93210-26033-00

—

$2.57

In stock

15

COVER, CRANKCASE R

(246-15421-00-00)

1
Out of stock

16

SCREW, PANHED (GC2)

98580-06555-00

1
Out of stock

17

SCREW, PAN

98504-06090-00

—

$2.72

In stock

18

SCREW PAN HEAD

98580-06040-00

1

$6.17

In stock

19

SCREW, PAN

98507-06014-00

—

$6.18

In stock

20

COVER, GENERATOR R

(246-15425-00-00)

1
Out of stock

21

PLUG, OIL LEVEL

(146-15362-00-00)

1
Out of stock

22

GASKET

(90430-08076-00)

1
Out of stock

23

PLUG, STRAIGHT SCREW

90340-14119-00

1
Out of stock

24

WASHER, PROTECTOR

4F4-14766-00-00

—

$6.11

In stock

25

PLUG, OIL

(137-15363-00-00)

1
Out of stock

26

O-RING (137)

93210-13016-00

—

$5.78

In stock
