2000 Can-Am DS 650, 7404 Front Suspension Diagram

← All diagrams

Find the part on the Front Suspension diagram for your 2000 Can-Am DS 650, 7404, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

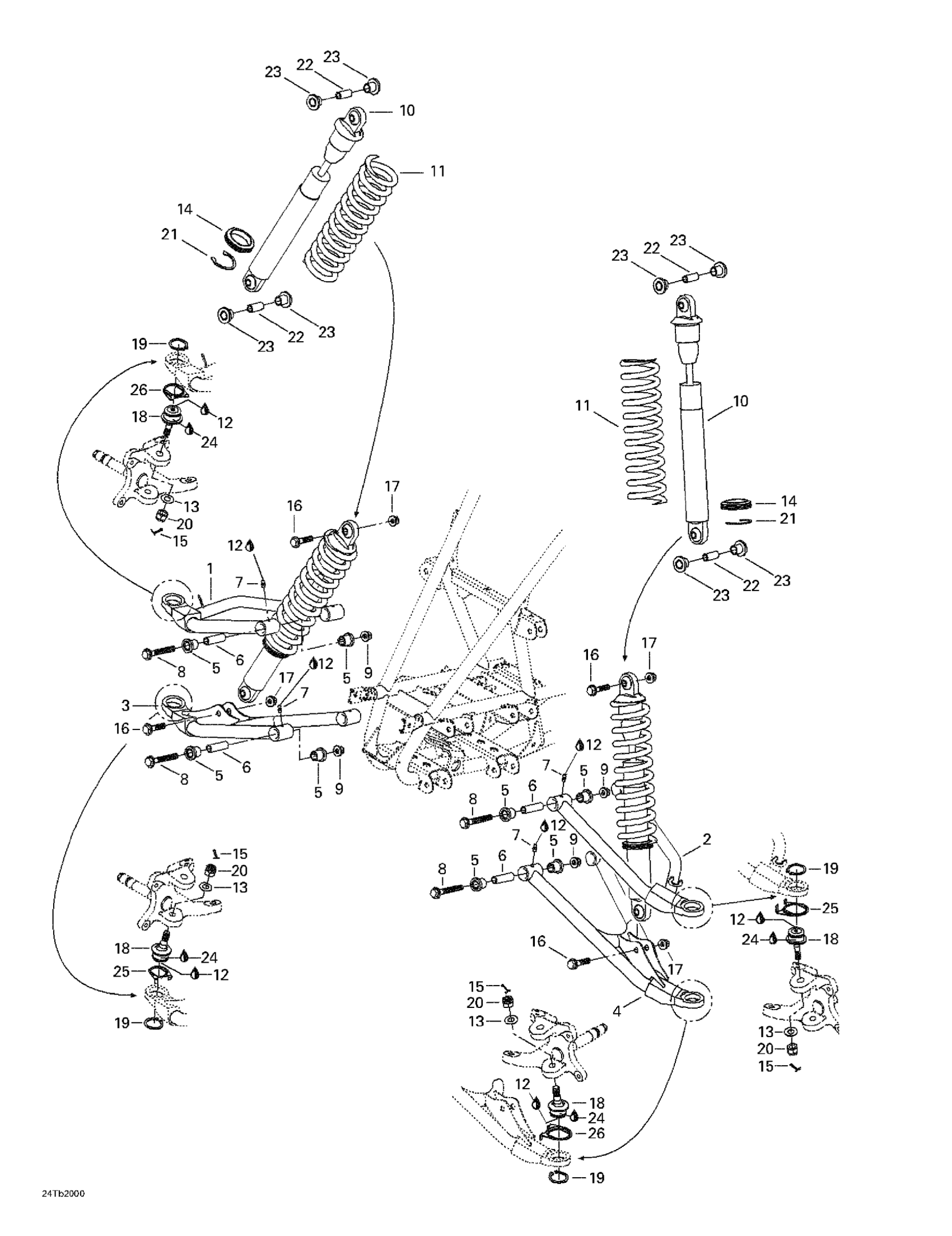

2000 Can-Am DS 650, 7404 Front Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RH Upper Arm

706200121

—
Out of stock

2

LH Upper Arm

706200122

—
Out of stock

3

RH Lower Arm

706200123

—
Out of stock

4

LH Lower Arm

706200124

—
Out of stock

5

Cushion

706200063

—
Out of stock

6

Internal Bushing

706200061

—
Out of stock

7

Grease Fitting

408200700

8
Out of stock

8

Hex. Flange Screw M10 X 75

207607546

8
Out of stock

9

8

$1.74

In stock

10

FRONT SHOCK - Call your local BRP dealership

706200081

—
Out of stock

11

Front Spring

706200082

—
Out of stock

12

Synthetic Grease, 400 G

293550010

—
Out of stock

13

Hardened Washer

503175400

—
Out of stock

14

Spring Seat

706200085

—
Out of stock

15

Cotter Pin

211400017

4

$0.25

In stock

16

Hex. Flange Screw M10 X 50

207605044

4
Out of stock

17

4

$1.26

In stock

18

Ball Joint

703500082

—
Out of stock

19

Circlip

293370017

4
Out of stock

20

4

$2.61

In stock

21

RING HOLDER - Call your local BRP dealership | DS 650

706200138

—
Out of stock

22

Bushing | DS 650

706200097

—
Out of stock

23

CUSHION - Call your local BRP dealership | DS 650

706200099

—
Out of stock

24

Loctite 609, 10 ml

413703100

1
Out of stock

25

Tab Lock (Lower RH/Upper LH)

706200142

—
Out of stock

26

TAB LOCK (LOWER LH/UPPER RH) - Call your local BRP dealership

706200141

—
Out of stock
