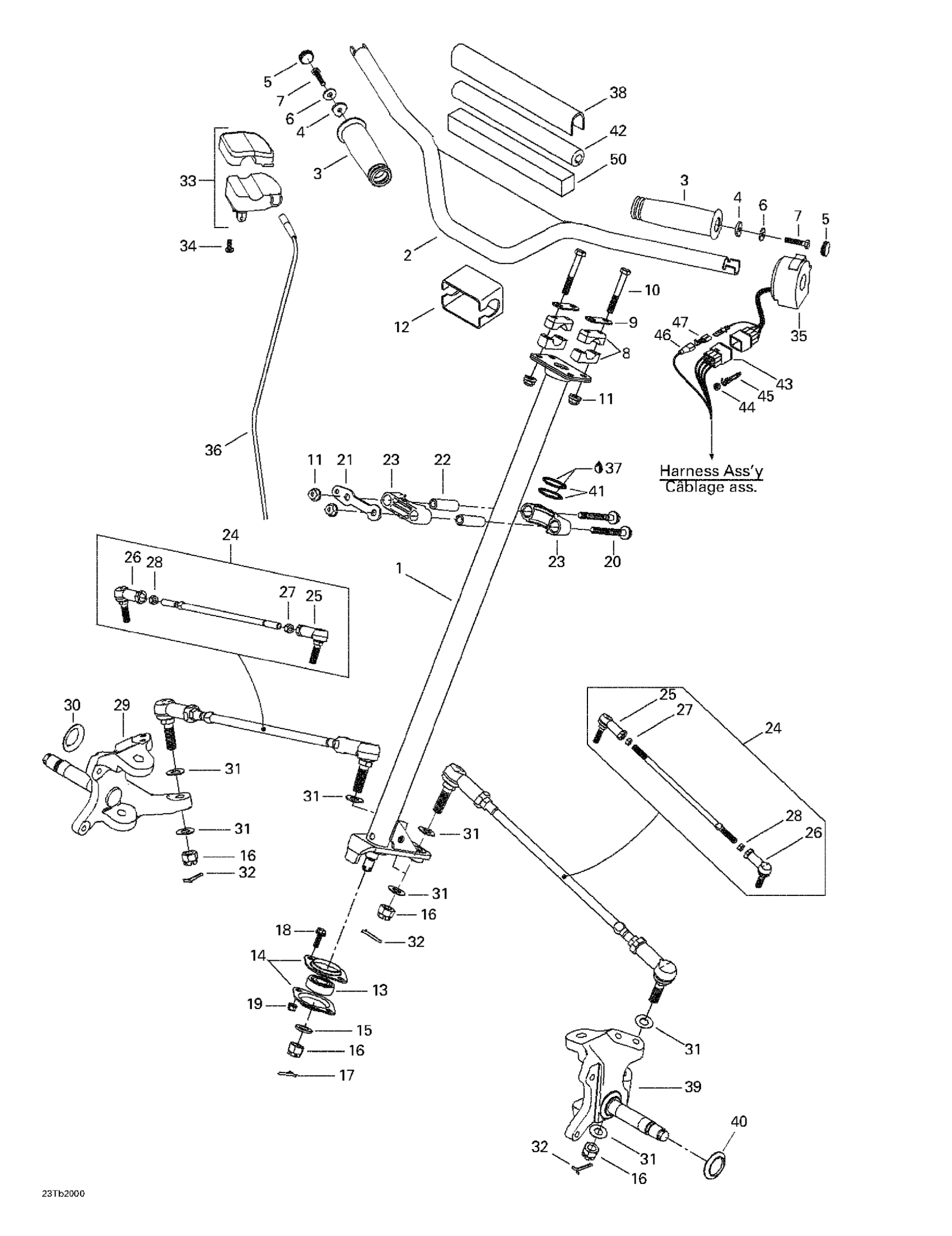

Can-Am DS 650, 7404, 2000 Steering System Diagram

#

Description
Price

1

Main Tube

709400067

Unavailable

2

Handle Bar

709400071

Unavailable

3

HANDLE GRIP KIT, BLACK - Call your local BRP dealership

295500691

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Black, Cap

277000203

$7.48

6

Flat Washer M6, Stainless

234062600

$0.64

7

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.75

8

Steering Support

709400919

$20.74

9

Stiffner

709400509

$4.43

10

HEX. SCREW M8 X 60 - Call your local BRP dealership

207086044

Unavailable

11

Hex. Flange Elastic Nut M8

233281414

$1.14

12

Cover

506151288

Unavailable

13

Ball Bearing

709400439

$18.43

14

FLANGE, BEARING - Call your local BRP dealership

709400152

Unavailable

15

Flat Washer 12 mm

234021410

$0.68

16

Hex. Castellated Nut M12

232221414

$2.61

17

Cotter Pin

211400017

$0.25

18

Hex. Flange Screw M6 X 20

207662044

$1.66

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

20

Hex. Flange Screw M8 X 75

207687544

$7.23

21

STOPPER PLATE - Call your local BRP dealership

709400053

Unavailable

22

BUSHING - Call your local BRP dealership

709400072

Unavailable

23

Half Bushing

709400471

$13.59

24

ROD-TIE ASS'Y - Call your local BRP dealership

709400489

Unavailable

25

RH Ball Joint

709402302

$35.14

26

LH Ball Joint

709402303

$35.14

27

Nut Hexagonal RH.

232026414

$1.48

28

LH HEX. JAM NUT M12 - Call your local BRP dealership

732610020

Unavailable

29

709 400 043 | .

30

Unavailable

30

WEAR RING - Call your local BRP dealership

705400056

Unavailable

31

Hardened Washer

503175400

Unavailable

32

Cotter Pin

211400013

$0.32

33

THROTTLE HANDLE - Call your local BRP dealership

709400016

Unavailable

34

Screw M5 x 30

205353046

Unavailable

35

MULTI FUNCTION SWITCH - Call your local BRP dealership

710000072

Unavailable

36

THROTTLE CABLE - Call your local BRP dealership

709400048

Unavailable

37

Synthetic Grease, 400 G

293550010

Unavailable

38

Steering Cover

709400059

Unavailable

39

LH Knuckle | Includes 39 - 40.

709400044

Unavailable

40

WEAR RING - Call your local BRP dealership

705400056

Unavailable

41

O-Ring

293300068

$5.29

42

Steering Cover Foam

709400087

Unavailable

43

Female Housing, 6 Circuits

710000081

$8.29

44

Seal

409012300

$4.38

45

Female Terminal

409012100

$3.73

46

Insulated Sheath

278000770

$7.60

47

Female Terminal | DS 650 X

278001009

$2.55

48

Insulated Sheath

278001008

$3.20

49

Male Terminal

278000230

$3.48

50

FOAM INSERT - Call your local BRP dealership

709400094

Unavailable

51

Loctite 243, 10 ml

293800060

$20.77
