1995 Suzuki DR650SES Front Brake Hose Diagram

← All diagrams

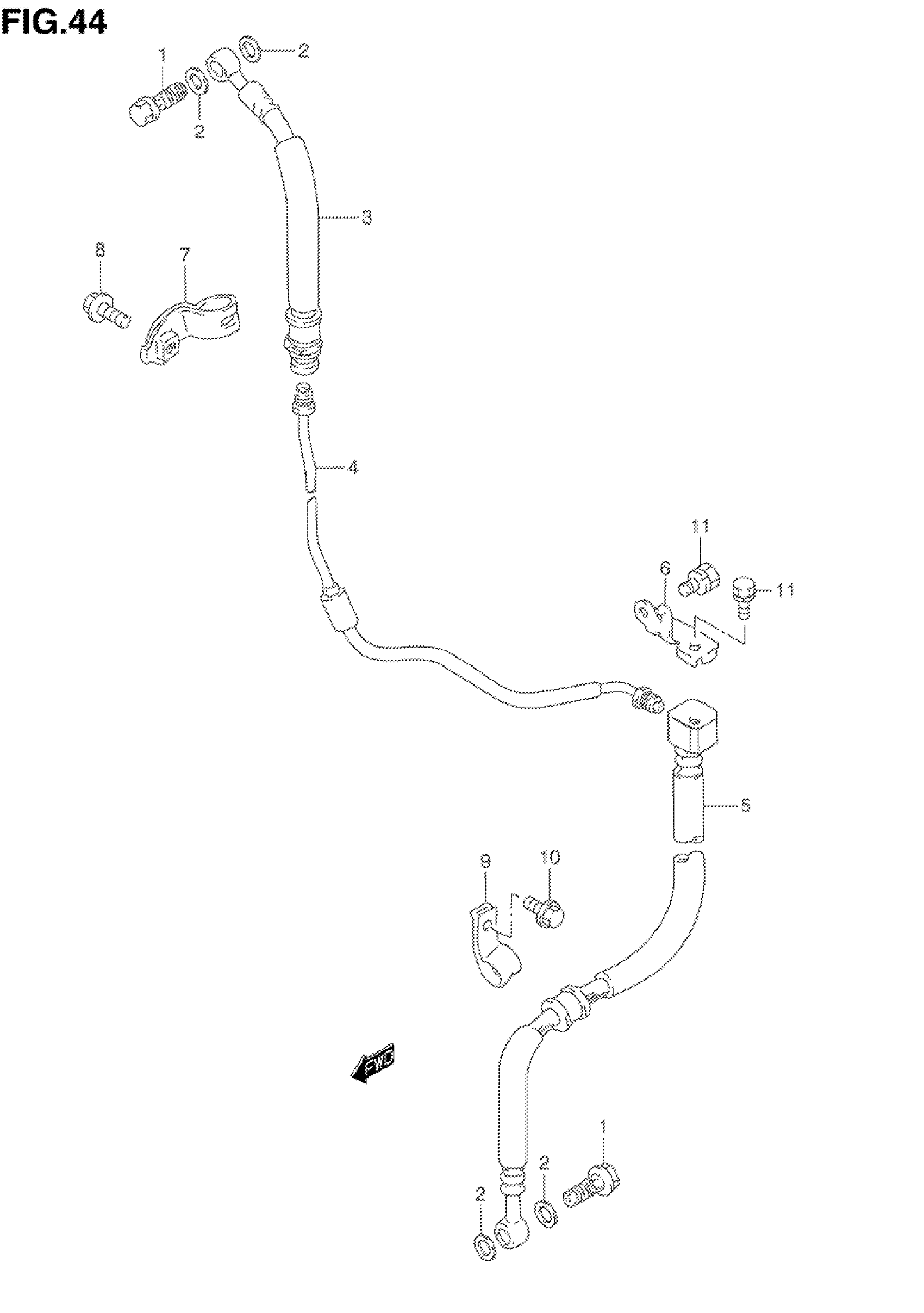

Find the part on the Front Brake Hose diagram for your 1995 Suzuki DR650SES, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Suzuki DR650SES Front Brake Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT (10X1.00X24) | MODEL N/P

09360-10017

2
Out of stock

1

2

$6.33

In stock

2

WASHER (10X15X1.5)

09161-10009

4
Out of stock

3

HOSE, FRONT BRAKE NO.1

59480-12E00

1
Out of stock

4

PIPE, FRONT BRAKE

59250-12E01

1
Out of stock

5

HOSE, FRONT BRAKE NO.2

59240-12E00

1
Out of stock

6

BRACKET, BRAKE HOSE NO.2

59243-12D00

1
Out of stock

7

CLAMP, BRAKE HOSE NO.1

59460-12E00

1
Out of stock

8

BOLT, CLAMP | MODEL N/P This part replaces 01517-06125.

01550-0612A

1
Out of stock

8

BOLT, CLAMP | MODEL R/S This part replaces 01550-06123.

01550-0612A

1
Out of stock

9

CLAMP, BRAKE HOSE NO.2

59268-12D00

1
Out of stock

10

BOLT, CLAMP NO.2

01547-06127

1
Out of stock

11

BOLT | MODEL N/P This part replaces 01137-06105.

01570-0610A

2
Out of stock

11

BOLT | MODEL R/S This part replaces 01570-06103.

01570-0610A

2
Out of stock
