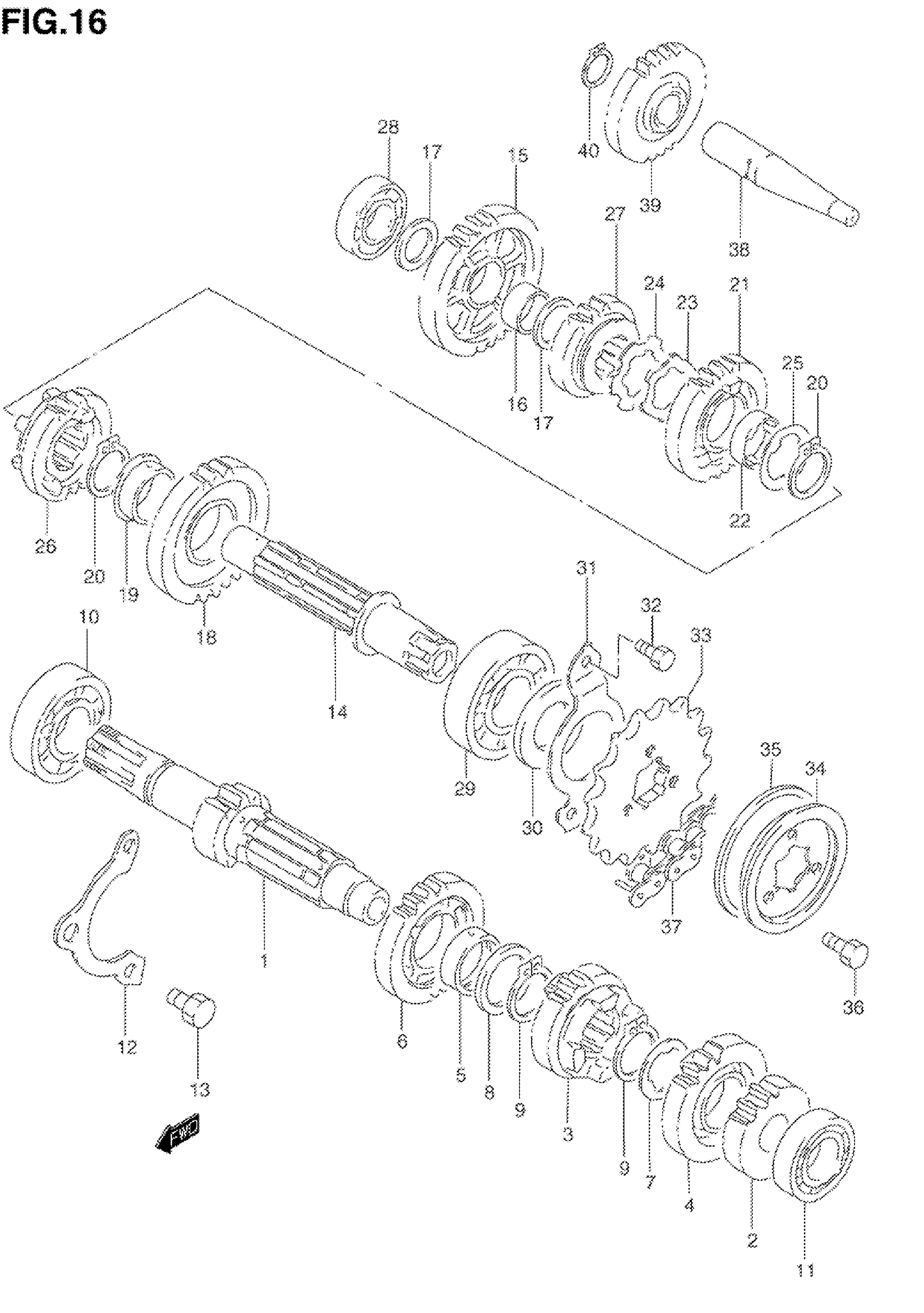

Suzuki DR650SES (1995) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT (NT:12)

24121-14A00

Unavailable

2

GEAR, 2ND DRIVE This part replaces 24221-14A00.

24221-14A10

$130.03

3

GEAR, 3RD DRIVE (NT:19)

24231-12D02

Unavailable

4

GEAR, 4TH DRIVE This part replaces 24241-14A00.

24241-14A10

$130.03

5

BUSH, 4TH DRIVE GEAR This part replaces 09300-25023.

24252-19F00

$19.32

6

GEAR, 5TH DRIVE (NT:23)

24251-14A00

Unavailable

7

WASHER LOCK (25.1X31X1.0)

09167-25012

$4.02

8

WASHER, 5TH DRIVE This part replaces 08211-25341.

09181-25167

$2.85

9

SNAP RING

09380-25003

$2.80

10

BEARING (22X56X16) This part replaces 09262-22014.

09262-22028

$69.91

11

BEARING (17X40X12) | MODEL N This part replaces 09262-17018.

09262-17027

$37.62

11

BEARING, LH | MODEL P

09262-17027

$37.62

11

BEARING (17X40X12) | MODEL R/S This part replaces 09262-17018.

09262-17027

$37.62

12

RETAINER,CNTR SHAFT BRG

24741-14A00

$10.35

13

PLUG, DRAIN | MODEL N/P This part replaces 01107-08166.

01500-0816B

$2.50

13

PLUG, DRAIN | MODEL R/S This part replaces 01500-08163.

01500-0816B

$2.50

14

DRIVESHAFT

24131-14A00

Unavailable

15

GEAR, 1ST DRIVEN (NT:29)

24311-14A01

$127.13

16

BUSH

09300-20032

$19.02

17

WASHER

08211-20301

$2.97

18

GEAR, 2ND DRIVEN (NT:26)

24321-14A00

Unavailable

19

BUSH

09301-25002

$19.93

20

SNAP RING

09380-25003

$2.80

21

GEAR, 3RD DRIVEN (NT:24)

24331-14A05

Unavailable

22

BUSH, 3RD DRIVEN GEAR This part replaces 24332-24500.

24332-24510

$21.07

23

WASHER

09169-25001

$2.95

24

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.58

25

WASHER

09167-25016

$4.03

26

GEAR, 4TH DRIVEN This part replaces 24341-14A01.

24341-14A10

$127.63

27

GEAR, 5TH DRIVEN This part replaces 24351-14A00.

24351-14A10

$125.27

28

BEARING, RH

09262-20059

$27.83

29

BEARING, LH

09262-25066

Unavailable

30

SEAL,OIL (25X45X5)

09283-25076

$9.33

31

HOLDER, OIL SEAL

24751-14A01

Unavailable

32

BOLT | MODEL N/P This part replaces 01107-06126.

01500-0612A

$1.80

32

BOLT | MODEL R/S This part replaces 01500-06123.

01500-0612A

$1.80

33

SPROCKET (NT:16)

27511-14A01

Unavailable

34

PLATE (YELLOW) | MODEL N/P This part replaces 27512-12D10.

27512-14A11

Unavailable

34

PLATE (YELLOW) | MODEL R/S

27512-14A11

Unavailable

35

DAMPER

27517-14A00

Unavailable

36

BOLT

09111-06039

$5.43

37

CHAIN ASSY,DRIV | MODEL N/P/R This part replaces 27600-13A60-114.

27600-14A20-114

$174.65

37

CHAIN ASSY,DRIV | MODEL S This part replaces 27600-14A10-114.

27600-14A20-114

$174.65

38

SHAFT, IDLE

26223-14A01

Unavailable

39

GEAR, STARTER IDLE (NT:24)

26260-37400

Unavailable

40

CIRCLIP

09380-17001

$1.90
