1995 Suzuki DR650SES Stand - Rear Brake Diagram

← All diagrams

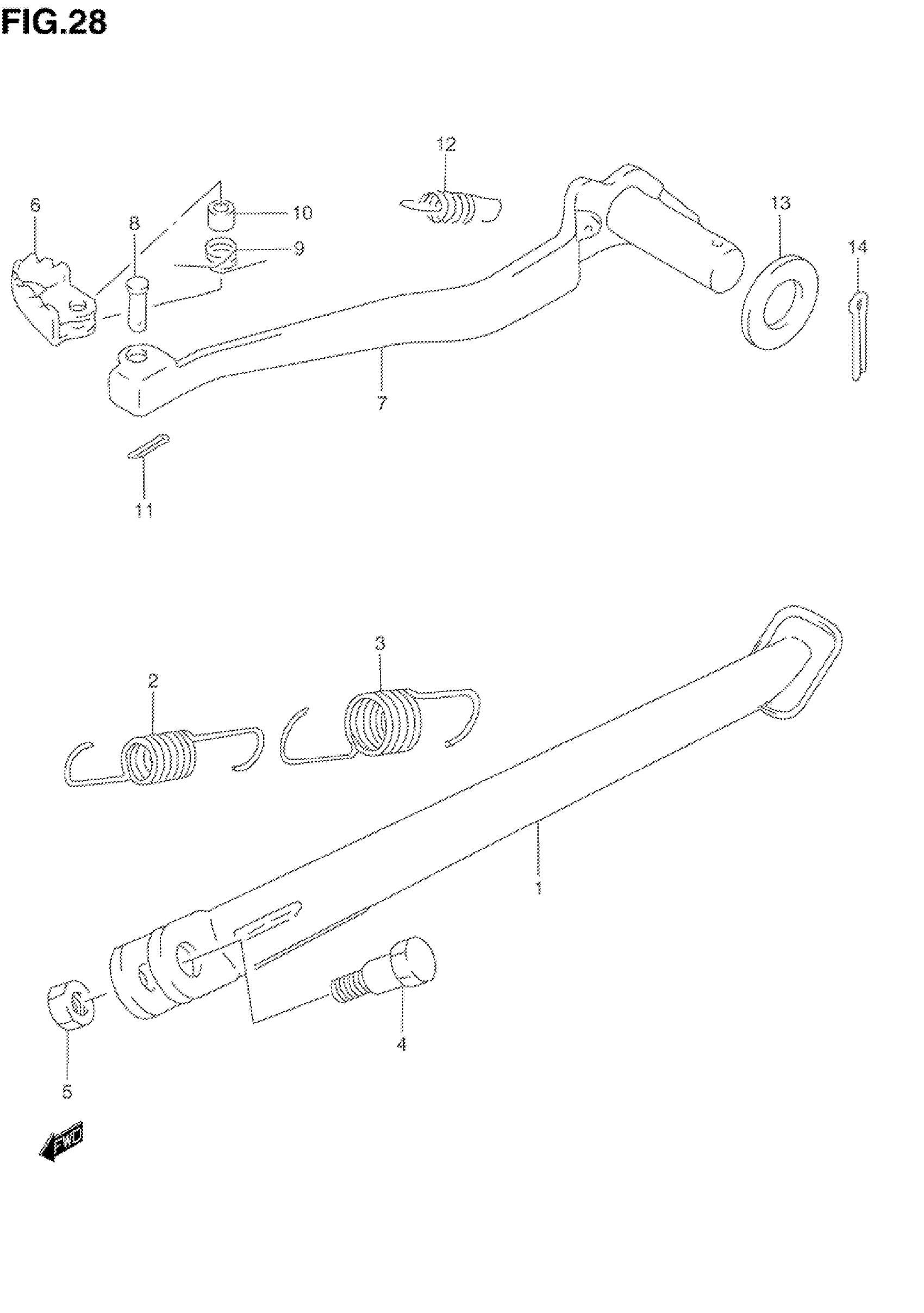

Find the part on the Stand - Rear Brake diagram for your 1995 Suzuki DR650SES, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Suzuki DR650SES Stand - Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, PROP (BLACK)

42310-12E00-019

1
Out of stock

2

SPRING This part replaces 09443-14030.

09443-14030-XC0

1
Out of stock

3

SPRING, OUTER

09443-22003

1
Out of stock

4

BOLT

09111-10047

1
Out of stock

5

NUT | MODEL N/P This part replaces 08310-22105.

09140-10043

1
Out of stock

5

NUT | MODEL R/S

09159-10097

1
Out of stock

6

PEDAL, BRAKE

43110-14130

1
Out of stock

7

ARM, PEDAL

43120-12D00

1
Out of stock

8

PIN

09200-06038

1
Out of stock

9

SPRING | MODEL N/P This part replaces 09444-11004.

09444-11005

1
Out of stock

9

SPRING | MODEL R/S

09444-11005

1
Out of stock

10

SPACER | MODEL N/P

09180-06137

1
Out of stock

10

SPACER | MODEL R/S This part replaces 09180-06165.

09180-06257

1
Out of stock

11

.COTTER PIN This part replaces 04111-20158.

04111-2015A

1
Out of stock

12

SPRING, RETURN

09443-10033

1
Out of stock

13

WASHER,17.5X34X | MODEL N/P This part replaces 09160-17021.

09160-17501-XC0

1
Out of stock

13

WASHER,17.5X34X | MODEL R/S This part replaces 09160-17501.

09160-17501-XC0

1
Out of stock

14

PIN This part replaces 04111-30308.

04111-3030A

1
Out of stock
