1995 Suzuki DR650SES Rear Caliper Diagram

← All diagrams

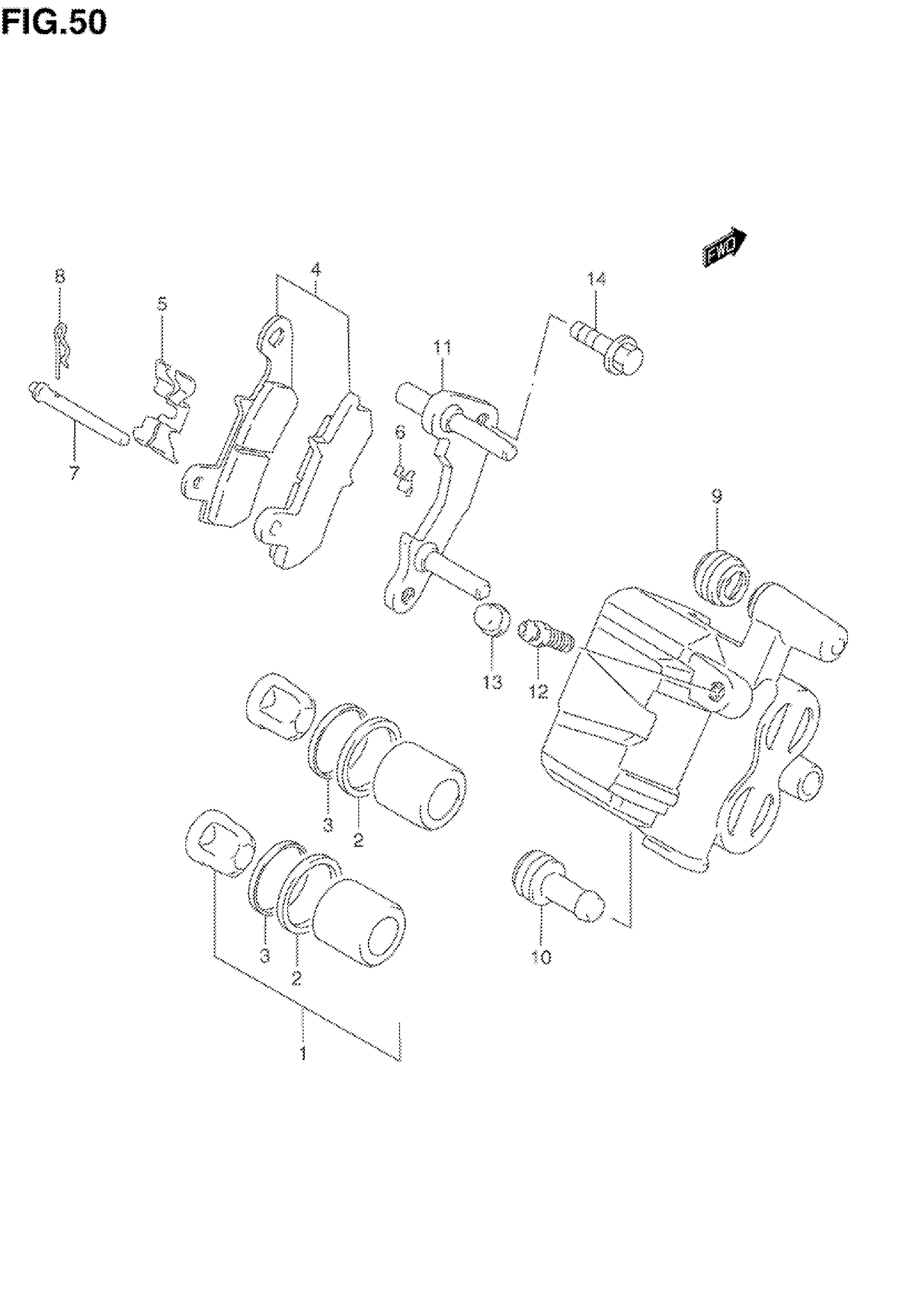

Find the part on the Rear Caliper diagram for your 1995 Suzuki DR650SES, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Suzuki DR650SES Rear Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

CALIPER ASSY, REAR | Includes Item(s) 1 - 13

69100-12D01

1
Out of stock

1

PISTON SET This part replaces 69100-44850.

69100-44851

1
Out of stock

2

SEAL,PISTON This part replaces 59107-04A00.

59107-40F00

2
Out of stock

3

SEAL, WIPER

59108-04A00

2
Out of stock

4

PAD SET

69100-12810

1
Out of stock

5

SPRING

69115-44B00

1
Out of stock

6

GUIDE, PAD

69116-44B00

1
Out of stock

7

.PIN, PAD This part replaces 69141-44B01.

69141-44B02

1
Out of stock

8

.CLIP, PAD PIN

69142-45000

1
Out of stock

9

.BOOT, AXLE

59312-36500

1
Out of stock

10

.INSULATOR, AXLE

59313-36500

1
Out of stock

11

BRACKET

69150-44B00

1
Out of stock

12

BLEEDER

59121-18410

1
Out of stock

13

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

1
Out of stock

14

BOLT (8X22)

09103-08259

2
Out of stock
