2005 Suzuki DR650SE Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 2005 Suzuki DR650SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

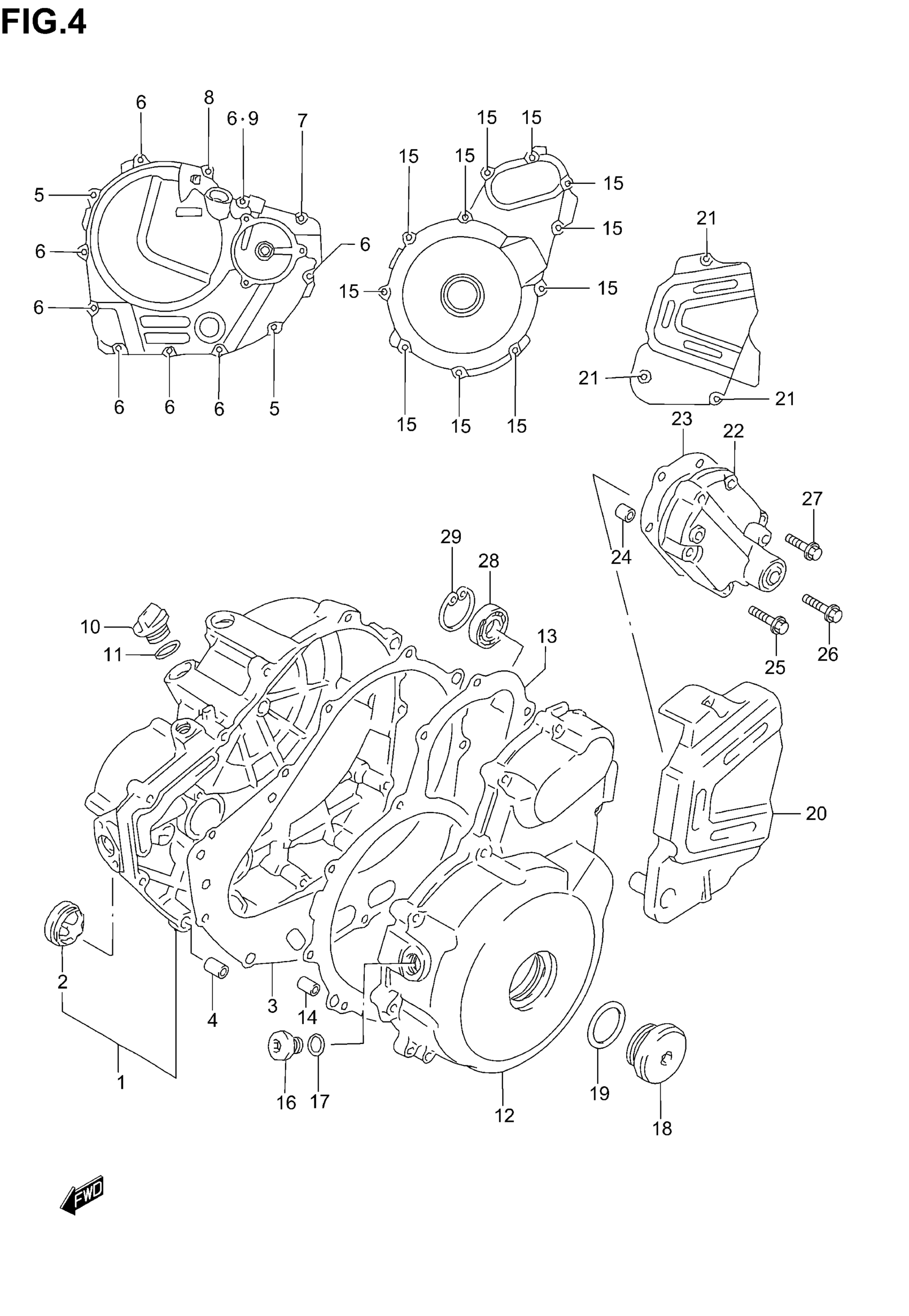

2005 Suzuki DR650SE Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$375.68

In stock

2

LENS, OIL LEVEL

11971-33210

1

$18.15

In stock

3

GASKET, CLUTCH COVER

11482-32E00

1

$21.02

In stock

4

PIN

04211-09149

2
Out of stock

5

BOLT (6X45) | MODEL K1/K2/K3/K4

01547-06457

2
Out of stock

5

2

$2.89

In stock

6

BOLT (6X35) | MODEL K1/K2/K3/K4

01547-06357

8
Out of stock

6

8

$2.70

In stock

7

1

$2.22

In stock

7

BOLT (L:30) | MODEL K5

09103-06213

1
Out of stock

8

BOLT (6X25) | MODEL K1/K2/K3/K4

01547-06257

1
Out of stock

8

1

$2.64

In stock

9

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

10

PLUG, OIL FILLER

09259-20019

1

$11.38

In stock

11

O RING (D:3.1 ID:16.8)

09280-17003

1
Out of stock

12

COVER,MAGNETO

11351-32E01

1

$304.95

In stock

13

GASKET

11483-32E00

1

$18.44

In stock

14

PIN

04211-09149

1
Out of stock

15

11

$2.22

In stock

15

BOLT (L:30) | MODEL K5

09103-06213

11
Out of stock

16

PLUG, SHAFT | MODEL K1 This part replaces 09248-14005.

09248-14011

1
Out of stock

16

PLUG, T,D,C | MODEL K2/K3/K4/K5

09248-14011

1
Out of stock

17

GASKET

09168-14002

1
Out of stock

18

PLUG

09259-36016-20H

1

$13.37

In stock

19

.O-RING (D:3.1,ID:32.7)

09280-33004

1
Out of stock

20

COVER,ENG SPROCKET

11361-32E00

1

$102.83

In stock

21

BOLT (6X35) | MODEL K1/K2/K3/K4

01547-06357

3
Out of stock

21

3

$2.70

In stock

22

COVER,GEAR SHF

11371-12D30

1

$98.00

In stock

23

GASKET

11485-12D01

1

$5.81

In stock

24

PIN

04211-09149

2
Out of stock

25

1

$2.92

In stock

26

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

4
Out of stock

27

..BOLT This part replaces 01547-06203.

01547-0620B

1
Out of stock

28

1

$18.14

In stock

29

1

$2.92

In stock
