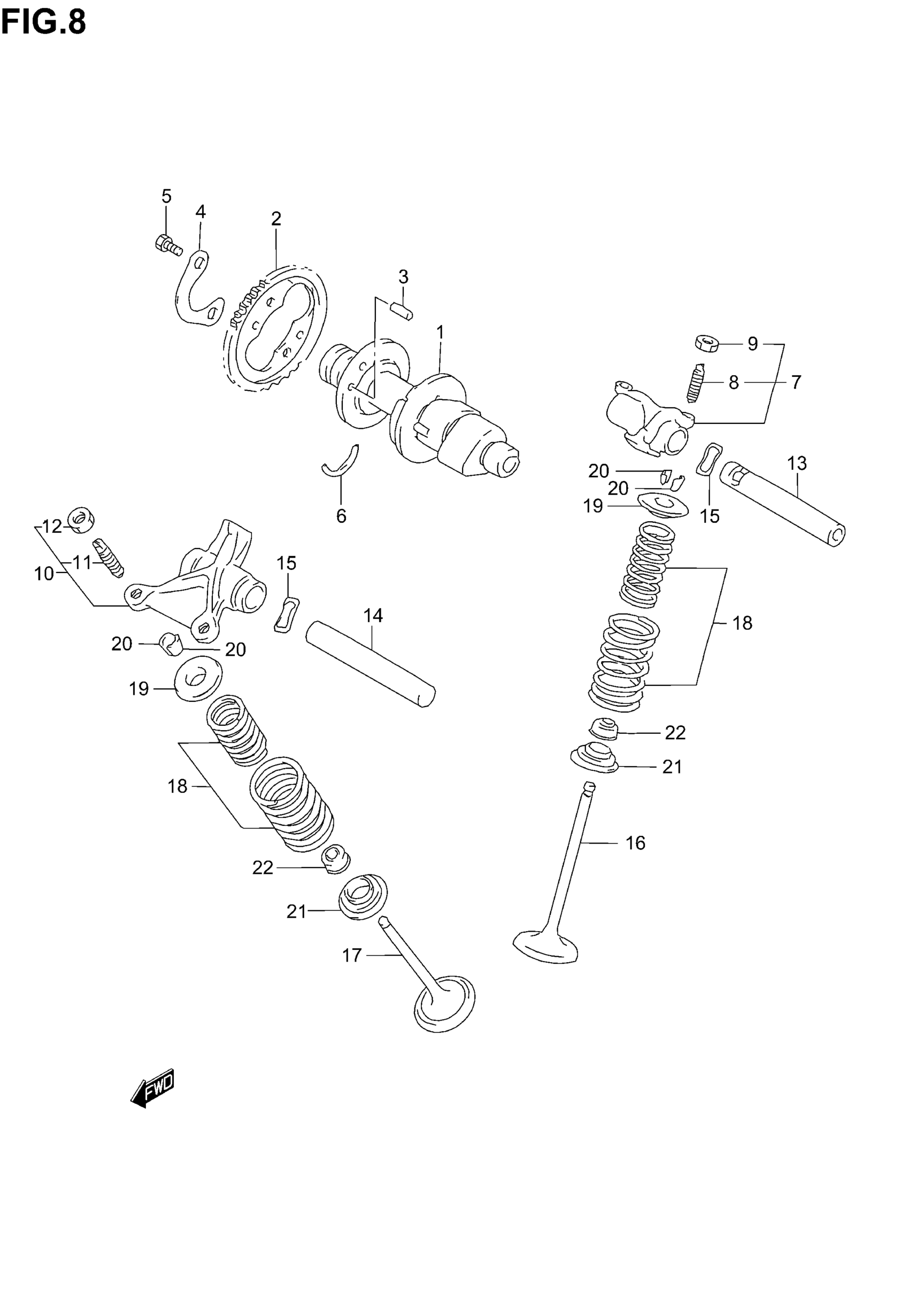

Suzuki DR650SE (2005) CAM SHAFT - VALVE Diagram

#

Description
Price

1

CAMSHAFT

12710-32E01

$494.63

2

SPROCKET (NT:38)

12741-32E00

$57.75

3

PIN

09261-05005

$1.43

4

WASHER,SPROCKET

12747-44B00

$2.80

5

BOLT (6X10.5)

09111-06032

$2.12

6

C-RING

09390-22002

$2.33

7

ARM,VALVE ROCKER,IN | Includes Item(s) 8 - 9

12840-32E00

$112.88

8

SCREW

12842-38A00

$6.95

9

.NUT, ADJUSTING SCREW

12843-32400

$2.80

10

ARM,VALVE ROCKER,EX | Includes Item(s) 11 - 12

12850-32E00

$112.88

11

SCREW

12842-38A00

$6.95

12

.NUT, ADJUSTING SCREW

12843-32400

$2.80

13

SHAFT,VALVE ROCKER ARM,IN

12861-14D50

$34.90

14

SHAFT, ROCKER ARM EX

12871-14D50

$31.90

15

WASHER

09164-12018

$1.41

16

VALVE, INTAKE

12911-19B00

$37.16

17

VALVE, EXHAUST

12912-42A00

$59.75

18

SPRING SET, VALVE

12920-32E00

$19.03

19

RETAINER, SPRING This part replaces 12931-33200.

12931-33201

$9.35

20

COTTER, VALVE

12932-24400

$1.98

21

SEAT,VALVE SPRING

12933-81400

$4.86

22

OIL SEAL (5.5X11X8.2)

09289-05015

$6.04
