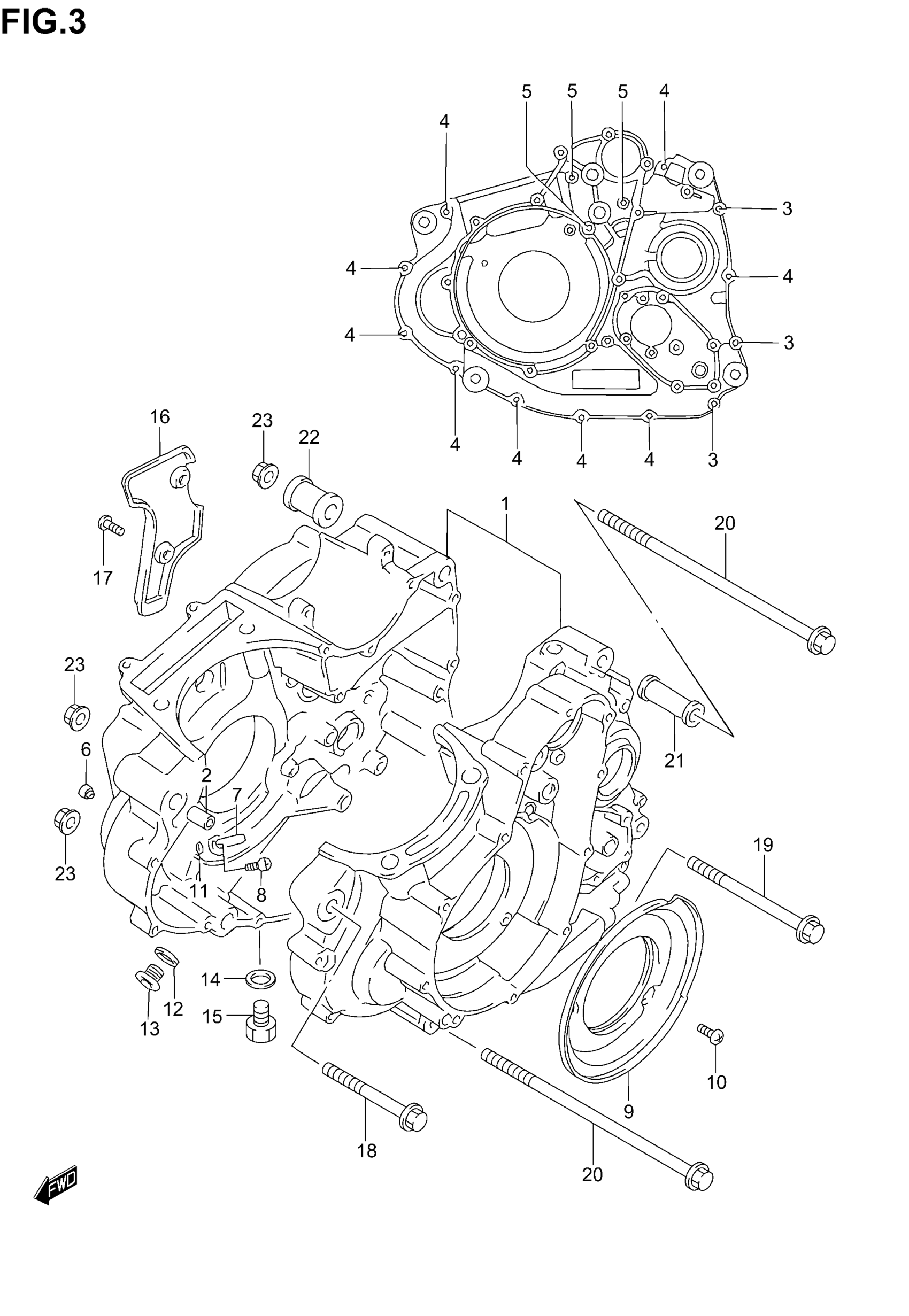

Suzuki DR650SE (2005) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | MODEL K1 This part replaces 11300-32861.

11300-32863

Unavailable

1

CRANKCASE SET | MODEL K2/K3 This part replaces 11300-32862.

11300-32863

Unavailable

1

CRANKCASE SET | MODEL K4

11300-32870

Unavailable

1

CRANKCASE SET | MODEL K5; Includes Item(s) 2 - 6 This part replaces 11300-32880.

11300-32882

$1,128.62

2

PIN

09202-10006

Unavailable

3

BOLT (6X60) | MODEL K1/K2/K3/K4

01547-06607

$3.47

3

BOLT (L:60) | MODEL K5

09103-06261

$2.90

4

BOLT (6X40) | MODEL K1/K2/K3/K4

01547-06407

$2.34

4

BOLT (L:40) | MODEL K5

09103-06215

$2.80

5

BOLT This part replaces 01547-06803.

01547-0680B

$2.92

6

JET, OIL GALLERY

11180-43410

Unavailable

7

JET,PISTON COOLING

11390-04F00

$26.03

8

BOLT (6X12)

09106-06075

$2.50

9

SEPARATOR,CRANKCASE OIL

11323-32E00

$16.45

10

SCREW This part replaces 02112-06123.

02112-0612A

$1.43

11

O RING (D:1.2 ID:4.0)

09280-04004

$1.76

12

GASKET, OIL GALLERY PLUG

09168-14002

$2.83

13

PLUG, SHAFT | MODEL K1 This part replaces 09248-14005.

09248-14011

$2.80

13

PLUG, OIL GALLERY | MODEL K2/K3/K4/K5

09248-14011

$2.80

14

GASKET, OIL DRAIN PLUG

09168-14002

$2.83

15

PLUG, OIL DRAIN

09247-14026

$3.38

16

COVER,BREATHER

11317-32E00

$15.83

17

SCREW This part replaces 02112-06123.

02112-0612A

$1.43

18

BOLT (10X100)

09103-10110

$9.15

19

BOLT (10X130)

09103-10237

$10.53

20

BOLT (10X235)

09103-10239

$22.70

21

SPACER (L:65)

11610-45410

Unavailable

22

SPACER (L:27)

11610-20C00

$17.40

23

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.21
