2000 Suzuki DR650SE Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2000 Suzuki DR650SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

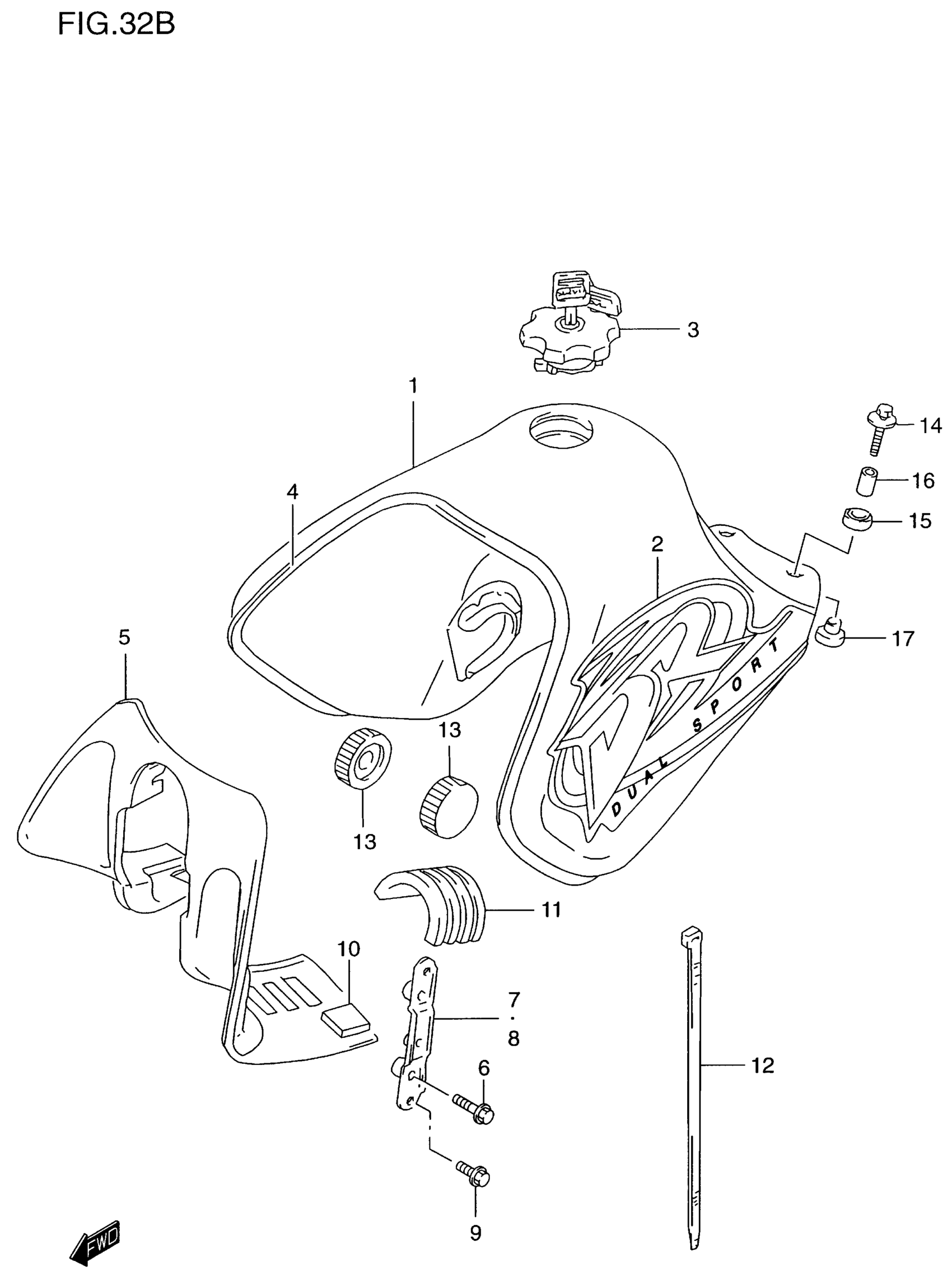

2000 Suzuki DR650SE Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK ASSY, FUEL (SILVER) | FOR J5F This part replaces 44100-32E80-Y2D.

44100-32E80-YD8

1
Out of stock

1

TANK ASSY, FUEL (BLUE) | FOR N9J

44100-32E80-YC2

1
Out of stock

1

TANK ASSY, FUEL (SILVER) | E33 FOR J5F

44100-32E90-Y2D

—
Out of stock

1

TANK ASSY, FUEL (BLUE) | E33 FOR N9J; Includes Item(s) 2 - 2

44100-32E90-YC2

1
Out of stock

2

TAPE SET, FUEL TANK | FOR Y2D

68110-32E40-AZ2

—
Out of stock

2

TAPE SET, FUEL TANK | FOR YC2

68110-32E40-AZ3

1
Out of stock

3

CAP SET,FUEL TA This part replaces 44200-13830.

44200-13831

1
Out of stock

3

CAP SET,FUEL TA | E33 This part replaces 44200-05820.

44200-05822

1
Out of stock

4

MOLDING,FUEL TANK

68241-32E00

1
Out of stock

5

COVER,FUEL TANK,FRONT

44271-32E00

1
Out of stock

6

BOLT,6X14 This part replaces 09116-06098.

09116-06098-XC0

4
Out of stock

7

BRACKET, FRONT COVER RH

44280-32E00

1
Out of stock

8

BRACKET, FRONT COVER LH

44290-32E00

1
Out of stock

9

BOLT This part replaces 01550-06253.

01550-0625A

4
Out of stock

10

CUSHION This part replaces 51827-12E00.

51827-01A00

2
Out of stock

11

CUSHION, UPPER REAR

44541-13E00

1
Out of stock

12

CLAMP

09407-25402

1
Out of stock

13

CUSHION,FUEL TANK,FRONT

44511-12D00

2
Out of stock

14

BOLT, REAR

09116-06172

2
Out of stock

15

CUSHION, UPPER

09320-14022

2
Out of stock

16

SPACER

09180-06271

2
Out of stock

17

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

2
Out of stock
